Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel (MTX). (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  2. Remove the drive plate (ATX). (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.
    Fig 1: Removing/Installing Rear Oil Seal (Legend)
    G00973778Courtesy of MAZDA MOTORS CORP.

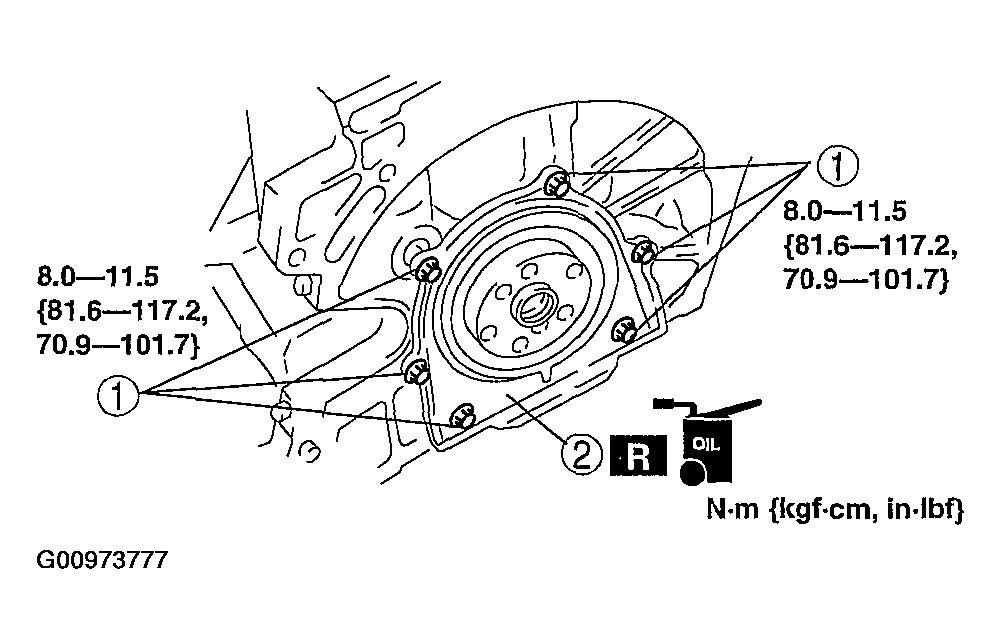

    Fig 2: Rear Oil Seal Housing With Torque Specifications
    G00973777Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
