Oil Control Valve (OCV) Removal/Installation [L3]
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the following parts:
- Plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION .)
- Oil Control Valve (OCV) connector.
- Ventilation hose.
- Cylinder head cover. (See CYLINDER HEAD COVER INSTALLATION NOTE .)

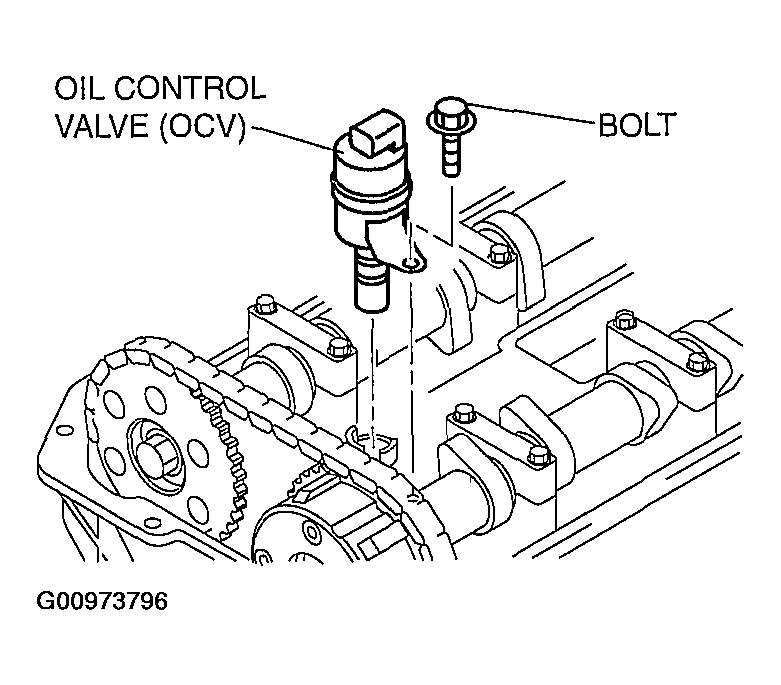

- Oil Control Valve (OCV).
- Install in the reverse order of removal.
Tightening Torque
8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf}
