Front Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove the plug hole plate bracket.
  3. Remove the battery cover.
  4. Disconnect the negative battery cable.
  5. Disconnect the wiring harness.
  6. Remove the following parts:
    1. Ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION .)
    2. Cylinder head cover. (See CYLINDER HEAD COVER INSTALLATION NOTE .)
    3. Drive belt. (See DRIVE BELT REPLACEMENT .)
    4. Front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION SYSTEM) .)
    5. Under cover and splash shield.
    6. Crankshaft Position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in the figure.

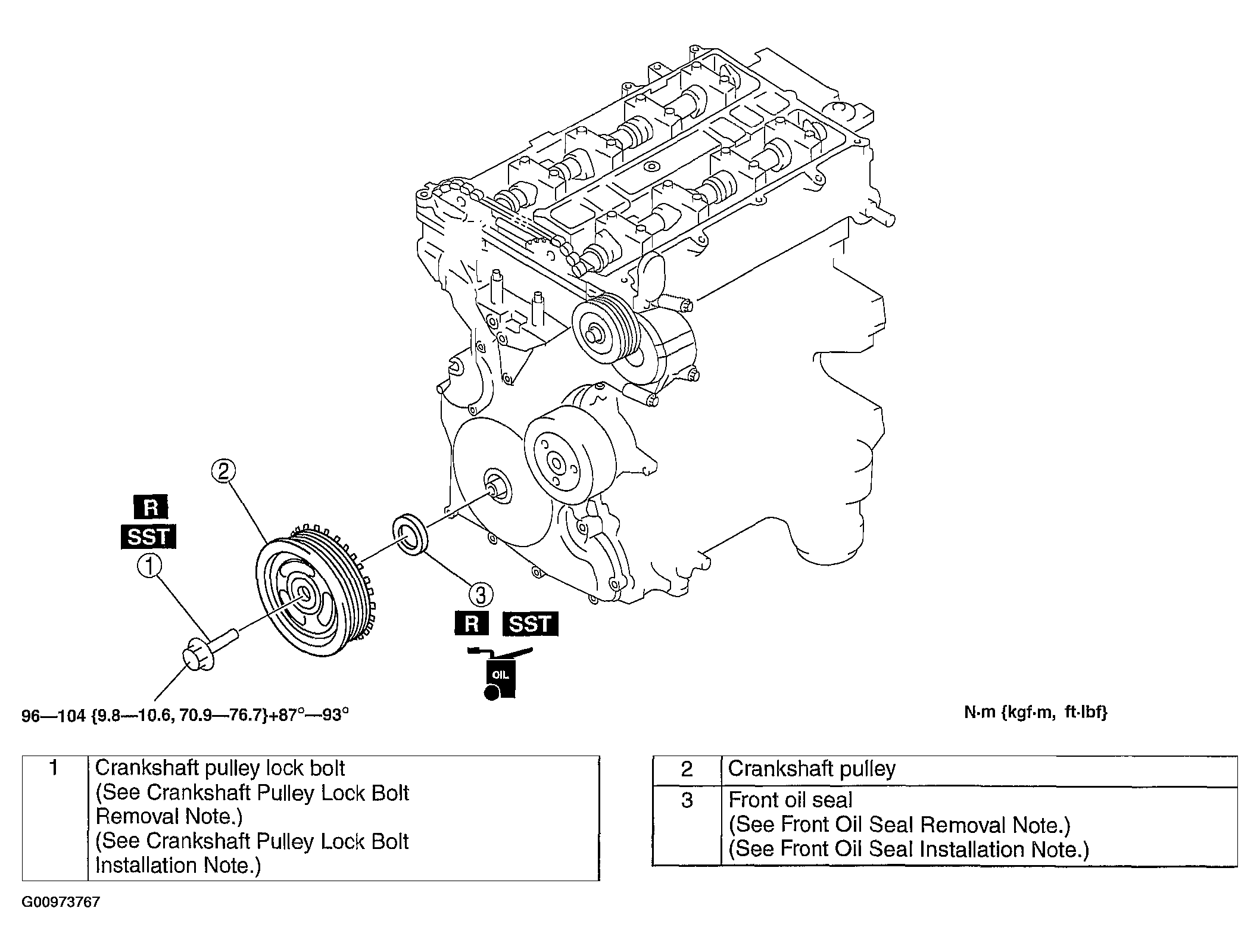

    Fig 1: Crankshaft Pulley And Front Oil Seal With Torque Specifications
    G00973767Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
