Idle Speed Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Idle speed is not adjustable.
Idle speed verification requires WDS or equivalent.

Verify that the idle speed (WDS: RPM PID) is within the specification using WDS or equivalent.
Idle Speed

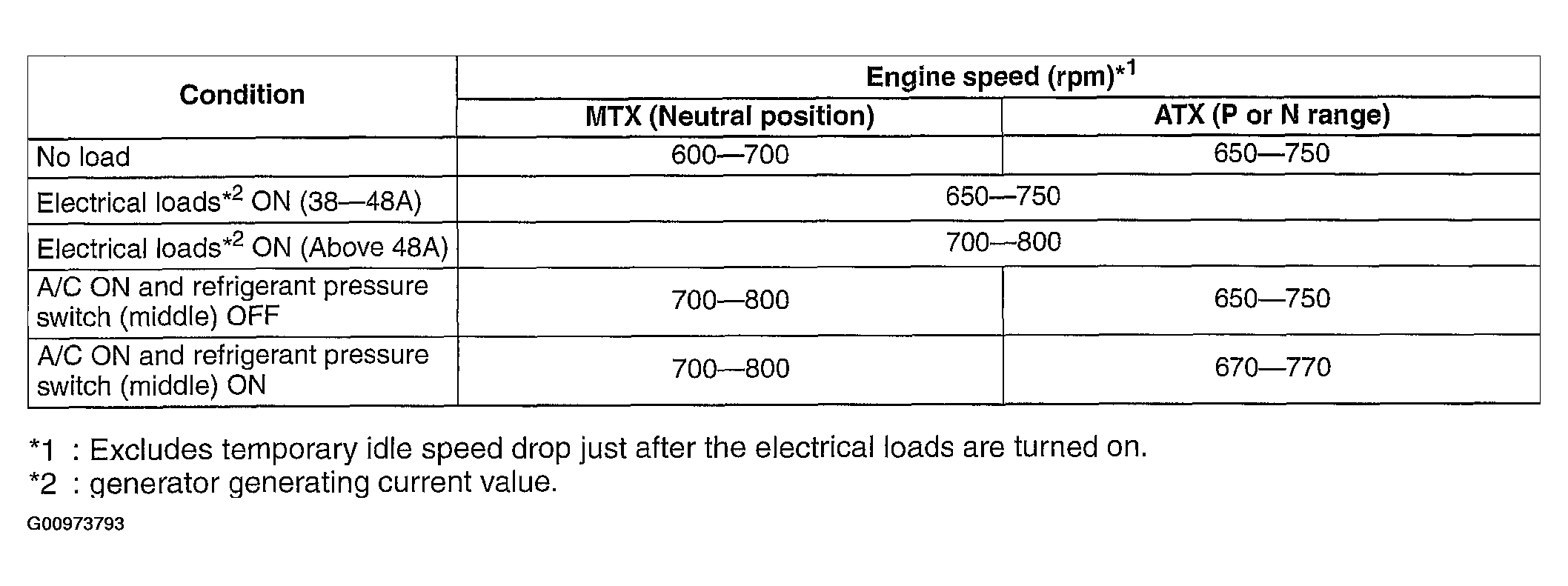

Fig 1: Idle Speed Inspection Specifications
Courtesy of MAZDA MOTORS CORP.
- If there malfunction, refer to "ENGINE SYMPTOM TROUBLESHOOTING". (See ENGINE SYMPTOM TROUBLESHOOTING .)
