Generator Drive Belt

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plug hole plate.

    (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)

  2. Remove the A/C drive belt.
  3. Turn the center of the auto tensioner pulley counterclockwise to release tension to the drive belt tension.
  4. Remove the generator drive belt.
  5. Install a new generator drive belt.
  6. Install the A/C drive belt.
  7. Install the plug hole plate.

    (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)

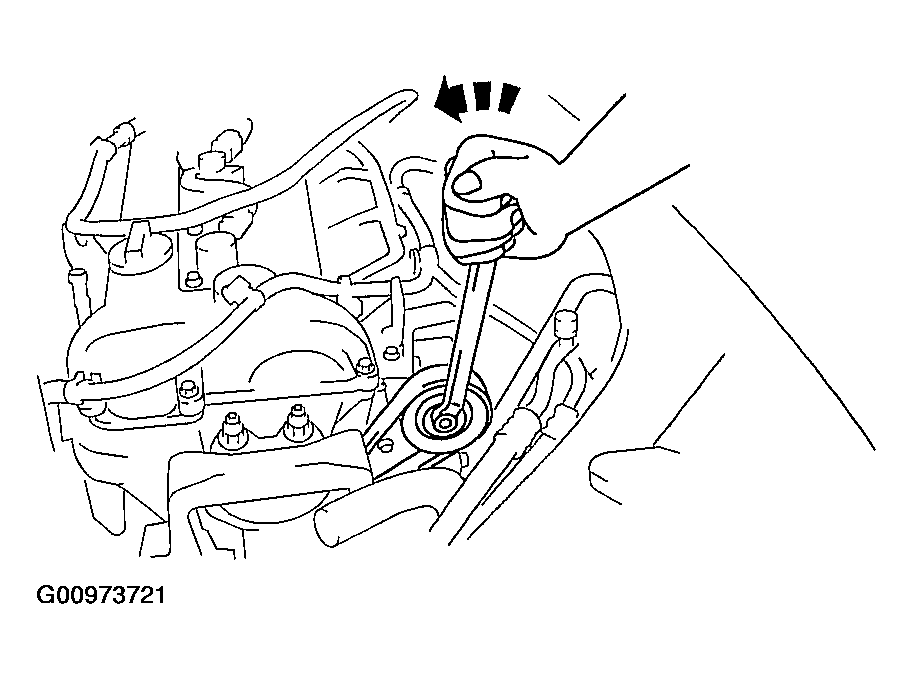

    Fig 1: Installing Generator Drive Belt
    G00973721Courtesy of MAZDA MOTORS CORP.
