Quick Diagnostic Chart

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

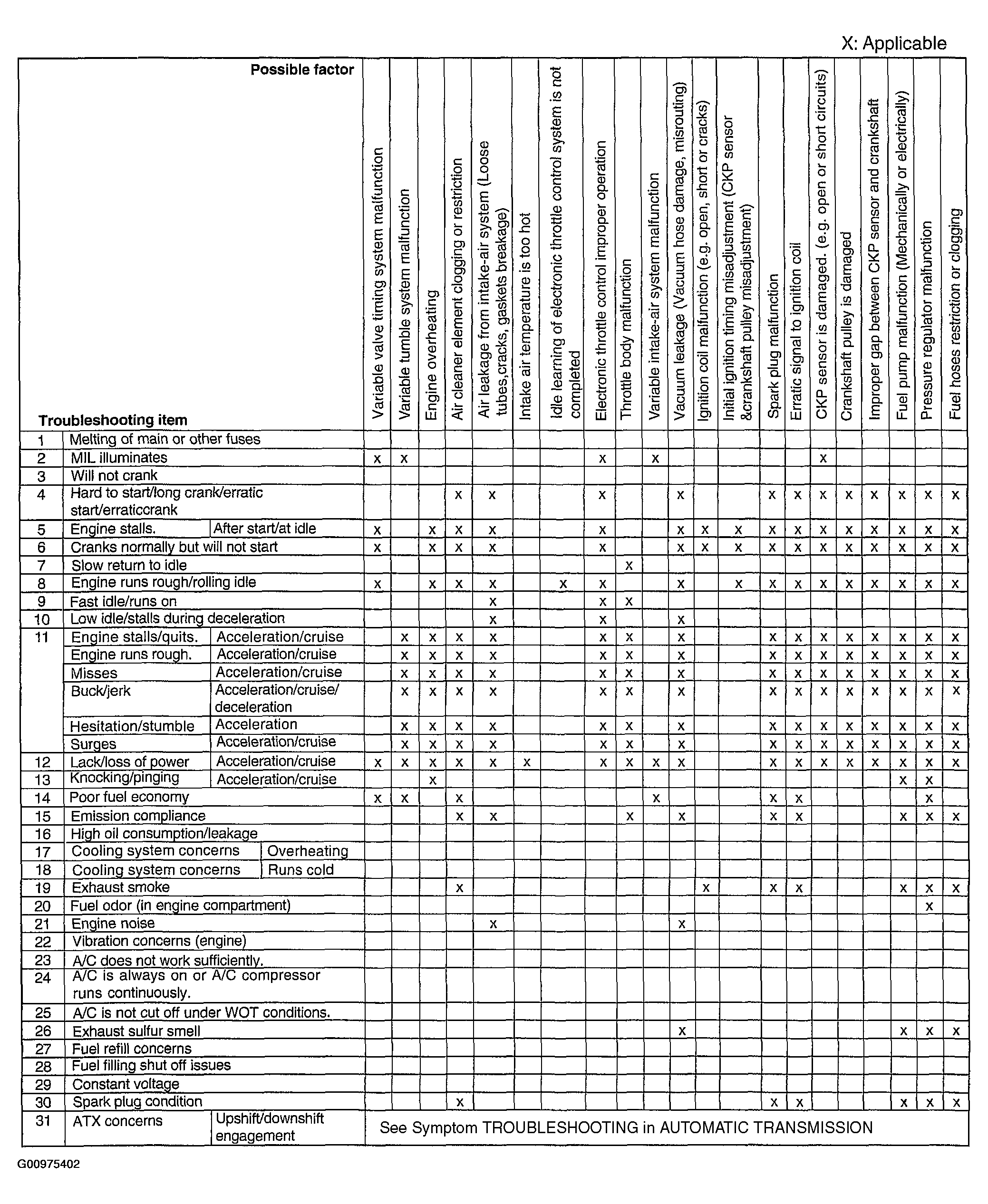

Fig 1: Engine Symptom Troubleshooting - Quick Diagnostic Chart (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

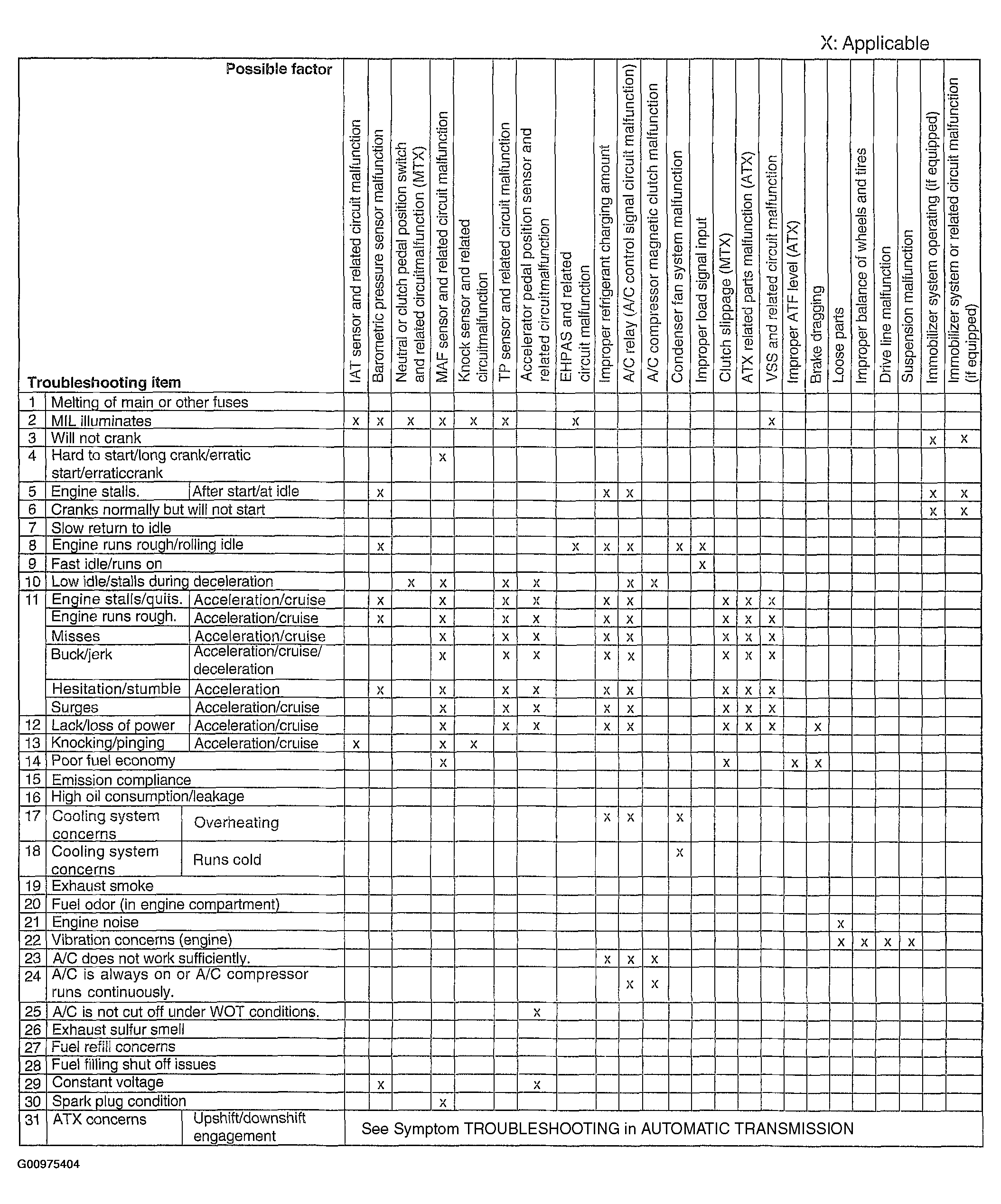

Fig 2: Engine Symptom Troubleshooting - Quick Diagnostic Chart (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

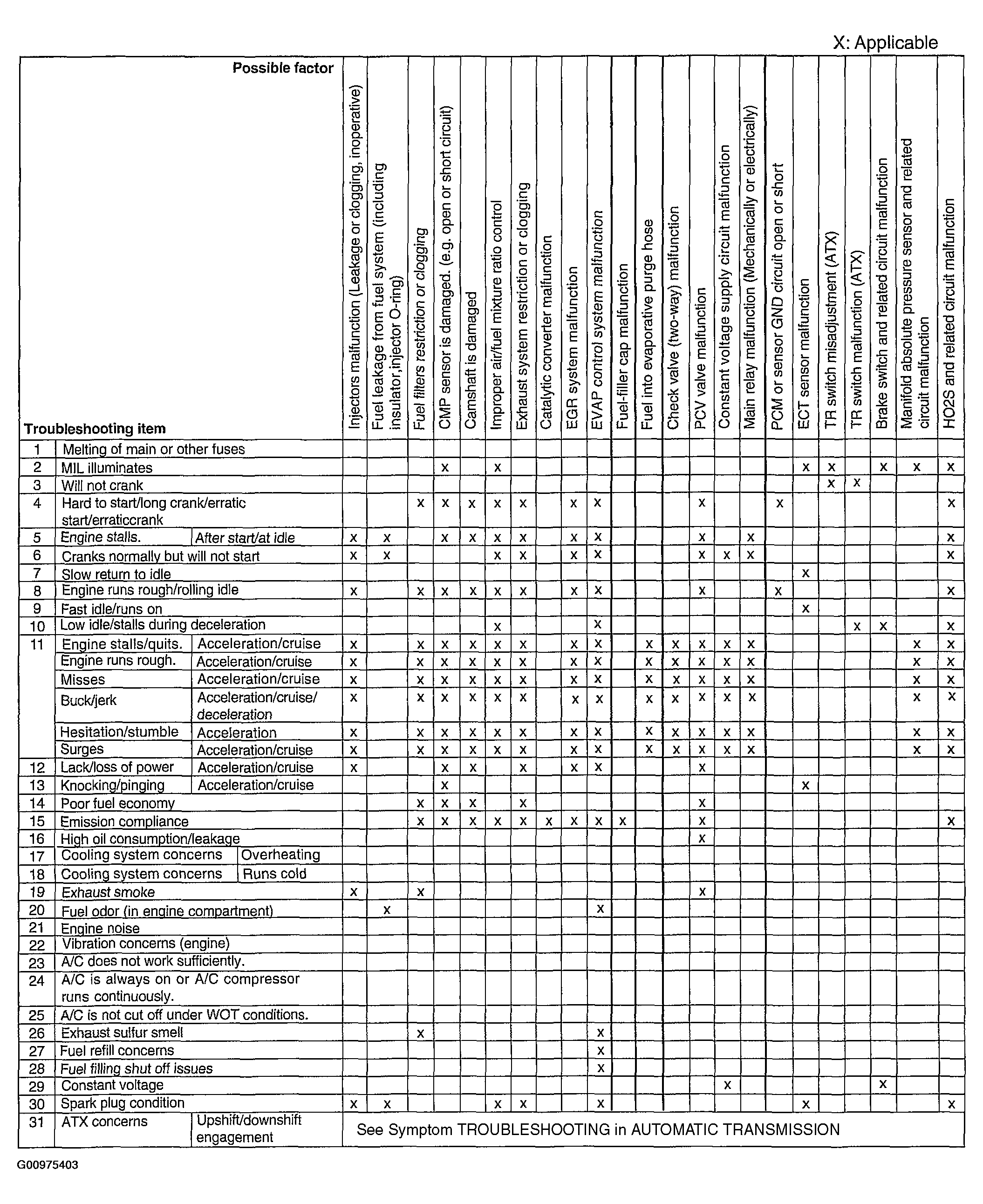

Fig 3: Engine Symptom Troubleshooting - Quick Diagnostic Chart (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

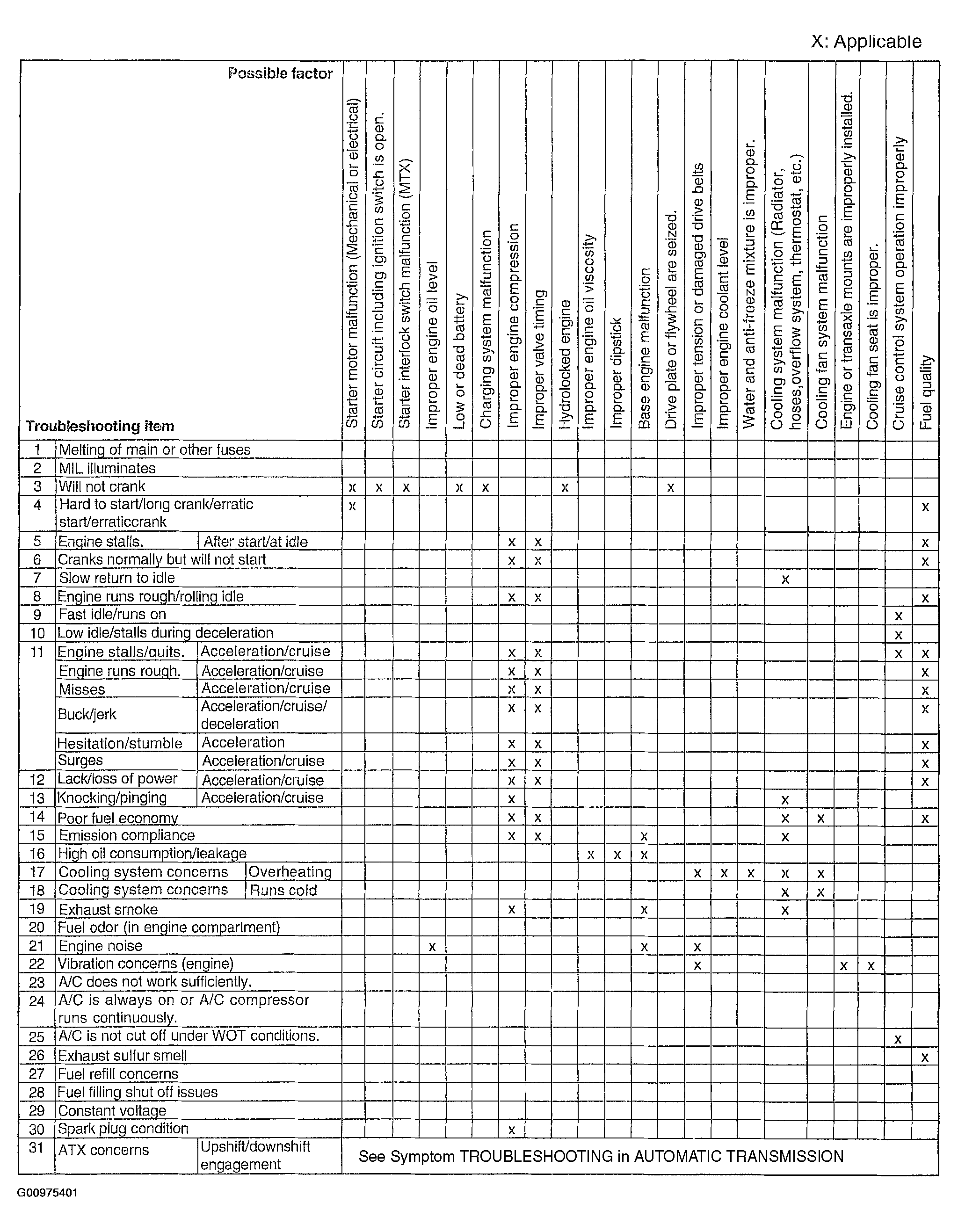

Fig 4: Engine Symptom Troubleshooting - Quick Diagnostic Chart (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
