Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

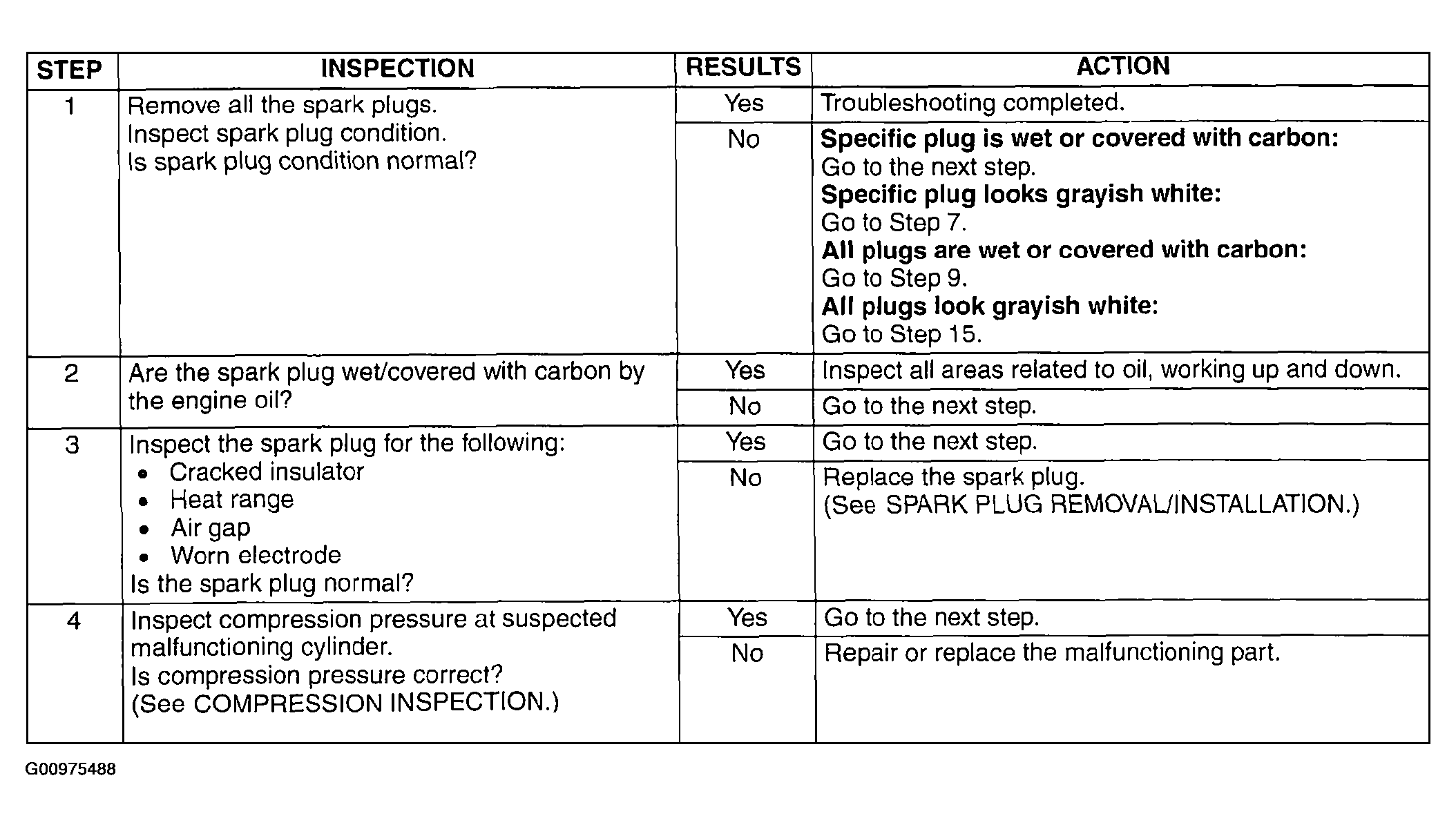

Fig 1: Symptom No. 30 Diagnostic Procedure (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

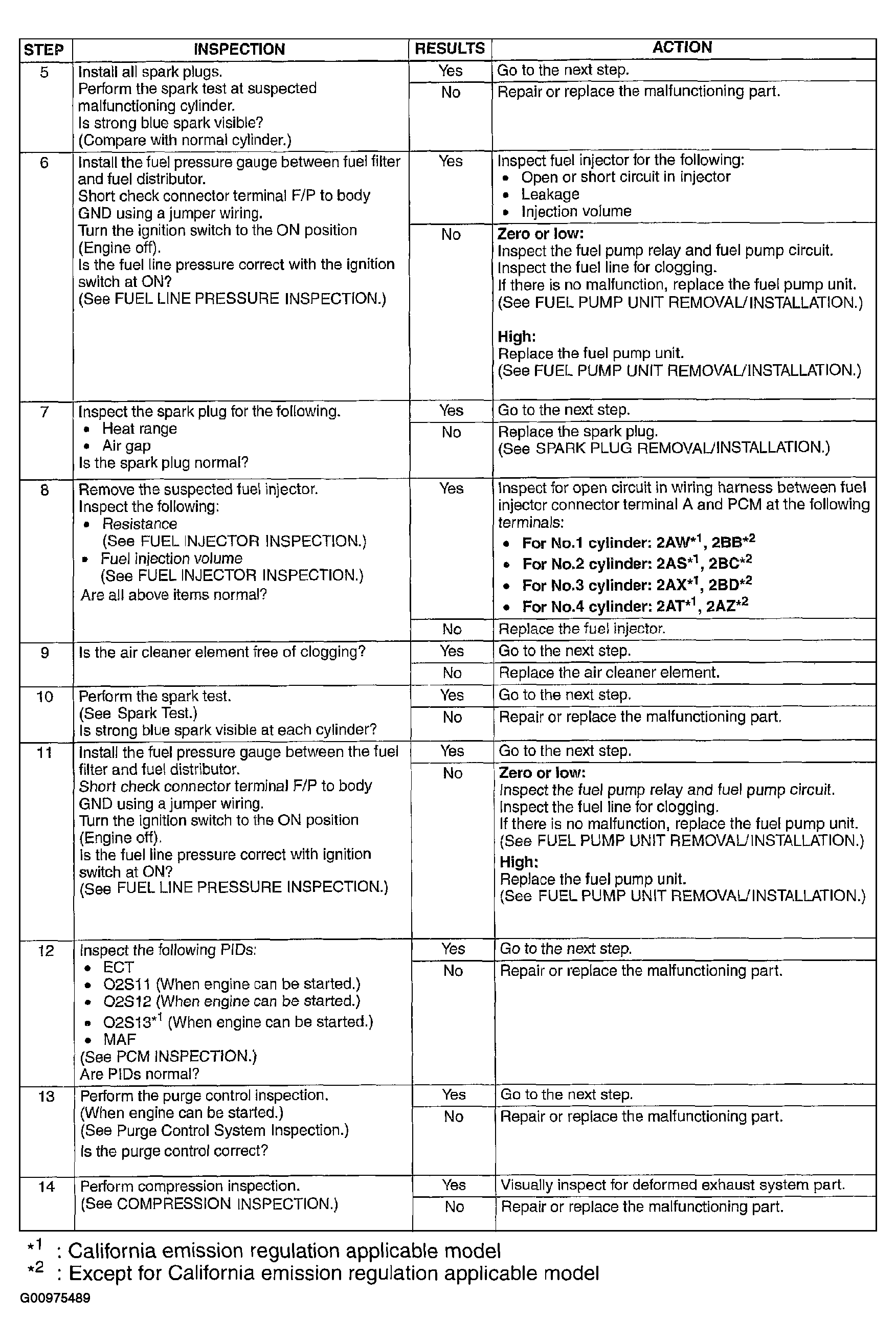

Fig 2: Symptom No. 30 Diagnostic Procedure (Steps 5-14)

Courtesy of MAZDA MOTORS CORP.

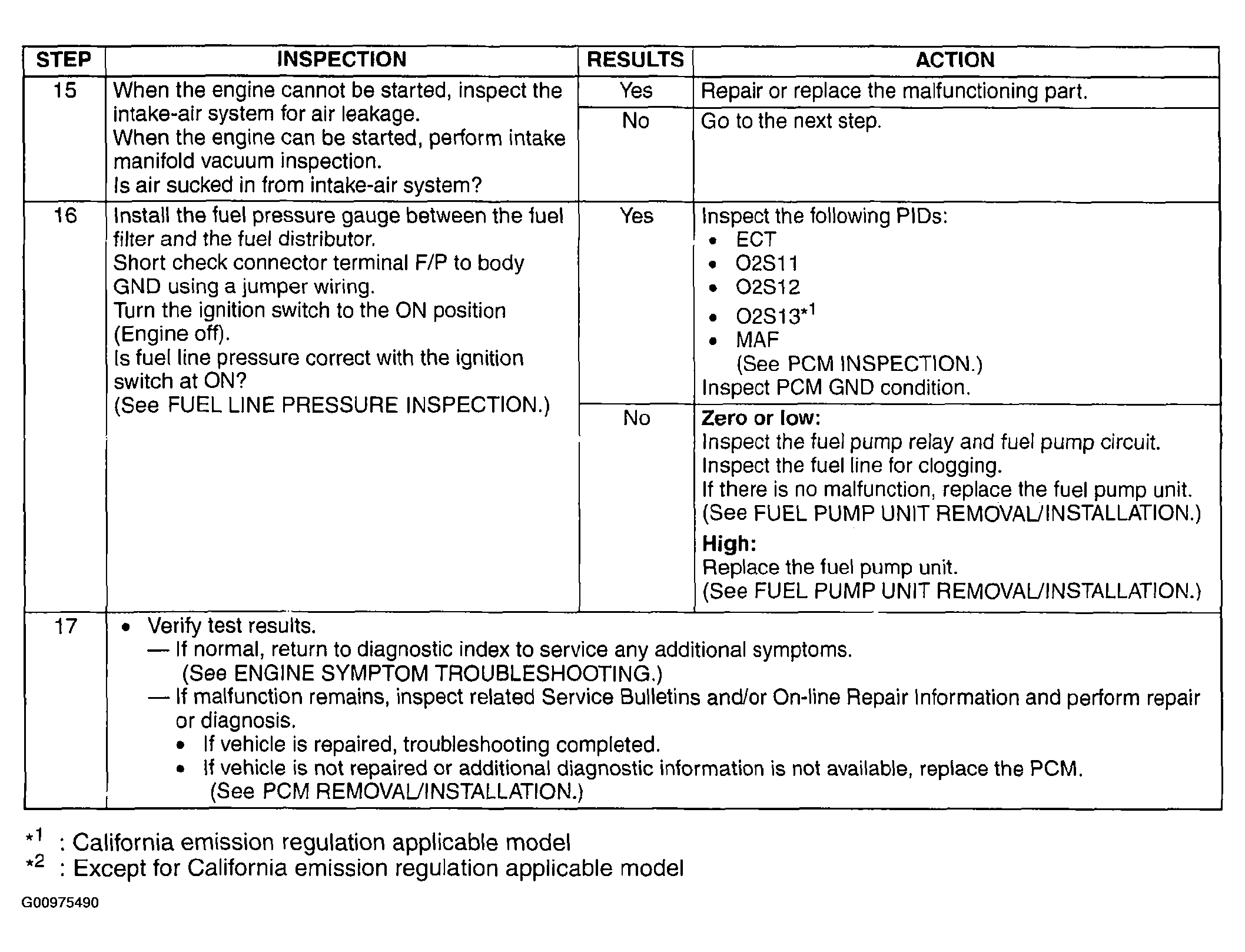

Fig 3: Symptom No. 30 Diagnostic Procedure (Steps 15-17)

Courtesy of MAZDA MOTORS CORP.
