Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

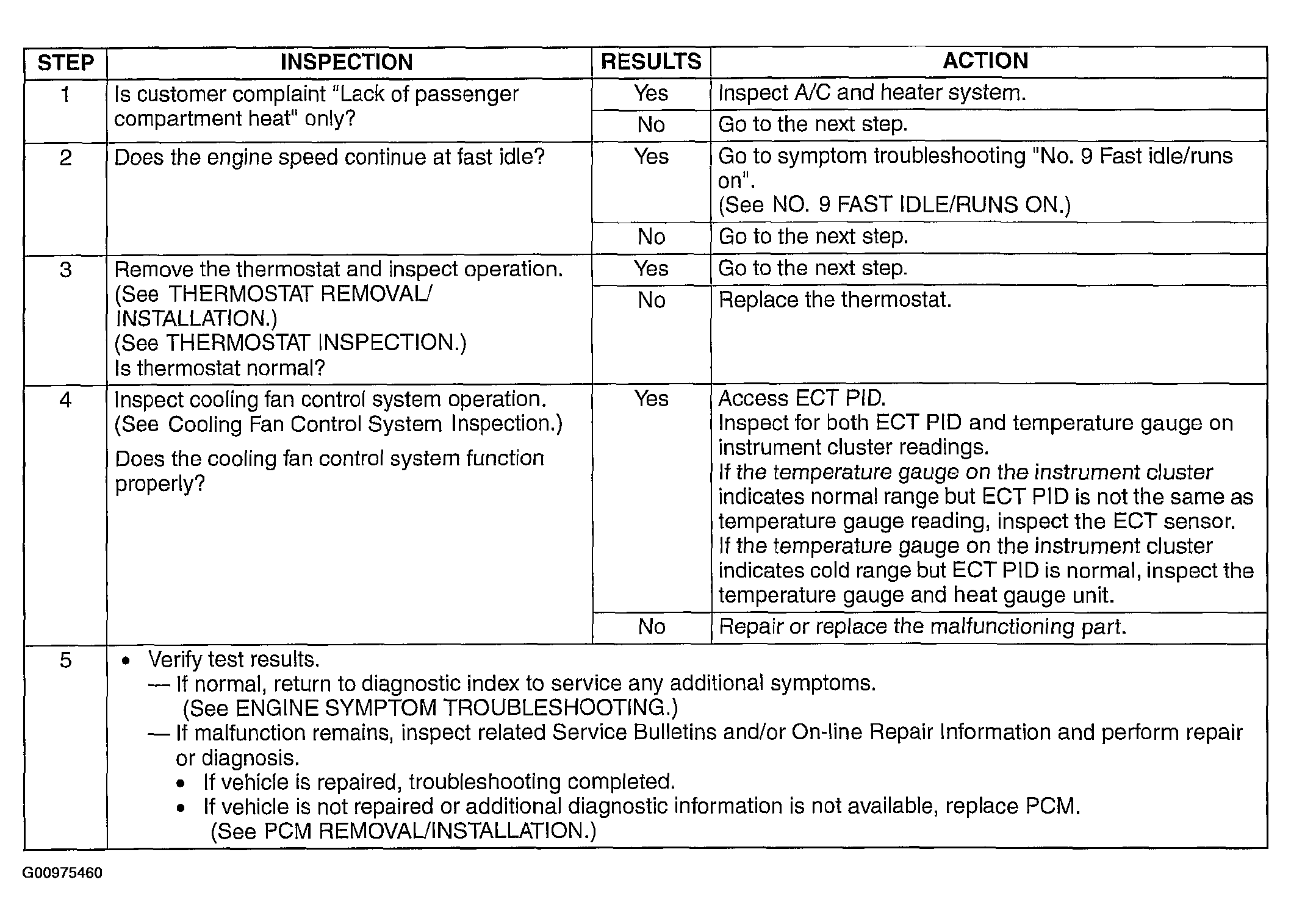

Fig 1: Symptom No. 18 Diagnostic Procedure (Steps 1-5)
G00975460Courtesy of MAZDA MOTORS CORP.
