Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

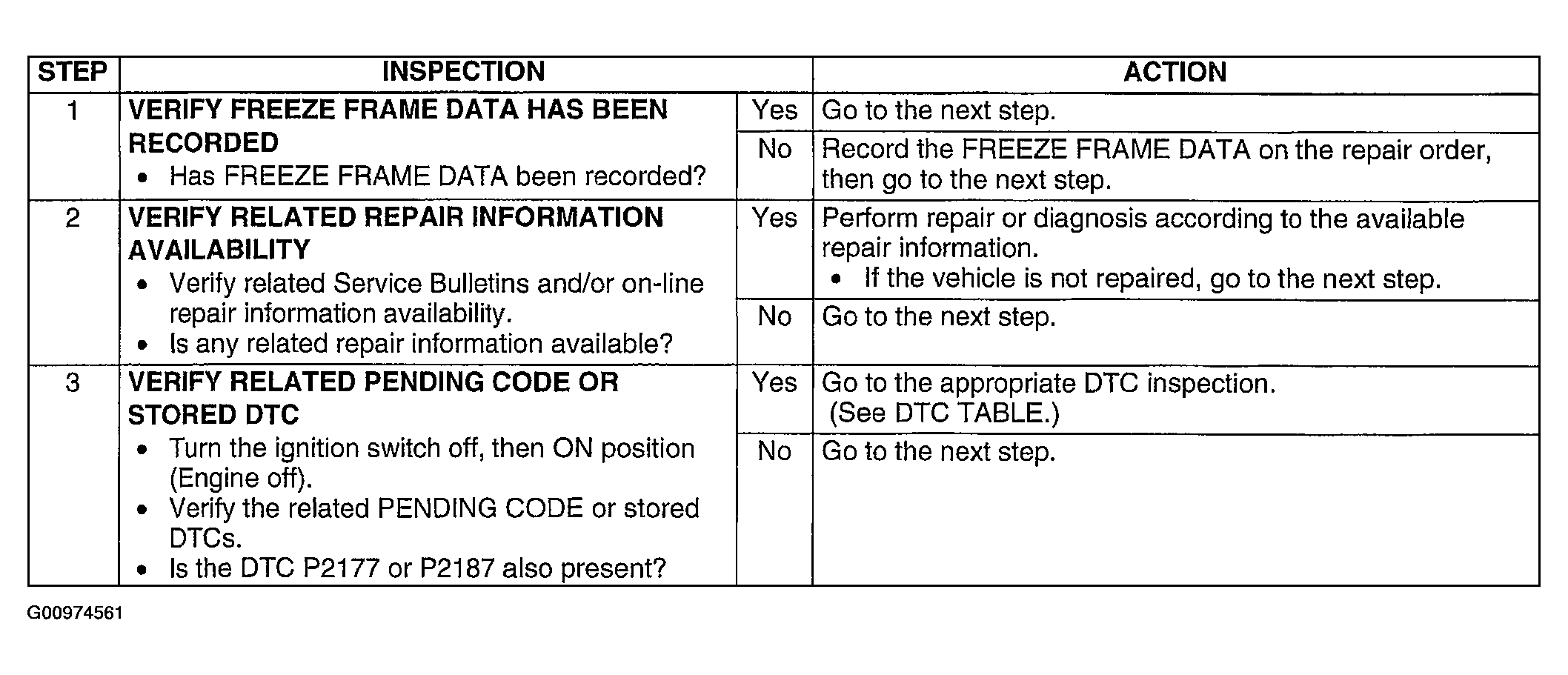

Fig 1: DTC P2196: Diagnostic Procedure Chart (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

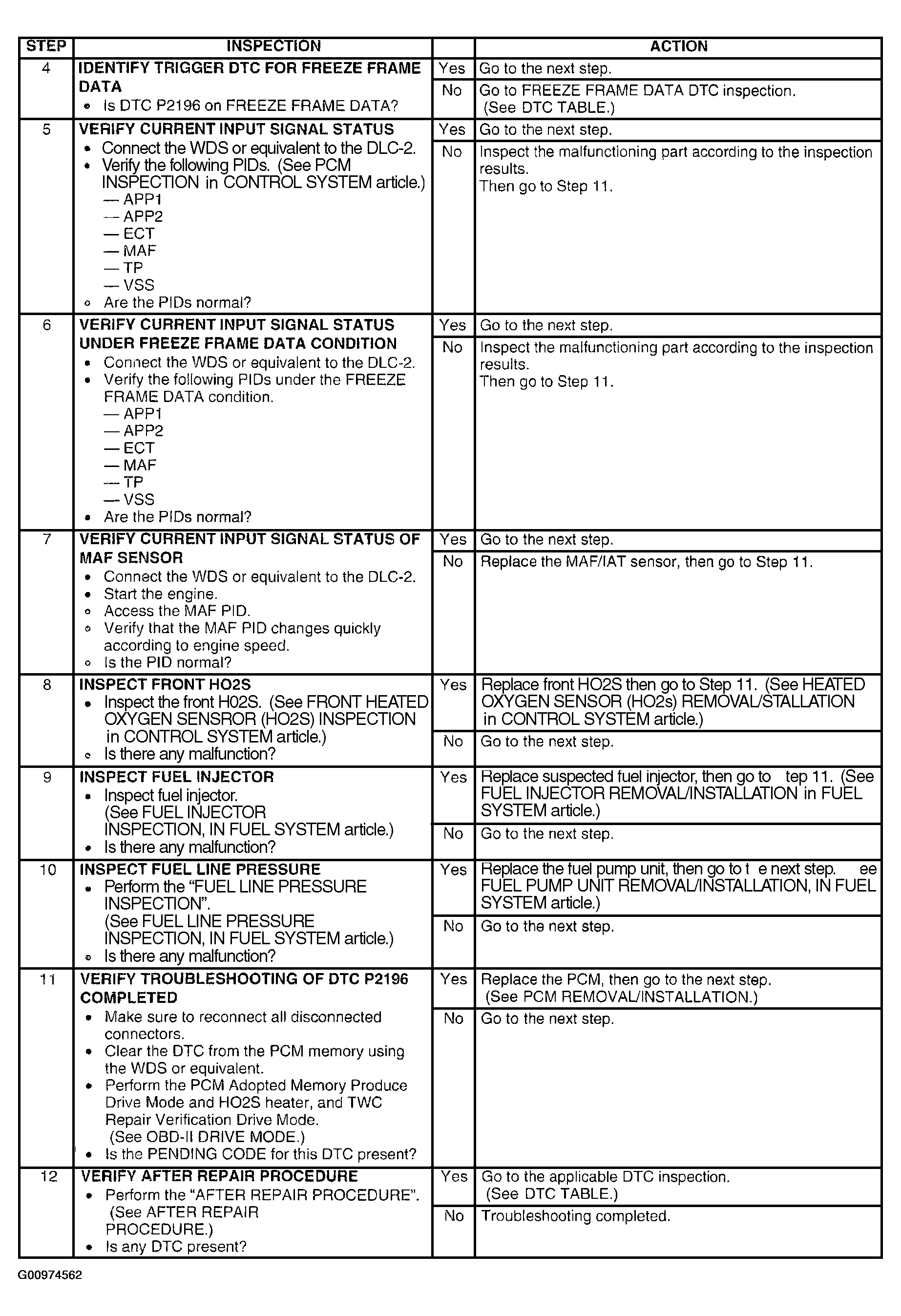

Fig 2: DTC P2196: Diagnostic Procedure Chart (Steps 4-12)

Courtesy of MAZDA MOTORS CORP.

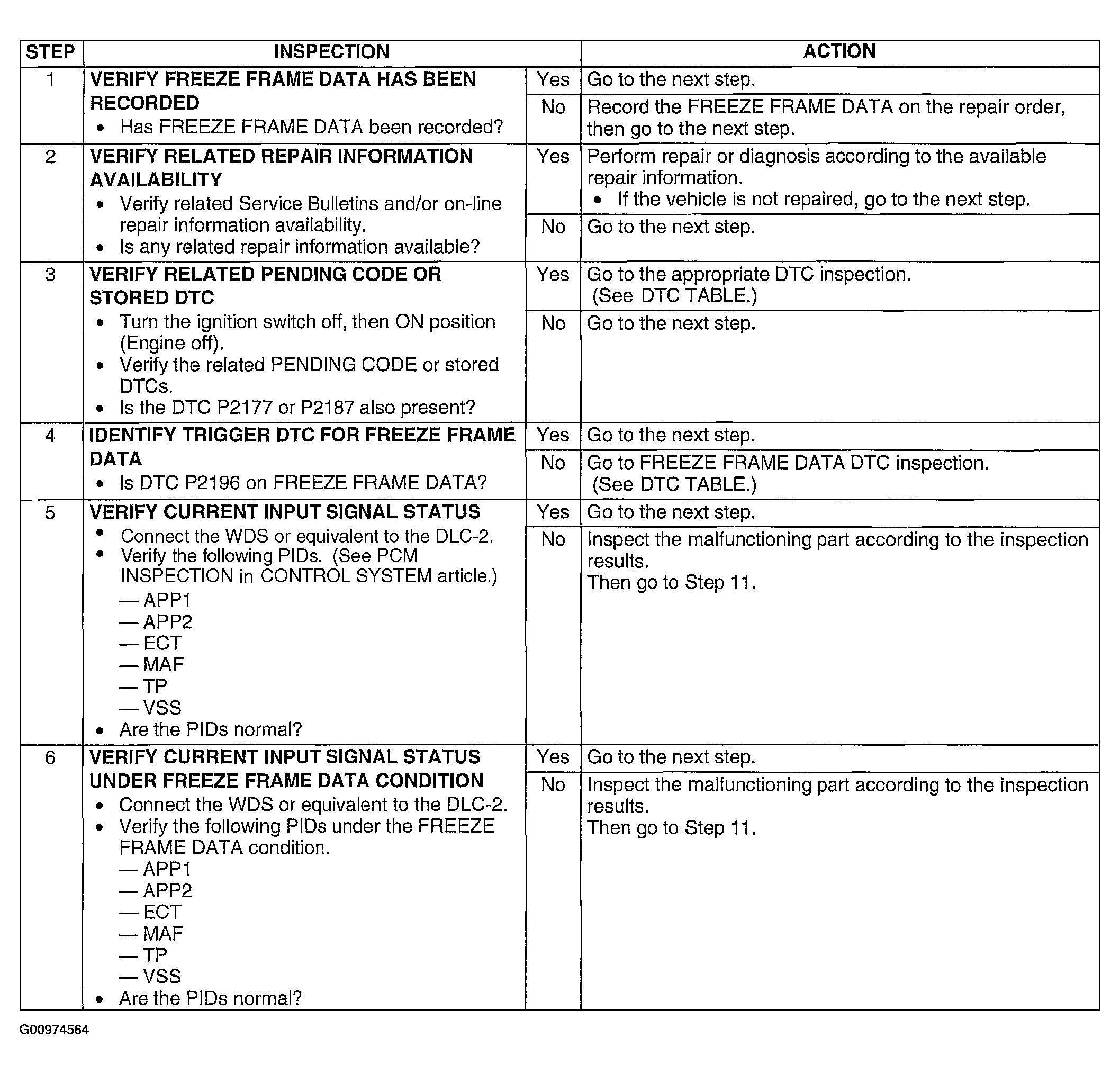

Fig 1: DTC P2196: Diagnostic Procedure Chart (Steps 1-6)

Courtesy of MAZDA MOTORS CORP.

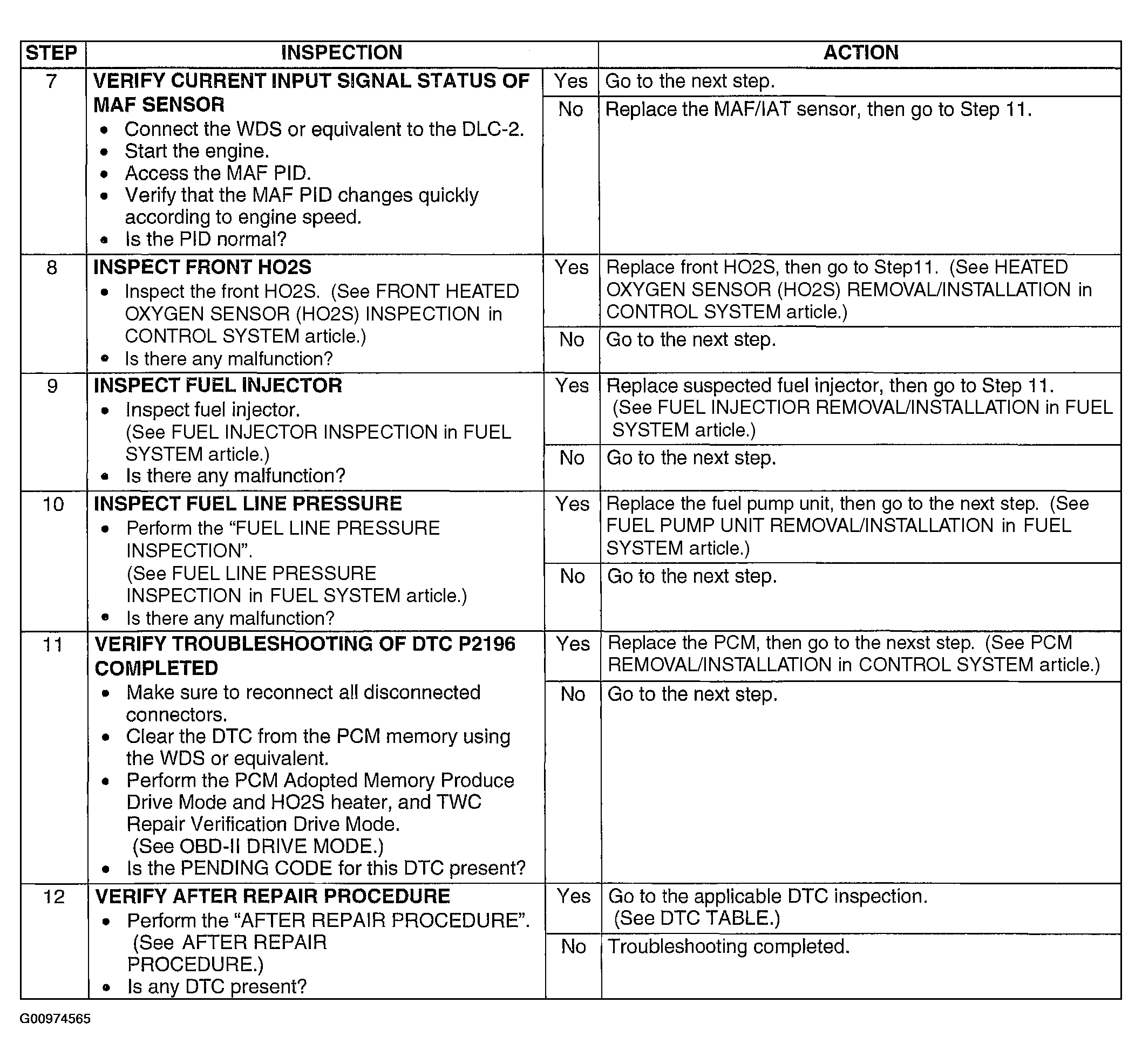

Fig 2: DTC P2196: Diagnostic Procedure Chart (Steps 7-12)

Courtesy of MAZDA MOTORS CORP.
