Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

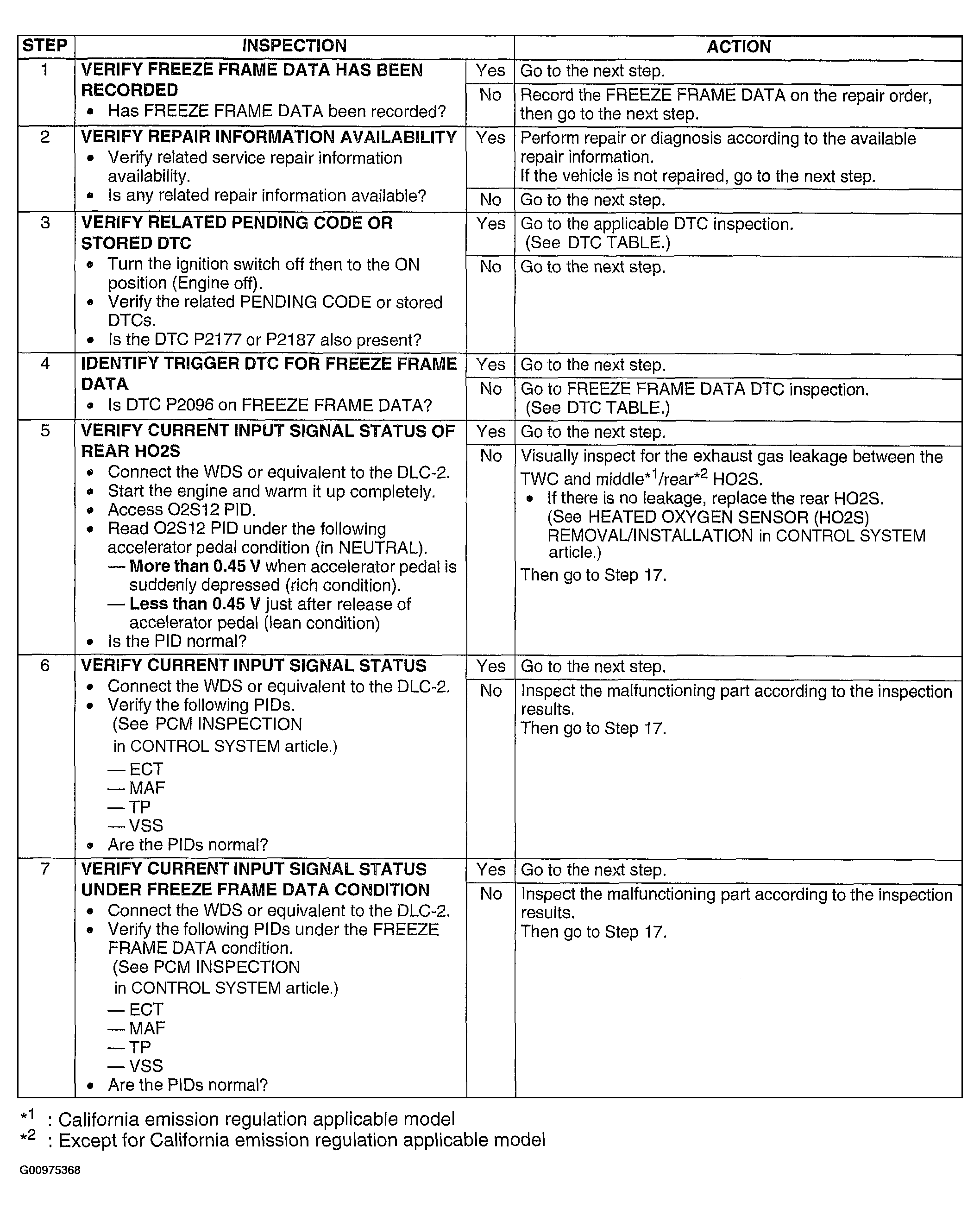

Fig 1: DTC P2096: Diagnostic Procedure Chart (Steps 1-7)

Courtesy of MAZDA MOTORS CORP.

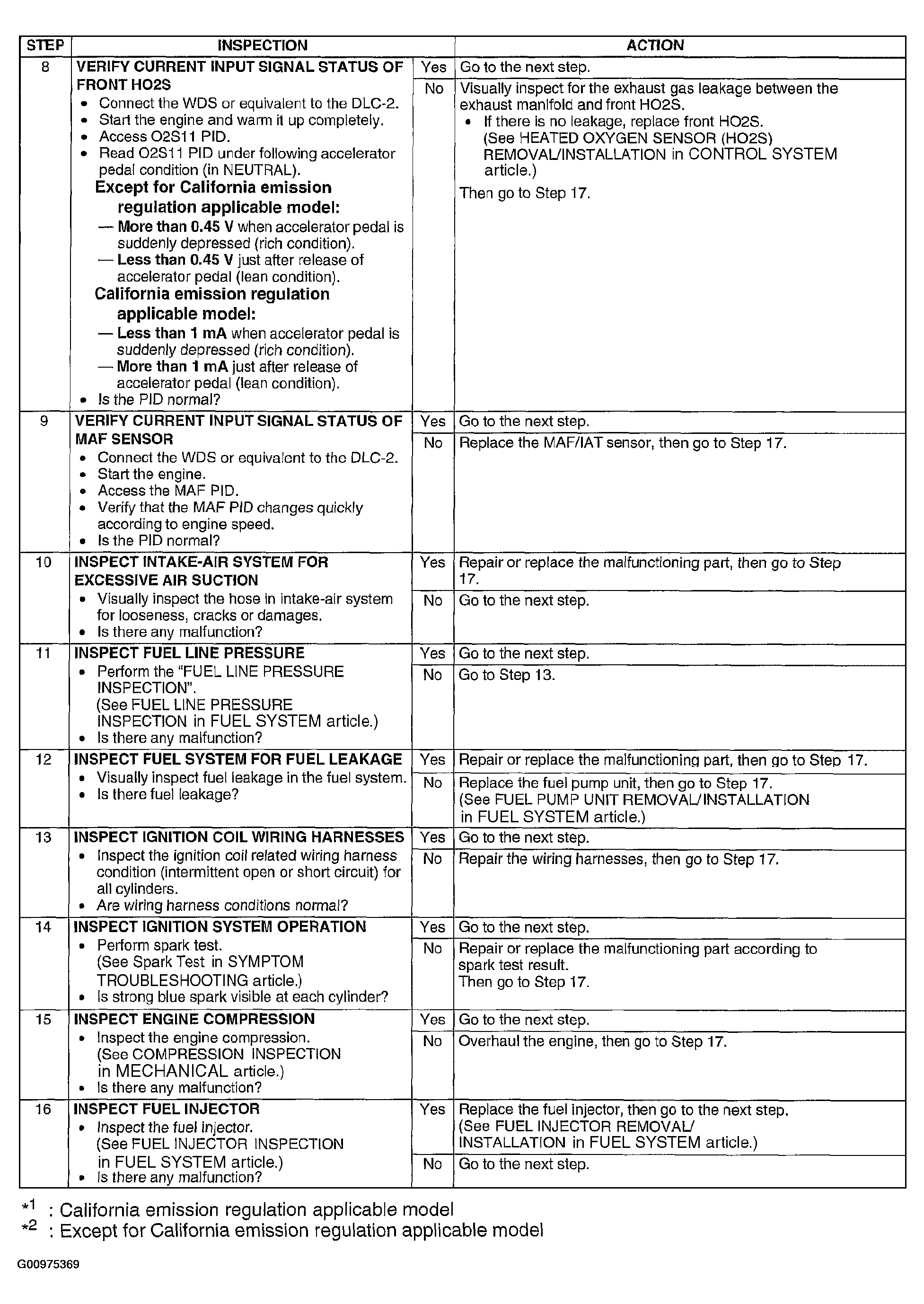

Fig 2: DTC P2096: Diagnostic Procedure Chart (Steps 8-16)

Courtesy of MAZDA MOTORS CORP.

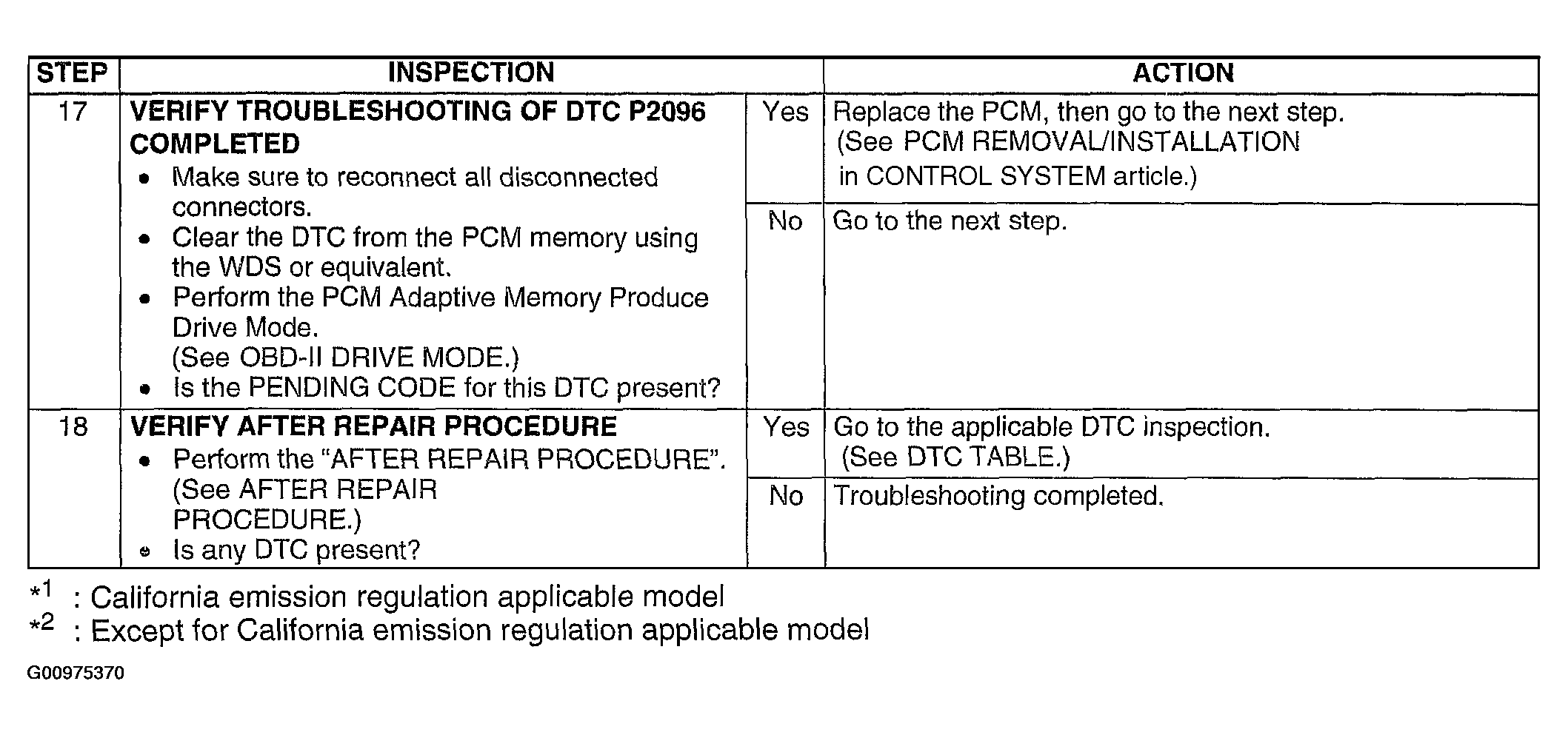

Fig 3: DTC P2096: Diagnostic Procedure Chart (Steps 17 & 18)

Courtesy of MAZDA MOTORS CORP.
