Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

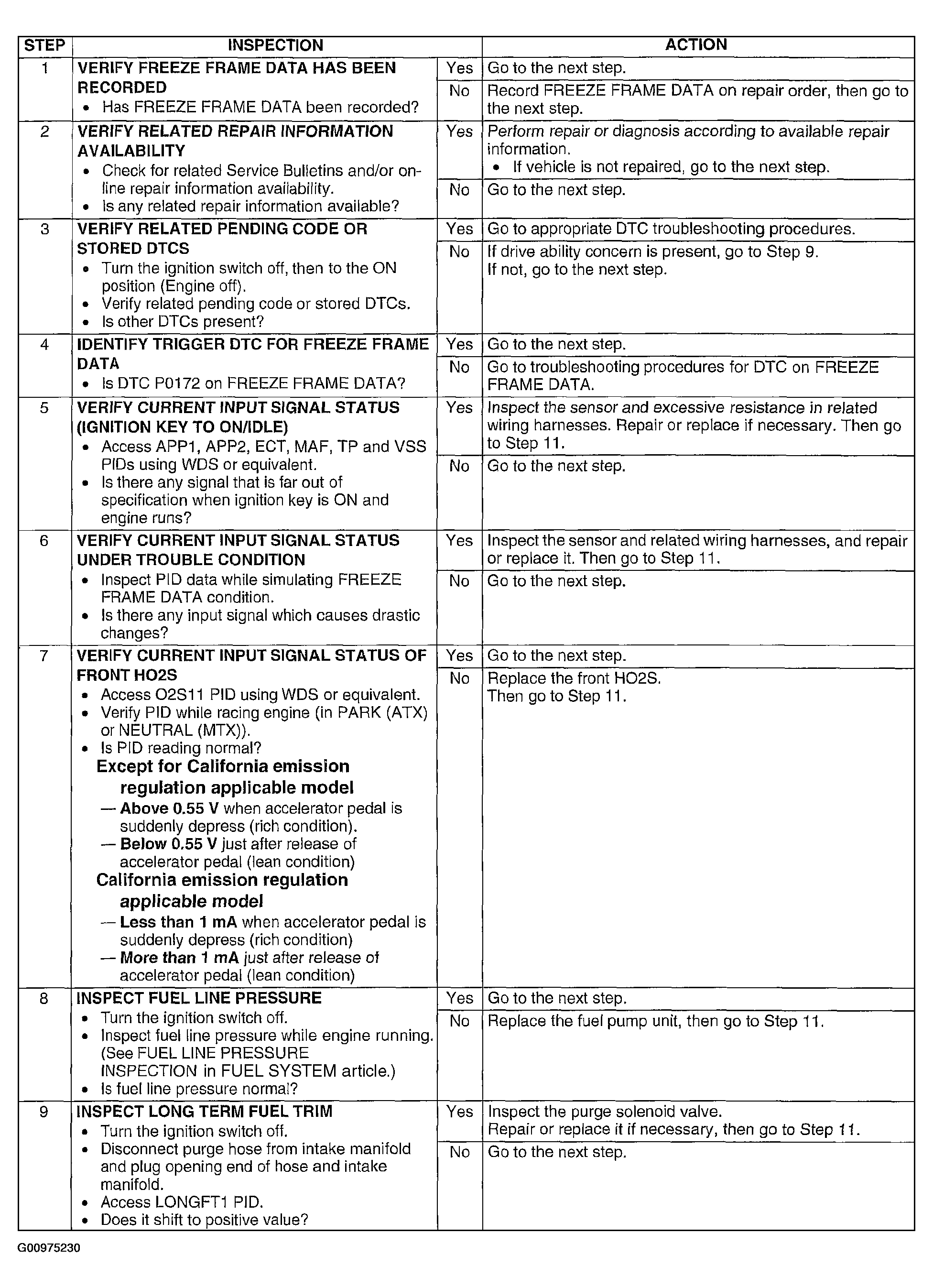

Fig 1: DTC P0172: Diagnostic Procedure Chart (Steps 1-9)
G00975230Courtesy of MAZDA MOTORS CORP.

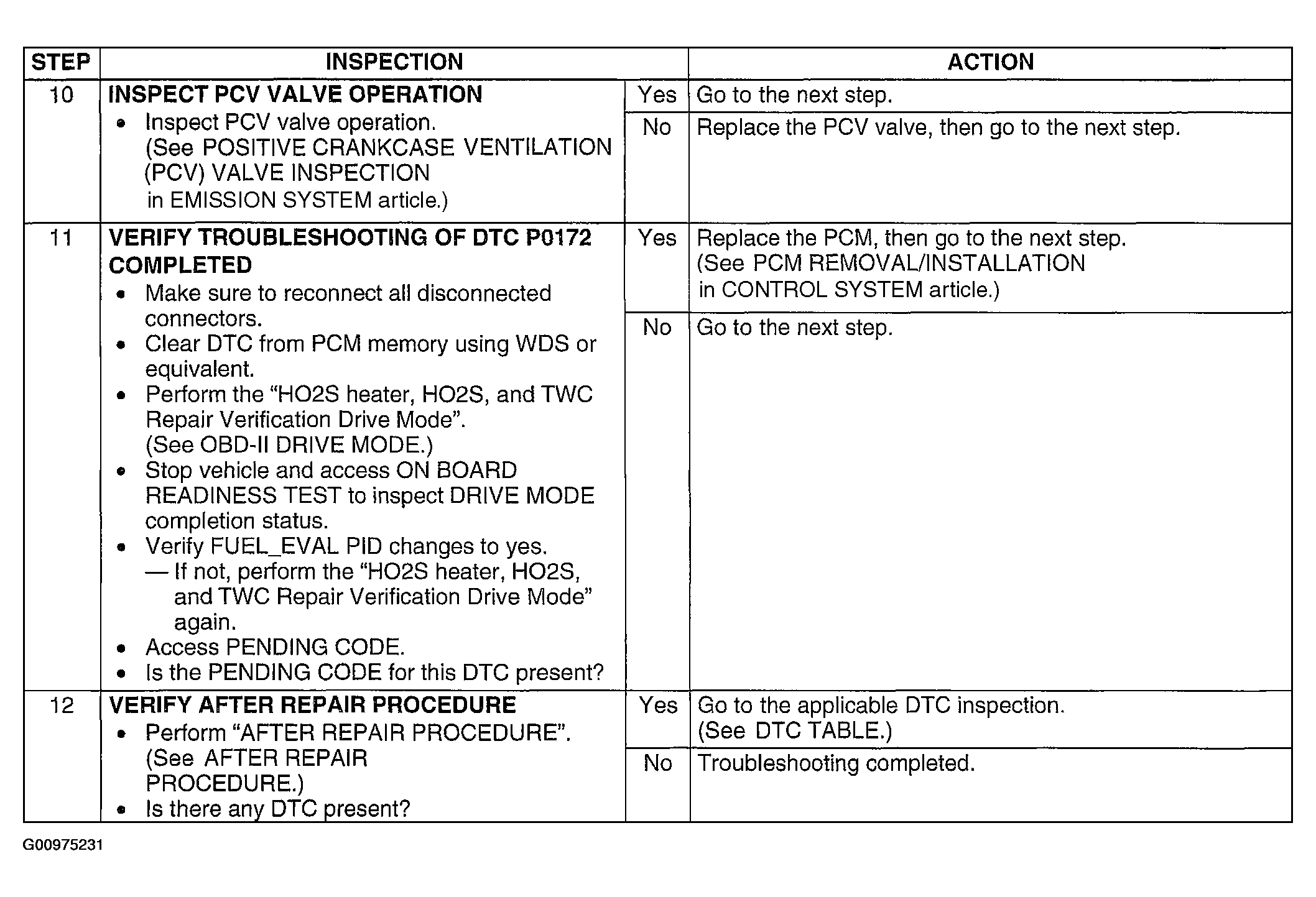

Fig 2: DTC P0172: Diagnostic Procedure Chart (Steps 10-12)
G00975231Courtesy of MAZDA MOTORS CORP.
