Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

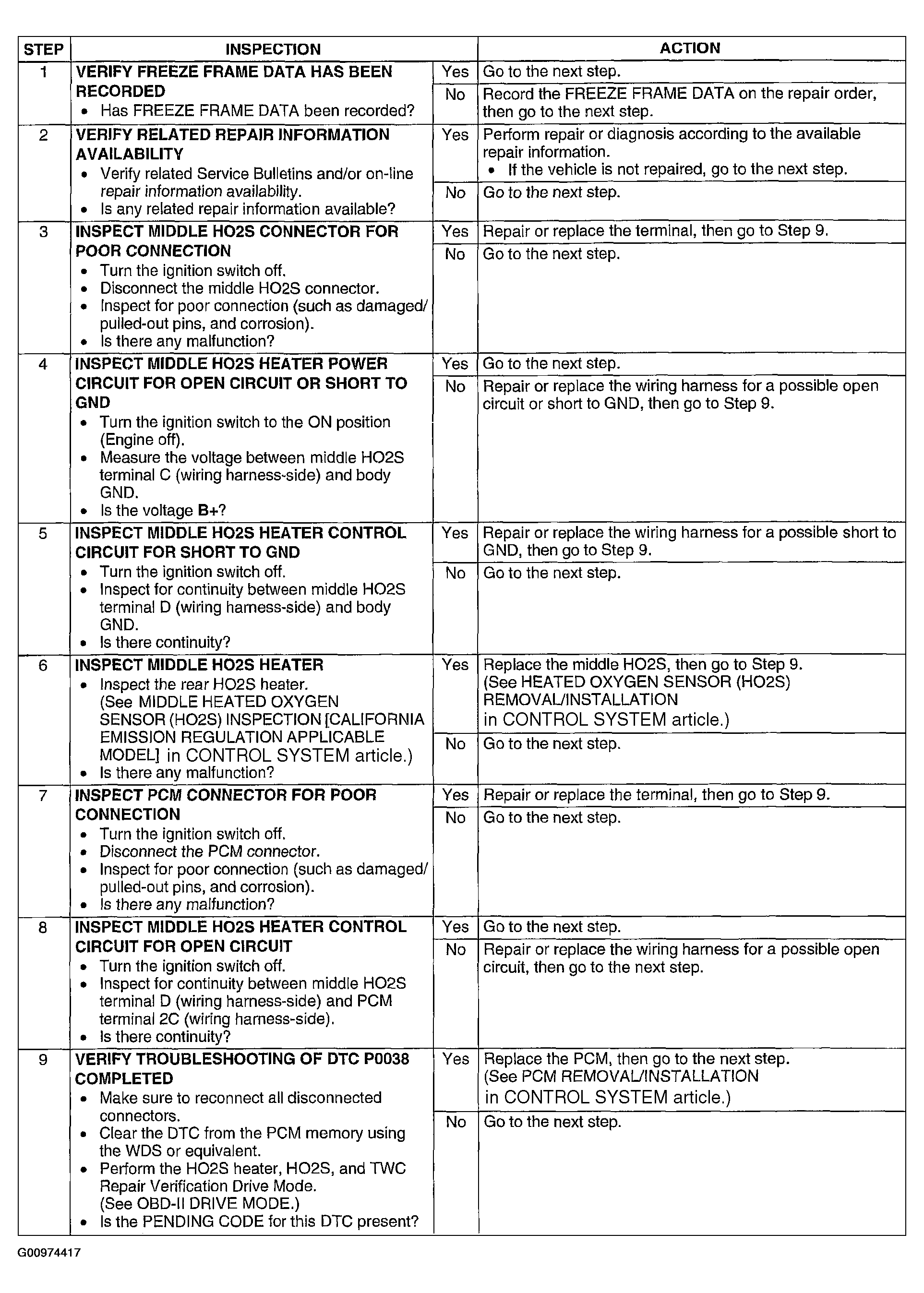

Fig 1: DTC P0038: Diagnostic Procedure Chart (Steps 1-9)

Courtesy of MAZDA MOTORS CORP.

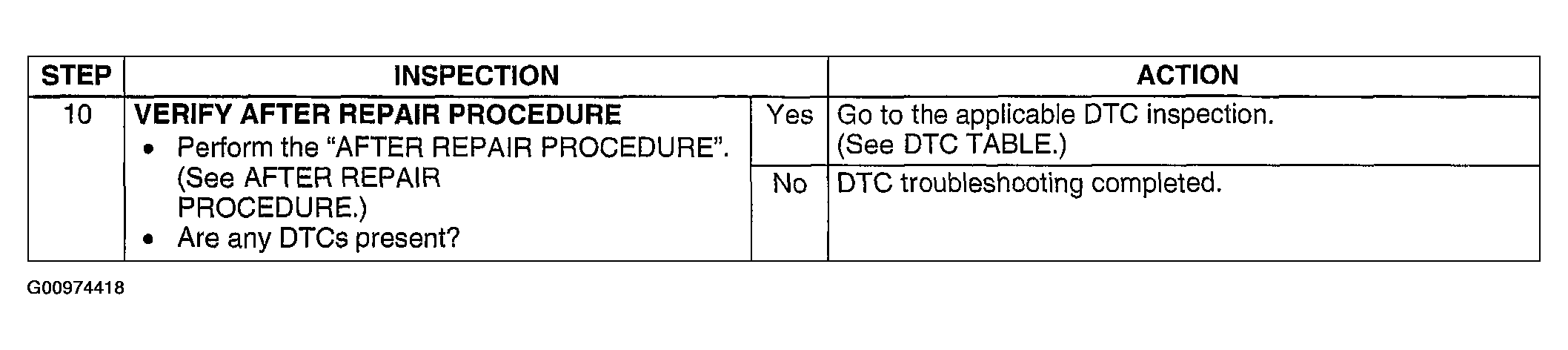

Fig 2: DTC P0038: Diagnostic Procedure Chart (Step 10)

Courtesy of MAZDA MOTORS CORP.

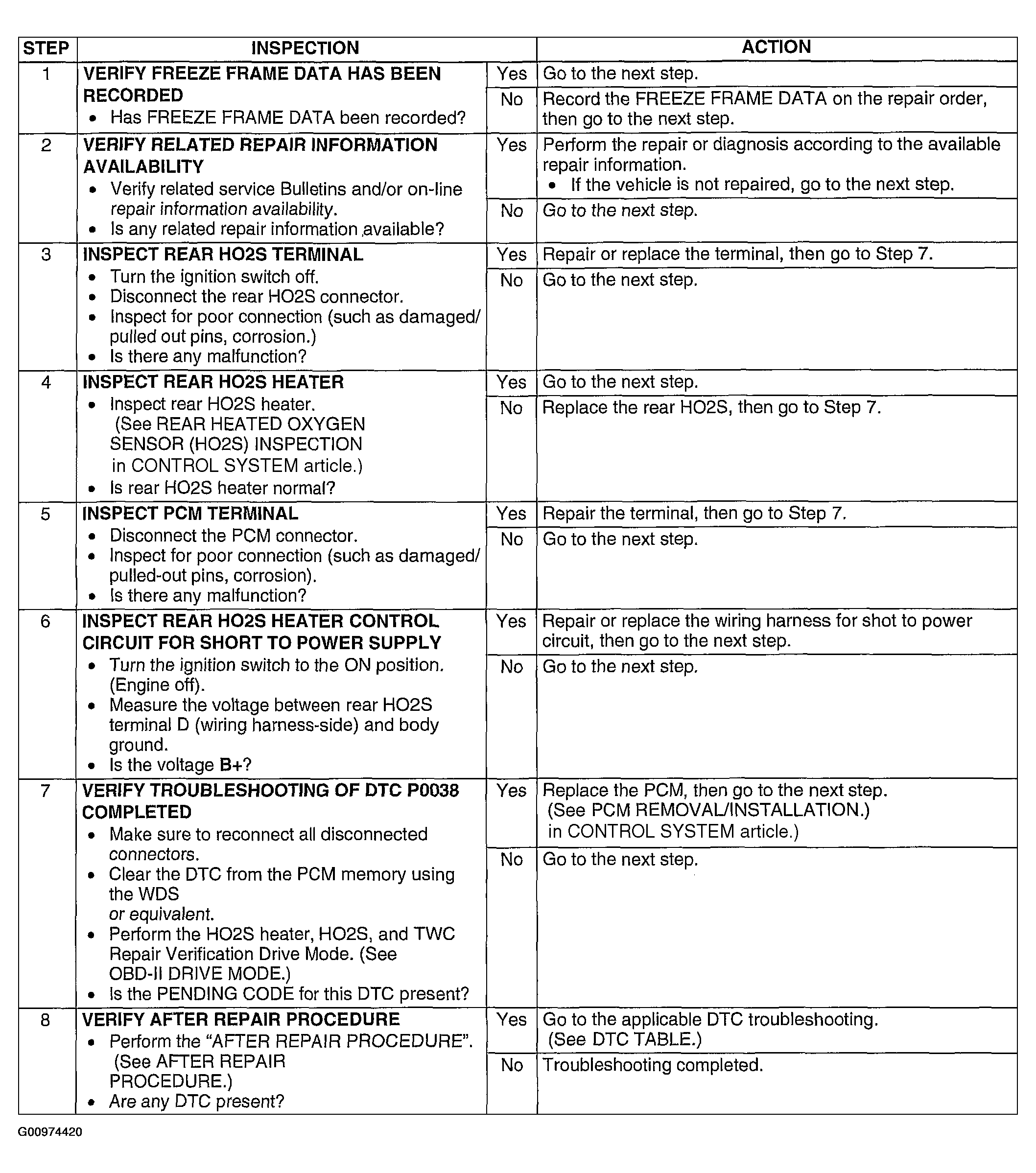

Fig 1: DTC P0038: Diagnostic Procedure Chart (Steps 1-8)

Courtesy of MAZDA MOTORS CORP.
