Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE .
  3. Using the J 8614-01 to hold the transmission yoke, remove and discard the yoke nut.

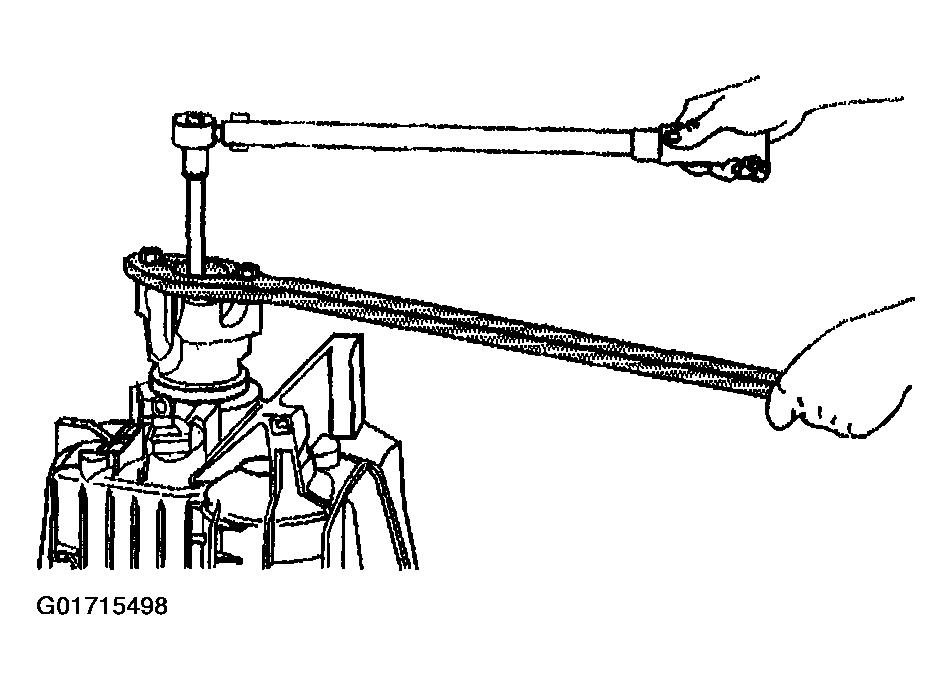

    4. Fig 1: Removing Yoke Nut
    G01715498Courtesy of GENERAL MOTORS CORP.
  4. Remove the yoke.
  5. Using J 6125-1B (1) and J 23129 (2), remove the rear oil seal.
    Fig 2: Rear Oil Seal
    G01715500Courtesy of GENERAL MOTORS CORP.
