Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Broken or deteriorated mounts can cause misalignment and destruction of certain drive train components. When a single mount breaks, the remaining mounts are subjected to abnormally high stresses.
  1. Raise and suitably support the vehicle.
  2. Remove the transmission mount to crossmember nuts.
  3. Remove the transmission mount bolts to the transmission.
  4. Raise the transmission using a suitable transmission jack, just enough in order to permit the removal of the mount.

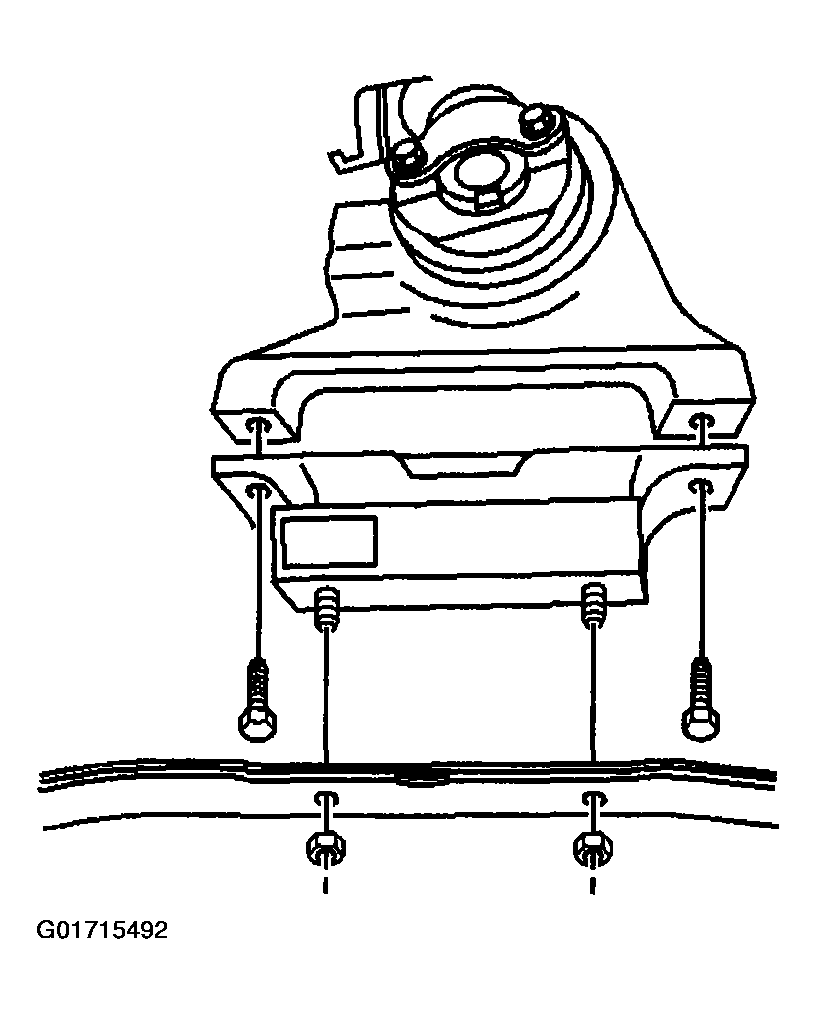

    Fig 1: Transmission Mount
    G01715492Courtesy of GENERAL MOTORS CORP.
  5. Remove the transmission mount.
