Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the control lever.

    Important:  Loosen DO NOT remove the shift lever assembly adjustment nut if replacing the control lever.

    Fig 1: Control Lever
    G01715477Courtesy of GENERAL MOTORS CORP.
  2. Remove the control lever boot retainer plastic retainers, if necessary.
  3. Remove the control lever boot retainer, if necessary.

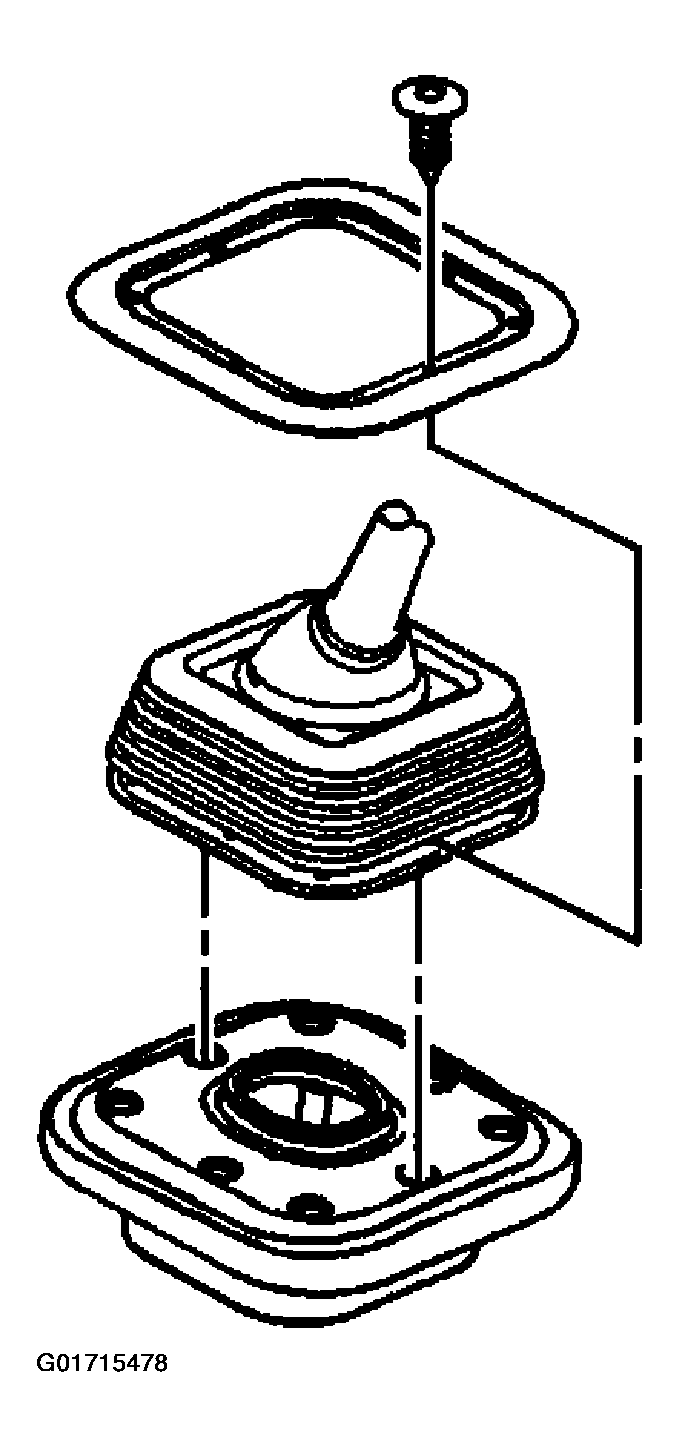

    Fig 2: Control Lever Boot Retainer
    G01715478Courtesy of GENERAL MOTORS CORP.
  4. Remove the control lever boot screws, if necessary.
  5. Remove the control lever boot, if necessary.
  6. Remove the control lever insulator, if necessary.

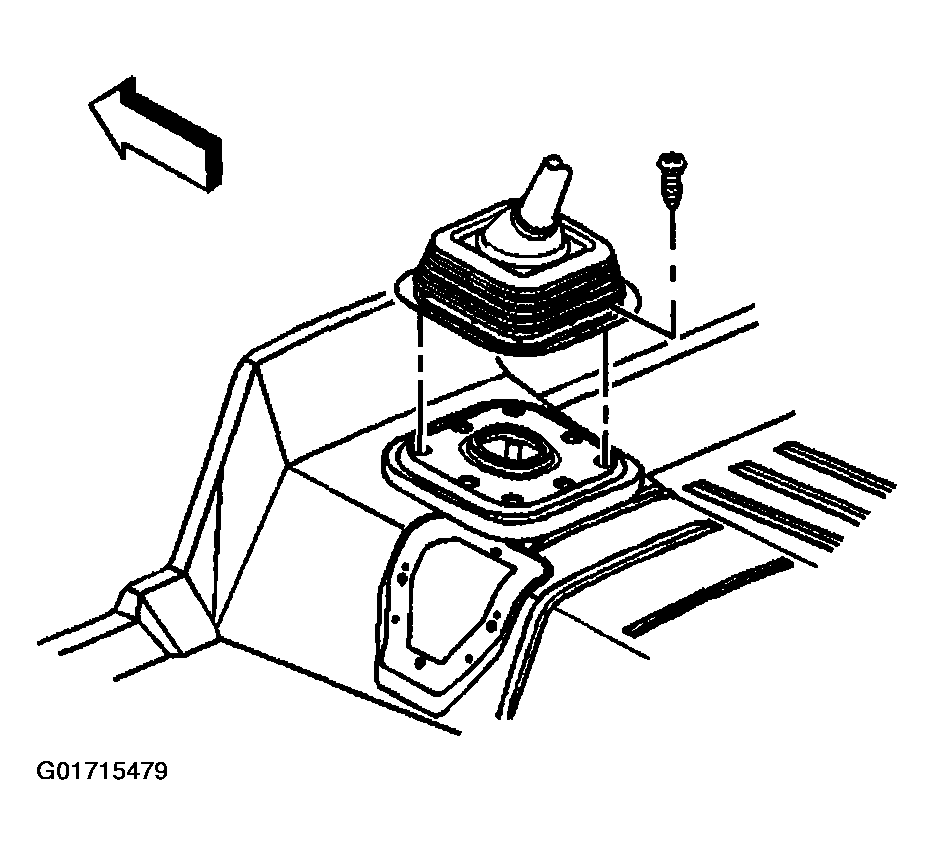

    Fig 3: Control Lever Boot
    G01715479Courtesy of GENERAL MOTORS CORP.
