Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the oil fill plug.

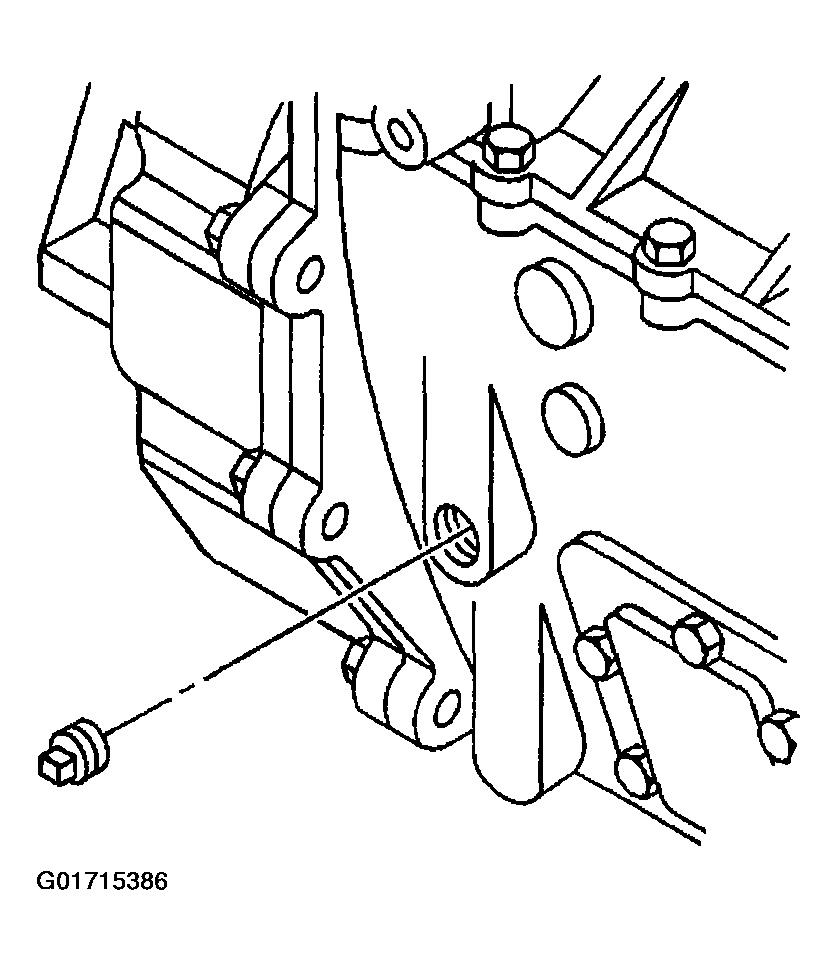

    Fig 1: Transmission Oil Fill Plug
    G01715386Courtesy of GENERAL MOTORS CORP.
  3. Place a suitable drain pan under the transmission in order to catch the drained transmission fluid.
  4. Remove the oil drain plug.

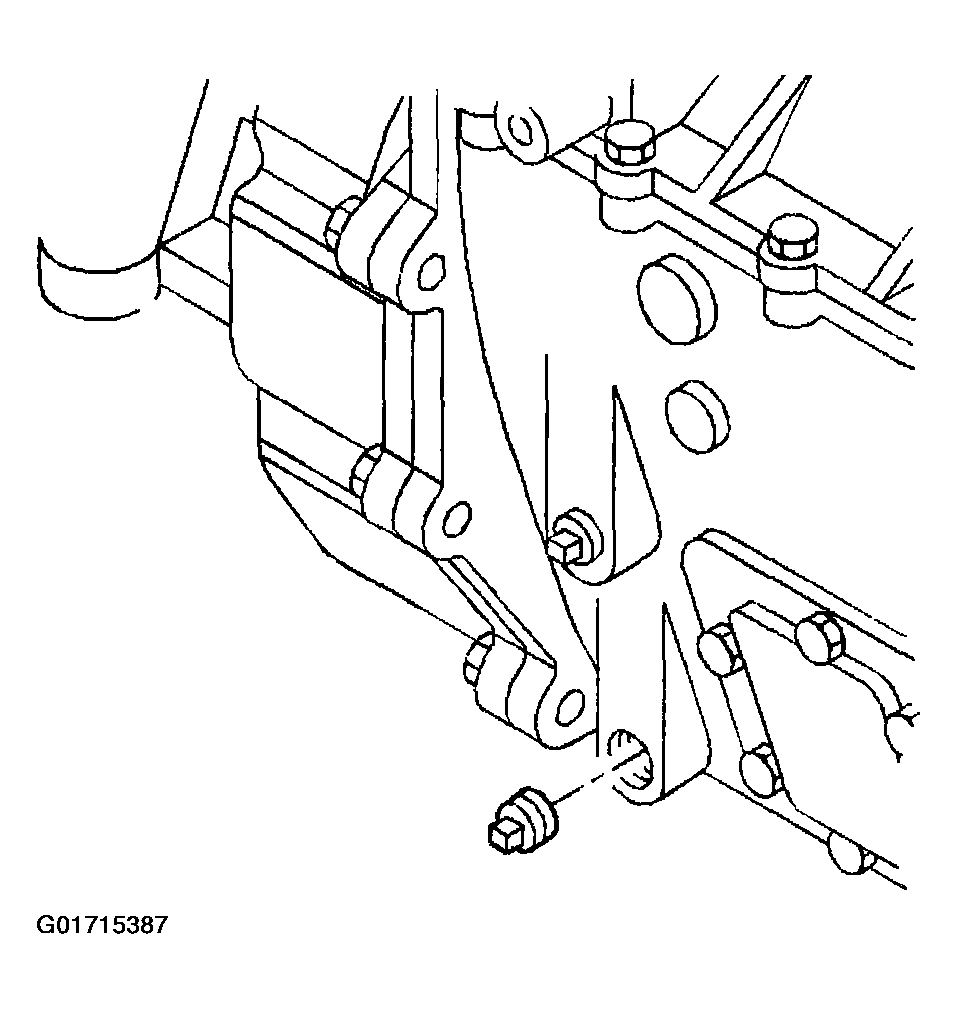

    5. Fig 2: Transmission Oil Drain Plug
    G01715387Courtesy of GENERAL MOTORS CORP.
  5. Remove any old sealant from the transmission housing.
