Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important: DO NOT move the shift lever assembly adjustment nut if replacing the control lever.

Remove the control lever.

Fig 1: Control Lever
Courtesy of GENERAL MOTORS CORP.
Remove the control lever boot retainer plastic retainers, if necessary.
Remove the control lever boot retainer, if necessary.

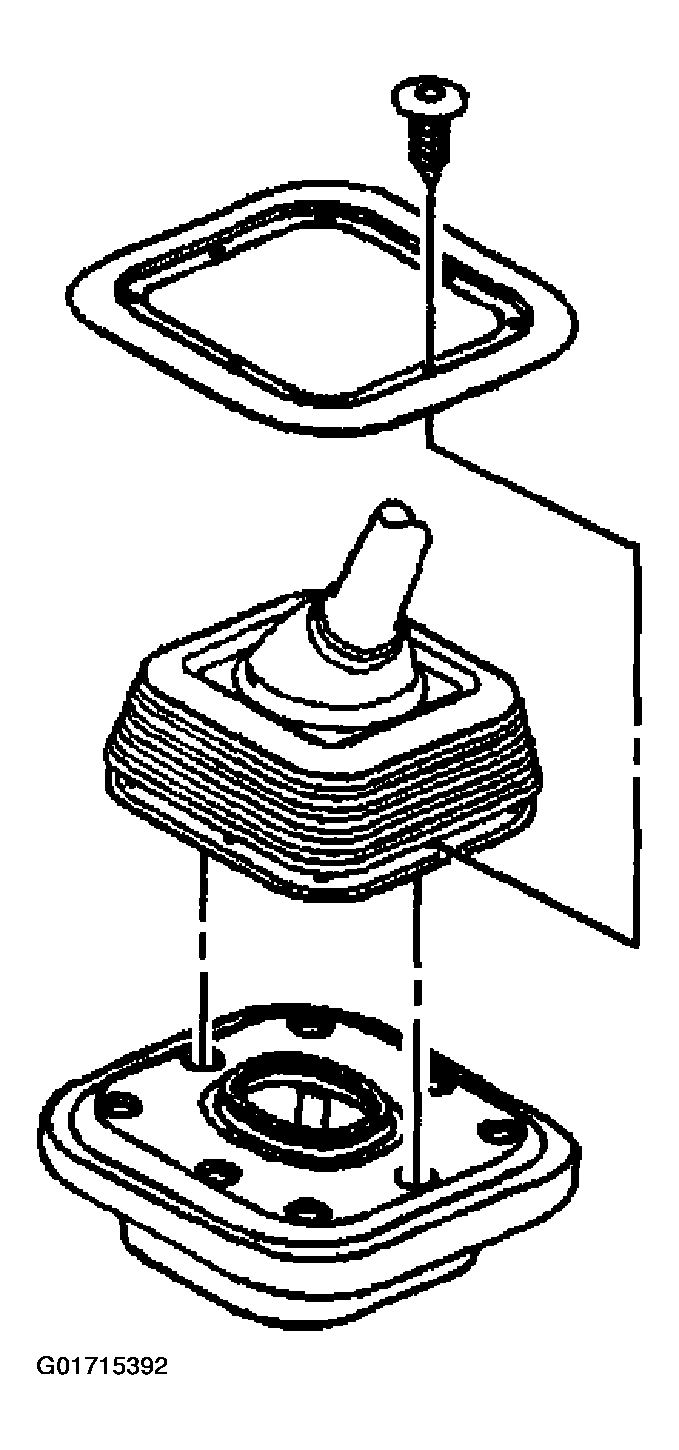

Fig 2: Control Lever Boot Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the control lever boot screws, if necessary.
Remove the control lever boot, if necessary.

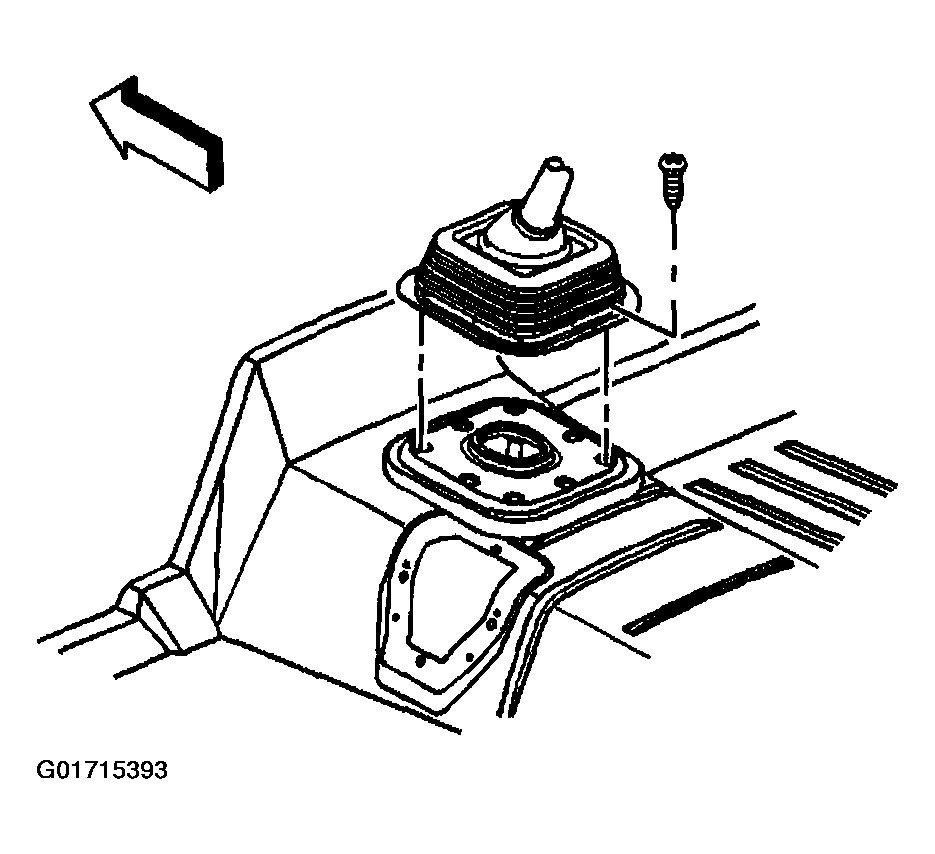

Fig 3: Control Lever Boot

Courtesy of GENERAL MOTORS CORP.

Remove the control lever insulator, if necessary.
