Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Disconnect the backup lamp switch electrical connector (1).

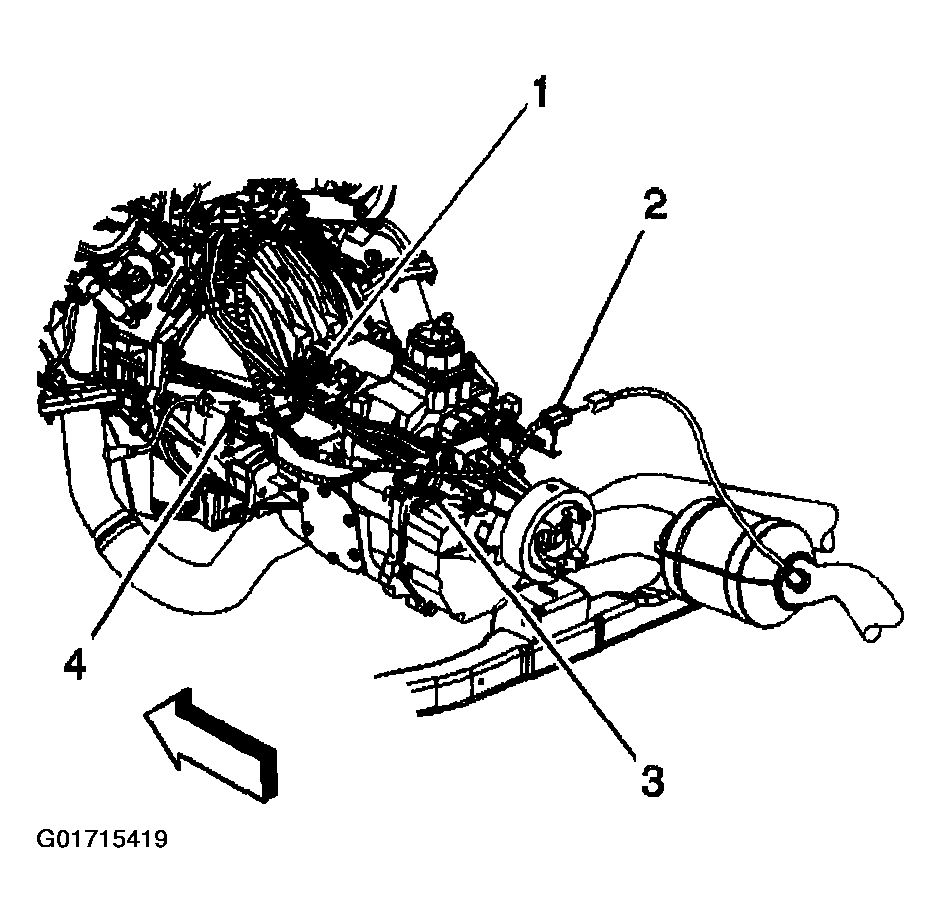

    Fig 1: Backup Lamp Switch Electrical Connector
    G01715419Courtesy of GENERAL MOTORS CORP.
  3. Remove the backup lamp switch and seal.

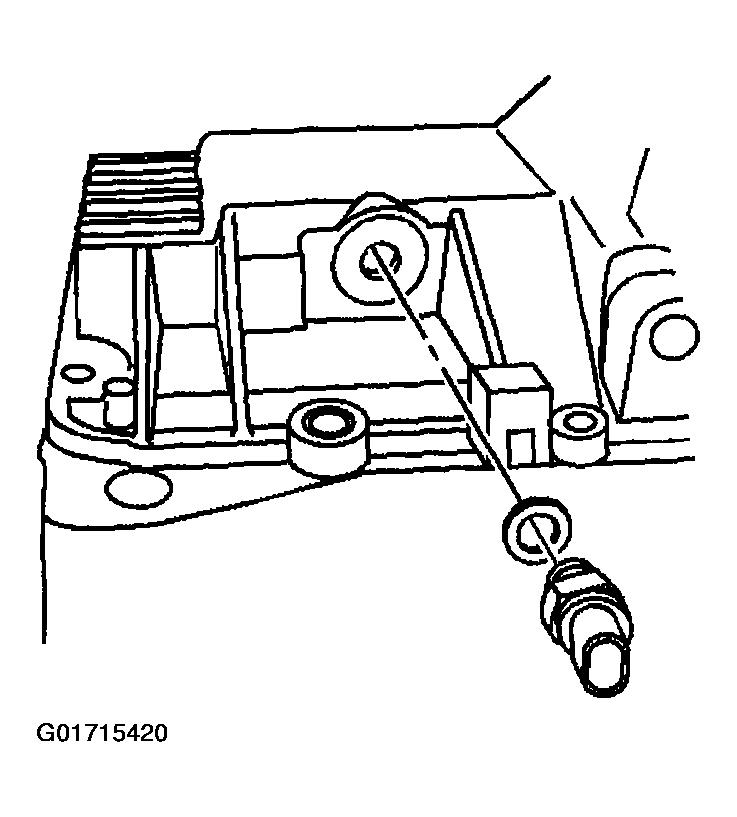

    Fig 2: Backup Lamp Switch & Seal
    G01715420Courtesy of GENERAL MOTORS CORP.
