Manual Transmission Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

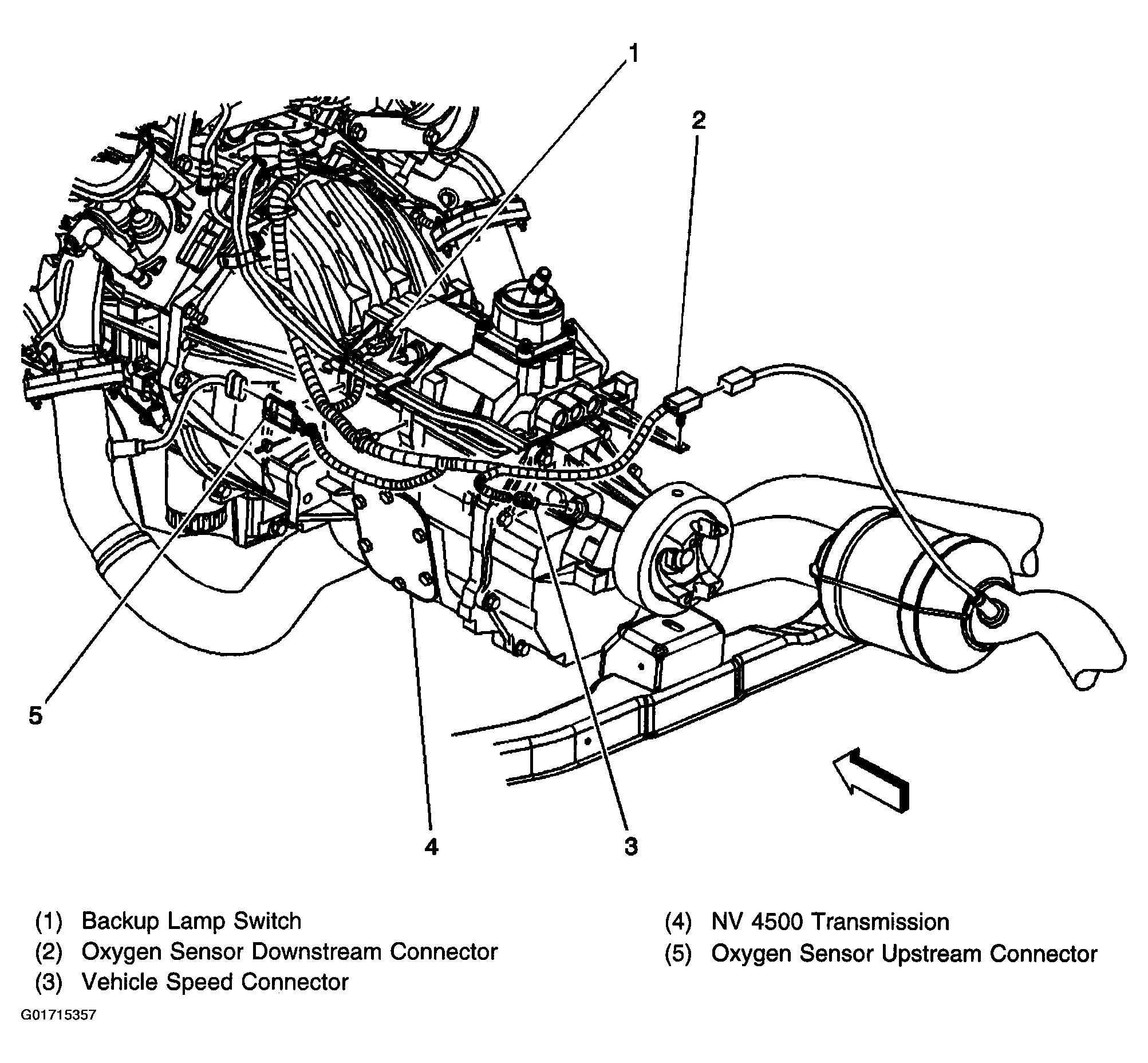

Fig 1: Locating Manual Transmission - NV 4500 Components
G01715357Courtesy of GENERAL MOTORS CORP.

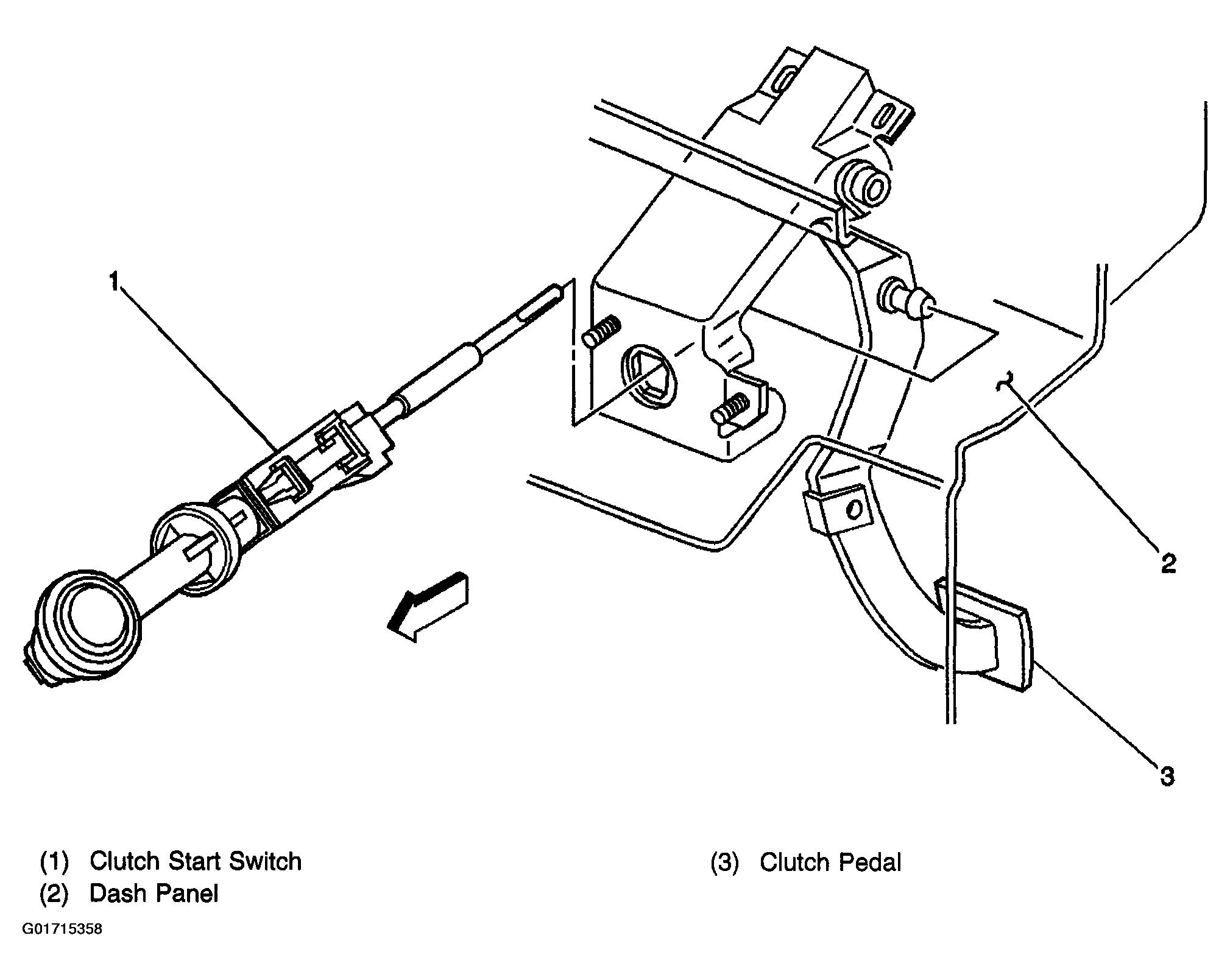

Fig 2: Locating Clutch Start Switch
G01715358Courtesy of GENERAL MOTORS CORP.
