Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Broken or deteriorated mounts can cause misalignment and destruction of certain drive train components. When a single mount breaks, the remaining mounts are subjected to abnormally high stresses.
  1. Raise and suitably support the vehicle.
  2. Remove the transmission mount to crossmember nut.
    Fig 1: Transmission Mount To Crossmember Nut
    G01715308Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission mount to transmission bolts.
  4. Raise the transmission just enough in order to permit removal of the mount using a suitable transmission jack.
  5. Remove the transmission mount.

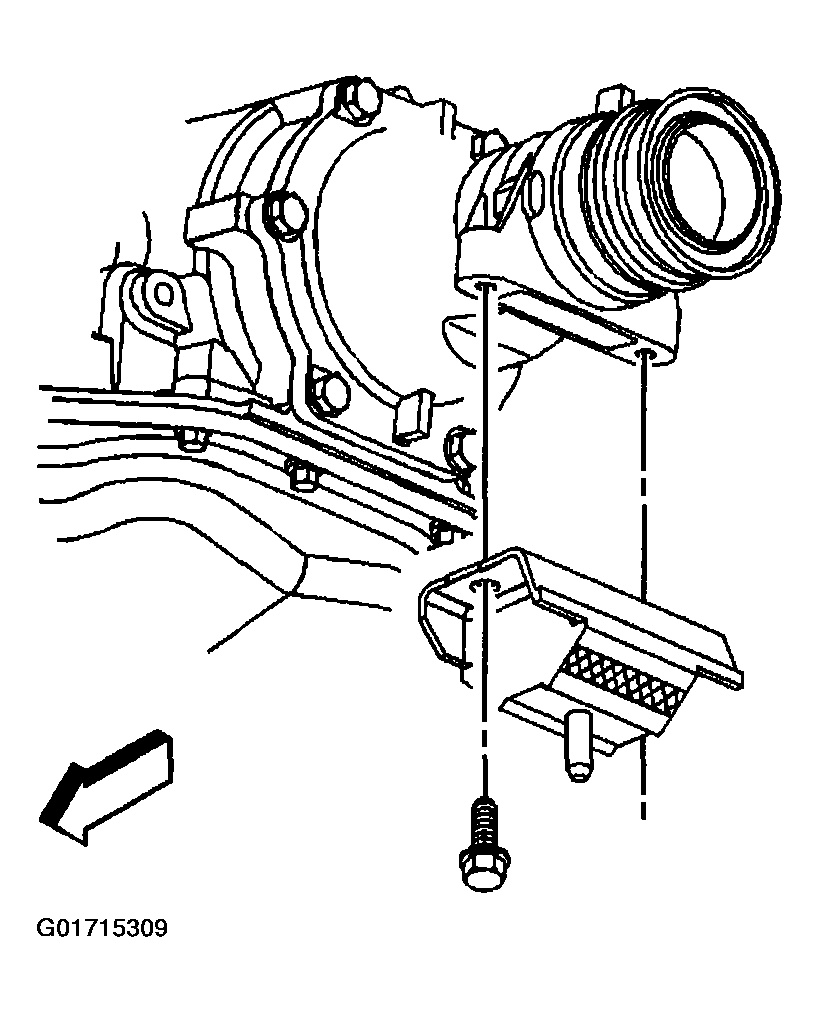

    Fig 2: Transmission Mount
    G01715309Courtesy of GENERAL MOTORS CORP.
