Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

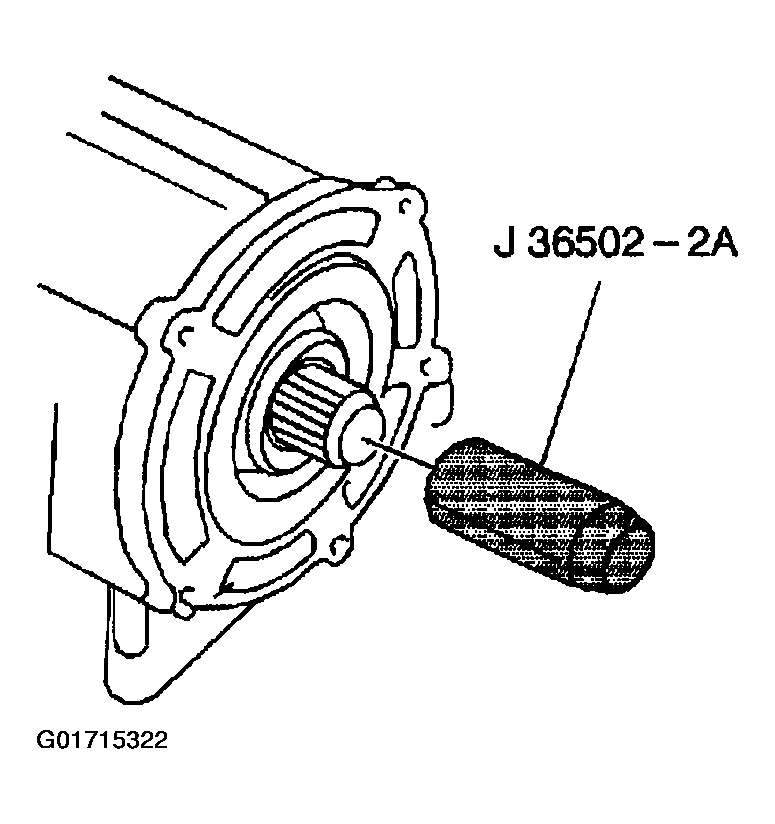

  1. Position the J 36502-2A  over the output shaft.
    Fig 1: Positioning J 36502-2A Over Output Shaft
    G01715322Courtesy of GENERAL MOTORS CORP.

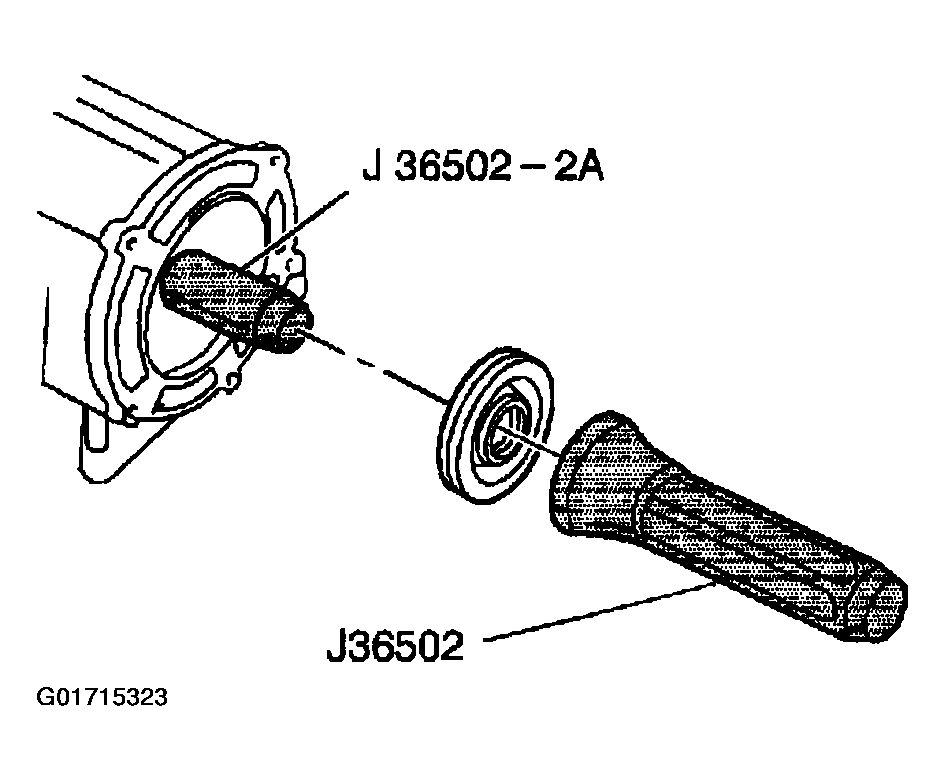

  2. Using J 36502  , install the NEW output shaft seal.
    Fig 2: Installing Output Shaft Seal
    G01715323Courtesy of GENERAL MOTORS CORP.
  3. Remove the J 36502-2A  from the output shaft.
  4. Fill the space between the seal lips with grease GM P/N 1052497 or equivalent.

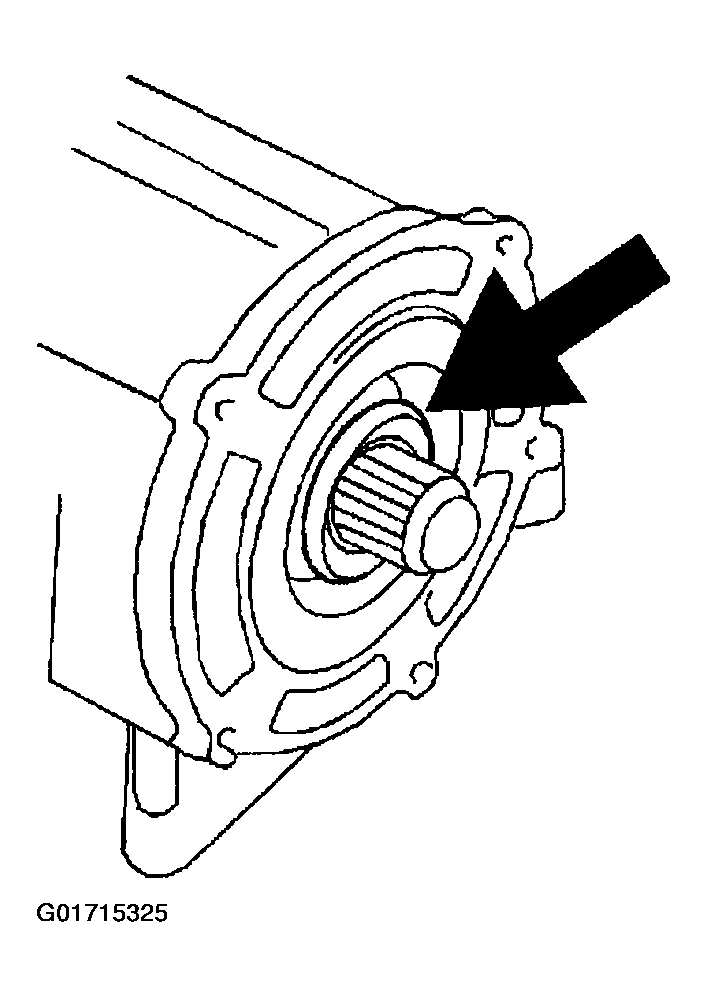

    5. Fig 3: Filling Space Between Seal Lips With Grease
    G01715325Courtesy of GENERAL MOTORS CORP.
  5. Install transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT NVG 236/246-NP8 (TWO SPEED AUTOMATIC) or TRANSFER CASE ASSEMBLY REPLACEMENT NVG 261-NP2 (TWO SPEED MANUAL) .
  6. Check the transmission fluid level. Add as necessary.
  7. Lower the vehicle.
