Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Disconnect the backup lamp switch electrical connector (3).

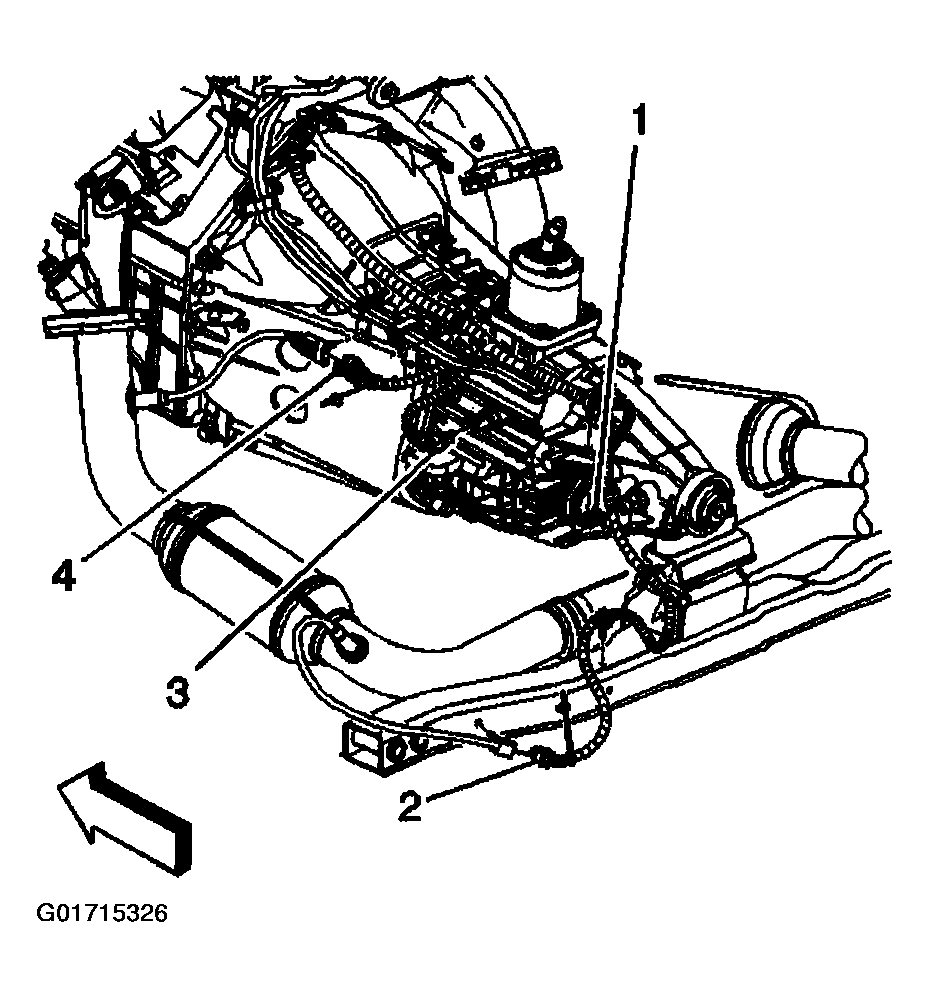

    Fig 1: Locating Backup Lamp Switch Electrical Connector
    G01715326Courtesy of GENERAL MOTORS CORP.
  3. Remove the backup lamp switch.

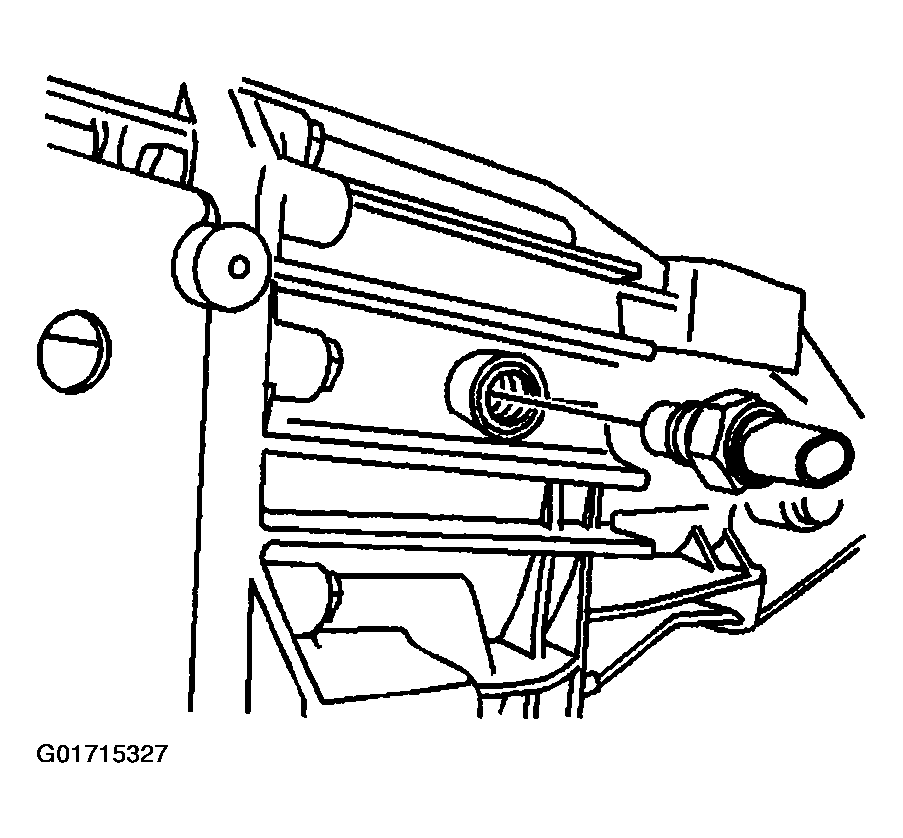

    Fig 2: Backup Lamp Switch
    G01715327Courtesy of GENERAL MOTORS CORP.
