Manual Transmission Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

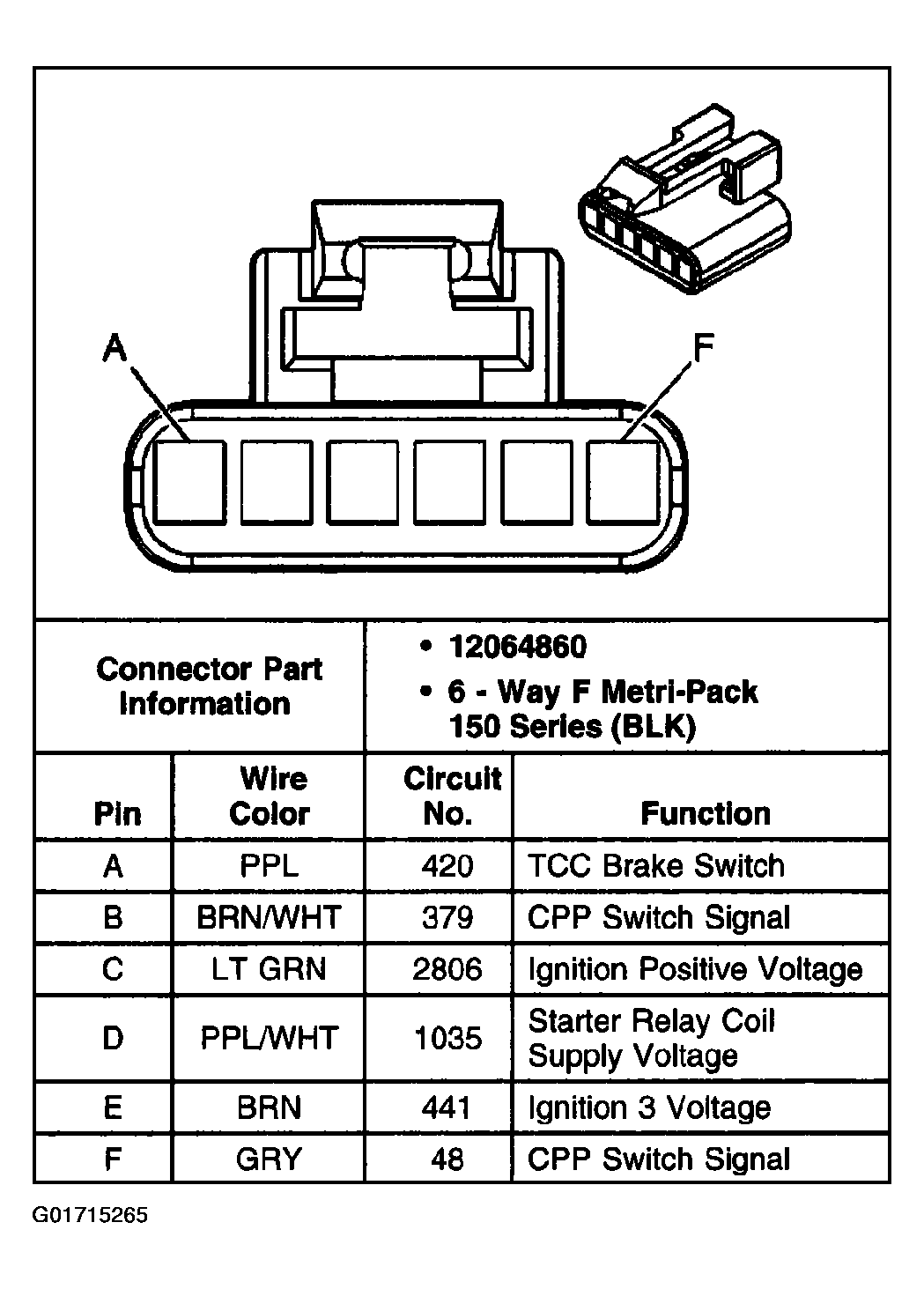

Fig 1: Identifying Clutch Start Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

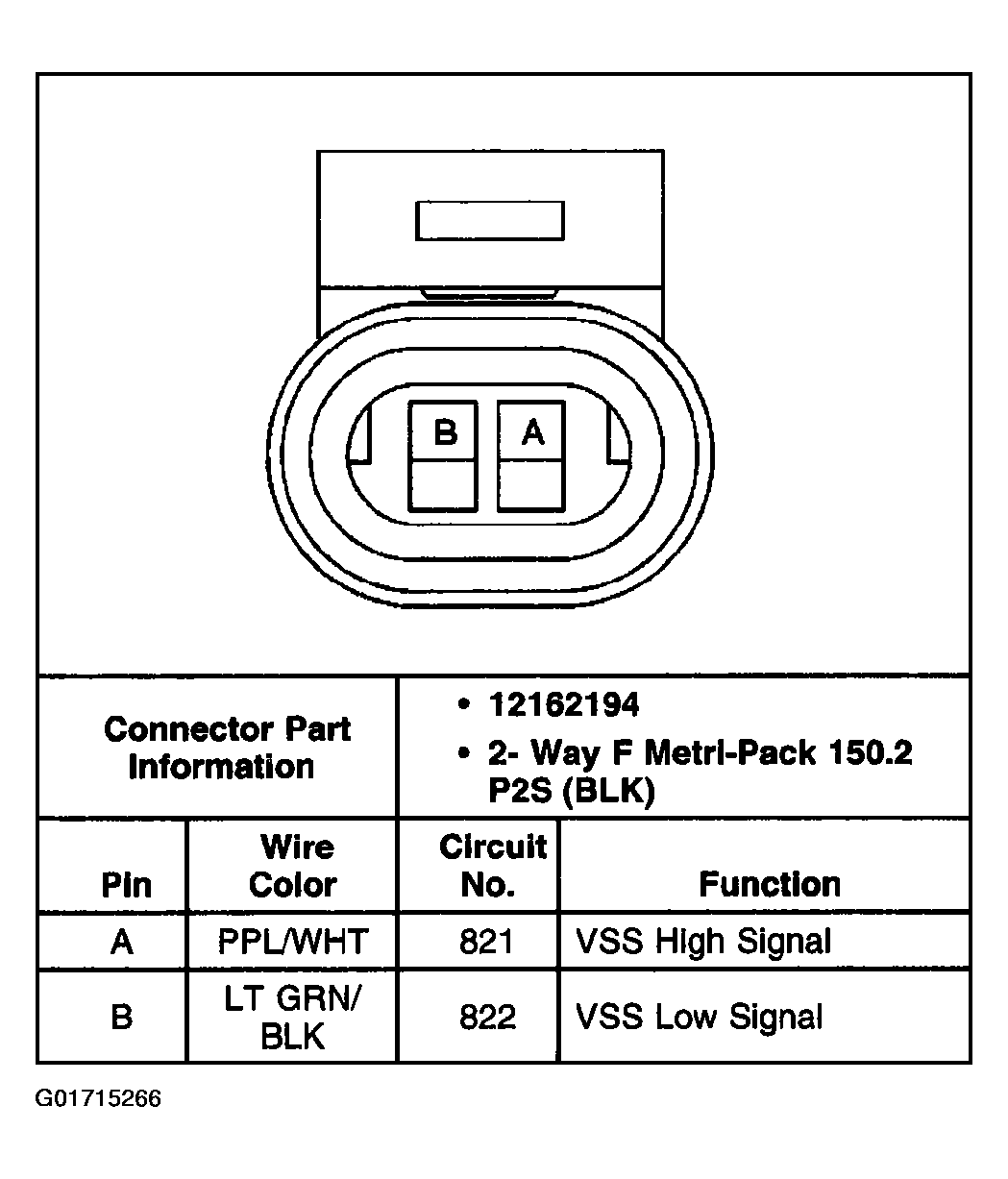

Fig 2: Identifying Vehicle Speed Sensor Assembly Connector Terminals

Courtesy of GENERAL MOTORS CORP.
