Section 754 (Manual Transmission - NV 3500)
>>
Component Locator
>>
Manual Transmission Component Views
Manual Transmission Component Views
WARNING:
This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

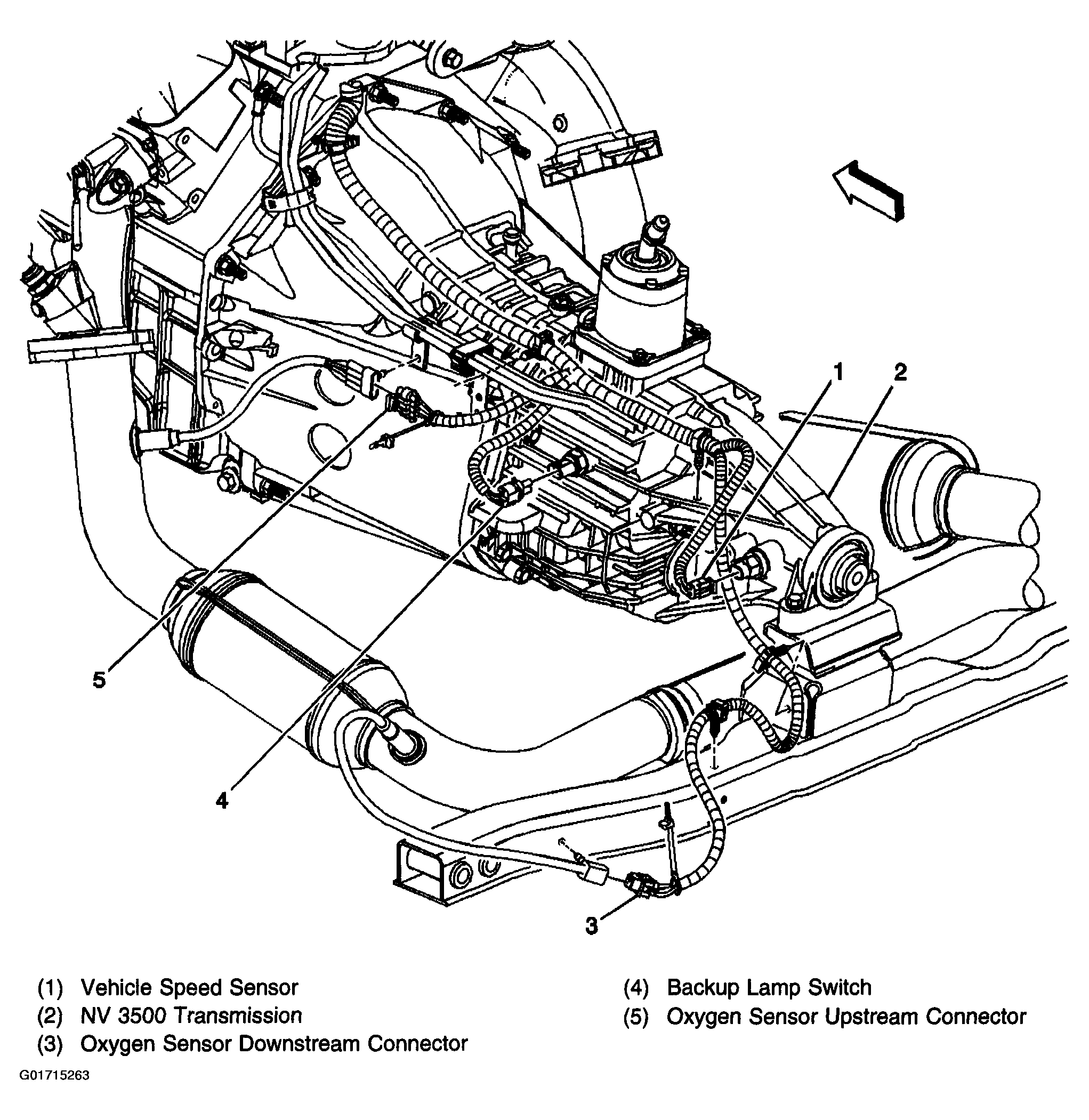

Fig 1: Locating Manual Transmission - NV 3500 Components
Courtesy of GENERAL MOTORS CORP.

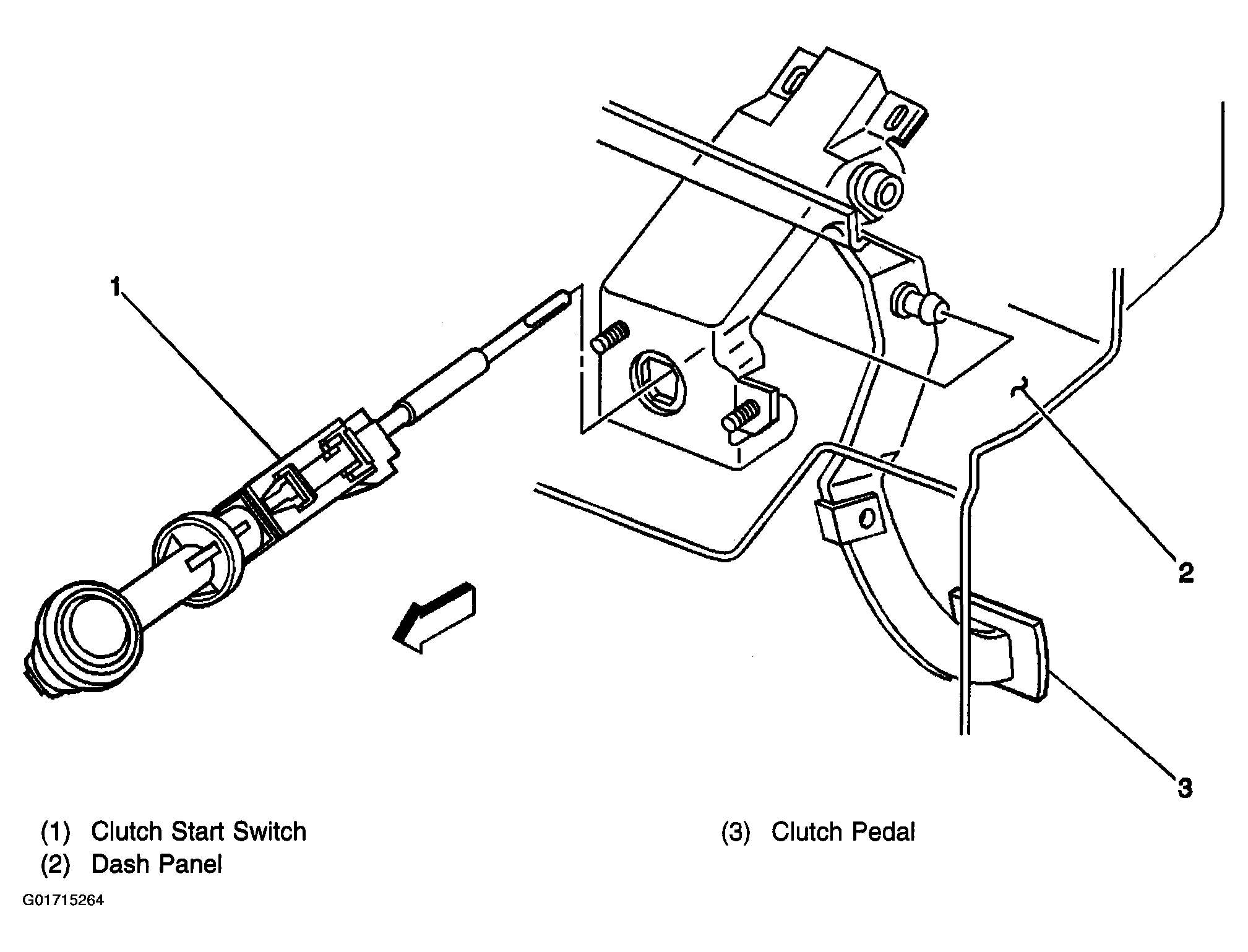

Fig 2: Locating Clutch Start Switch
Courtesy of GENERAL MOTORS CORP.
