Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly.
  2. Release the wiring harness from the retainers on the air cleaner mounting bracket and position it aside.

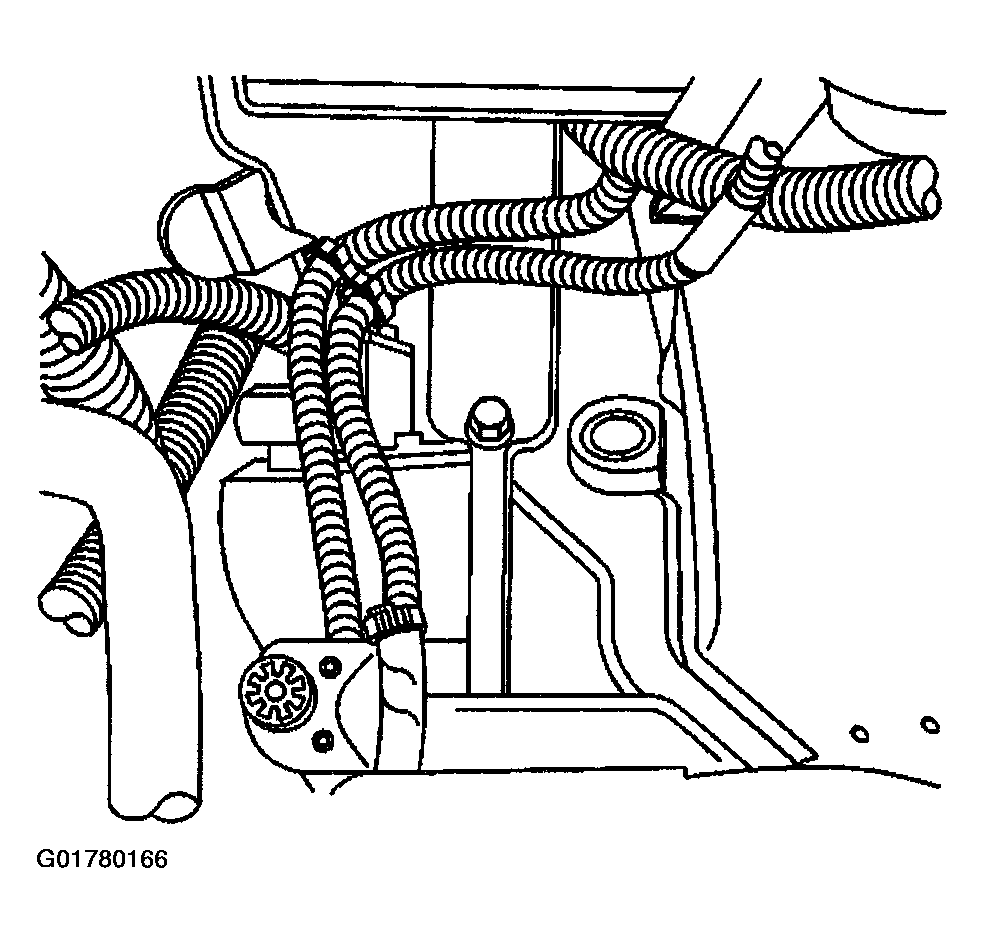

    Fig 1: Locating Wiring Harness On Air Cleaner Mounting Bracket
    G01780166Courtesy of GENERAL MOTORS CORP.
  3. Reach under the front of the electrical center and press up on the relief in order to release the tab.
  4. While pressing up, slide the electrical center toward the front of the vehicle to remove it from the air cleaner mounting bracket.
  5. Position the electrical center aside in order to access the air cleaner mounting bracket bolts.

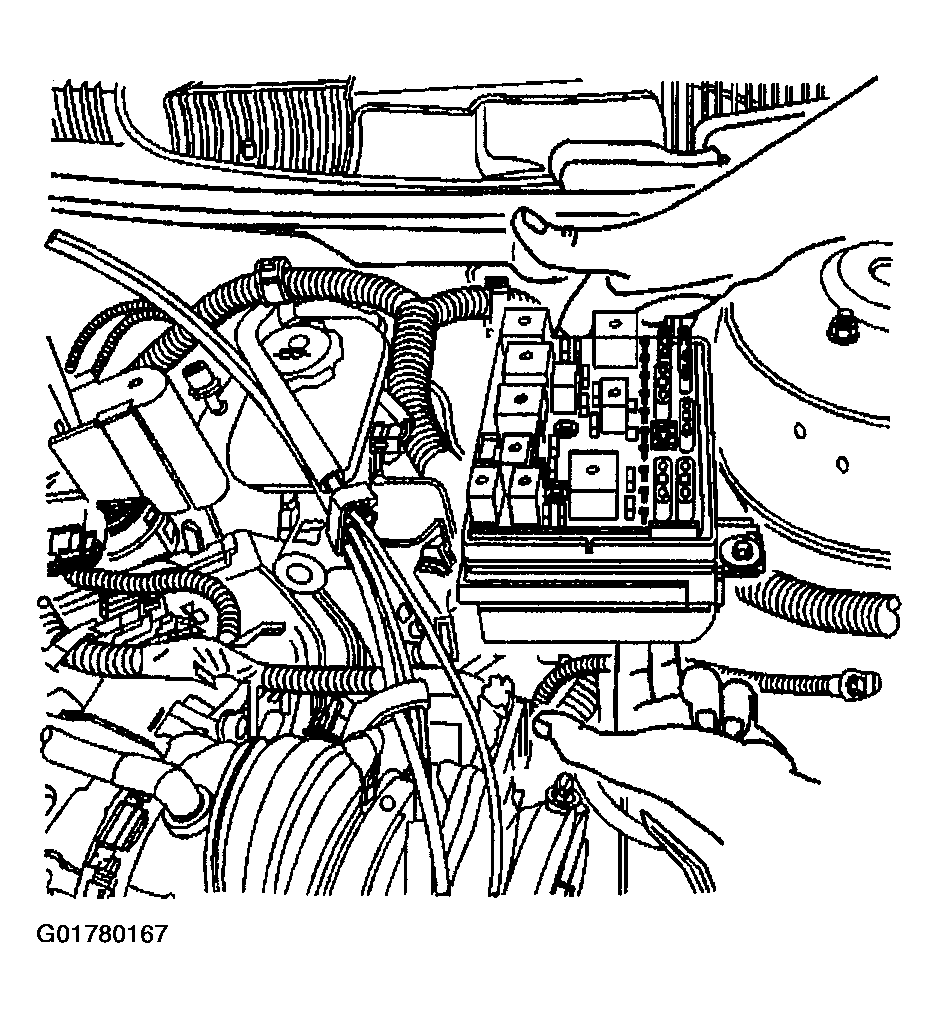

    Fig 2: Removing Electrical Center
    G01780167Courtesy of GENERAL MOTORS CORP.
  6. Remove the air cleaner mounting bracket bolts from the body.

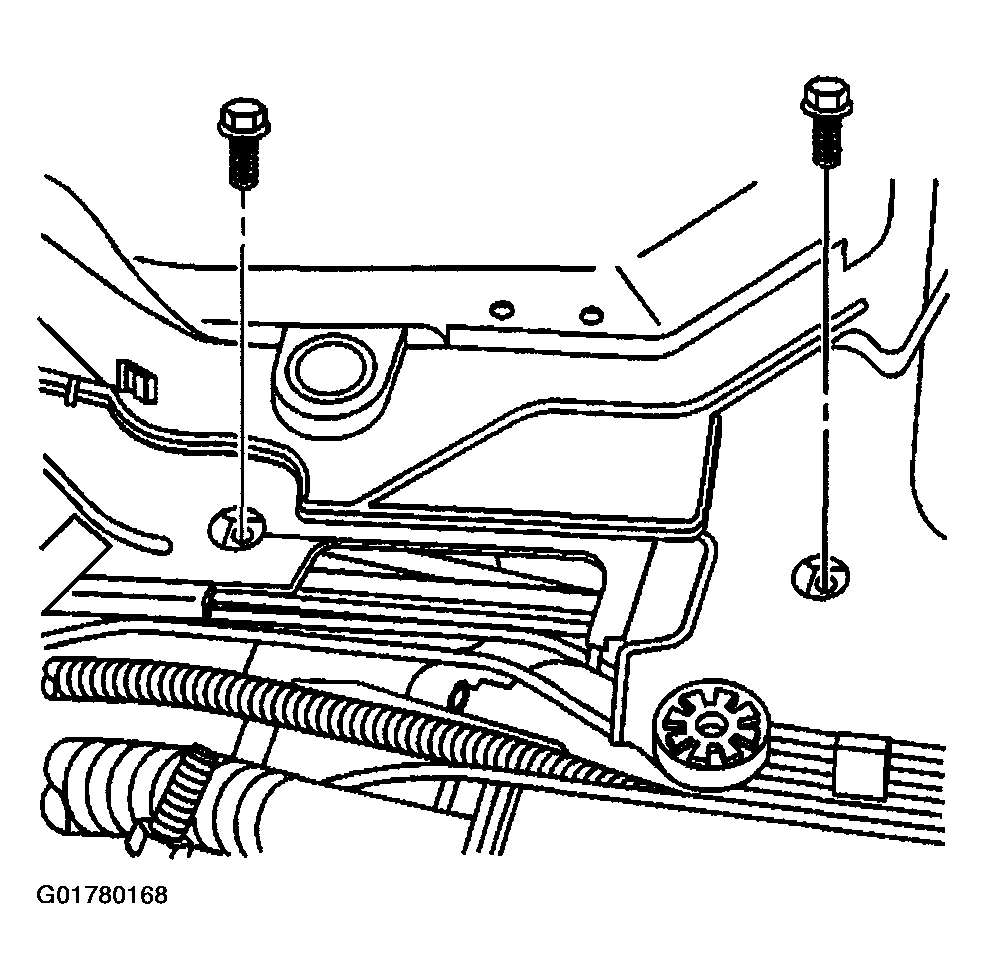

    Fig 3: Removing Air Cleaner Mounting Bracket Bolts Body
    G01780168Courtesy of GENERAL MOTORS CORP.
  7. Remove the air cleaner mounting bracket bolts from the strut tower.
  8. Remove the air cleaner mounting bracket from the vehicle.

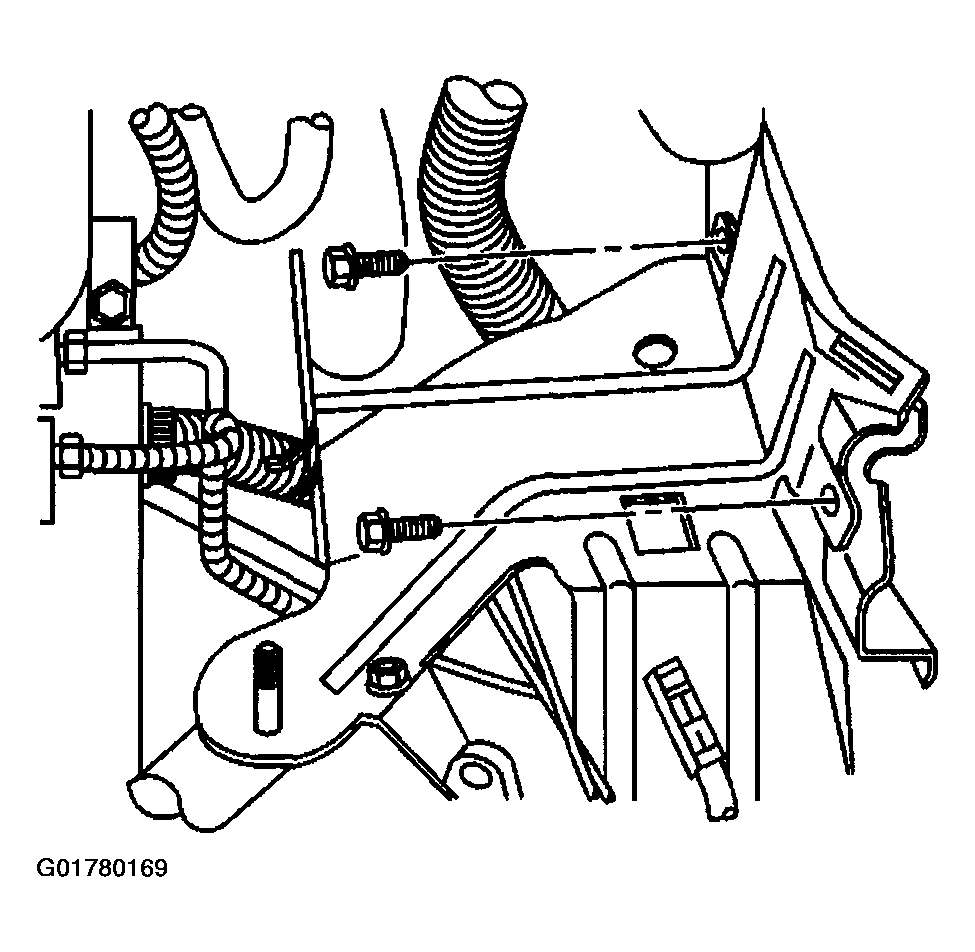

    Fig 4: Removing Air Cleaner Mounting Bracket Bolts From Strut Tower
    G01780169Courtesy of GENERAL MOTORS CORP.
