Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the air cleaner mounting bracket to the vehicle.
CAUTION: Refer to FASTENER NOTICE .
Install the air cleaner mounting bracket to strut tower bolts.
Tighten

Tighten the air cleaner mounting bracket to strut tower bolts to 10 N.m (89 lb in).

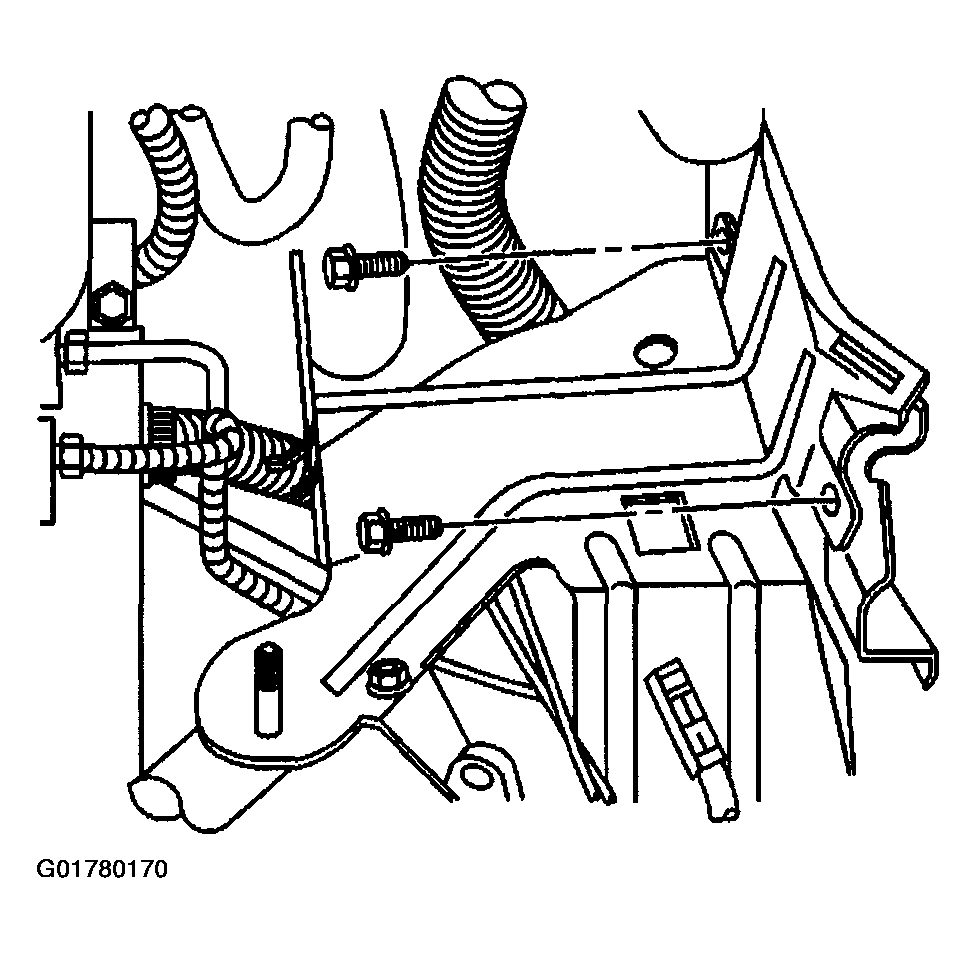

Fig 1: Installing Air Cleaner Mounting Bracket Bolts To Strut Tower
Courtesy of GENERAL MOTORS CORP.
Install the air cleaner mounting bracket to body bolts.
Tighten

Tighten the air cleaner mounting bracket to body bolts to 10 N.m (89 lb in).

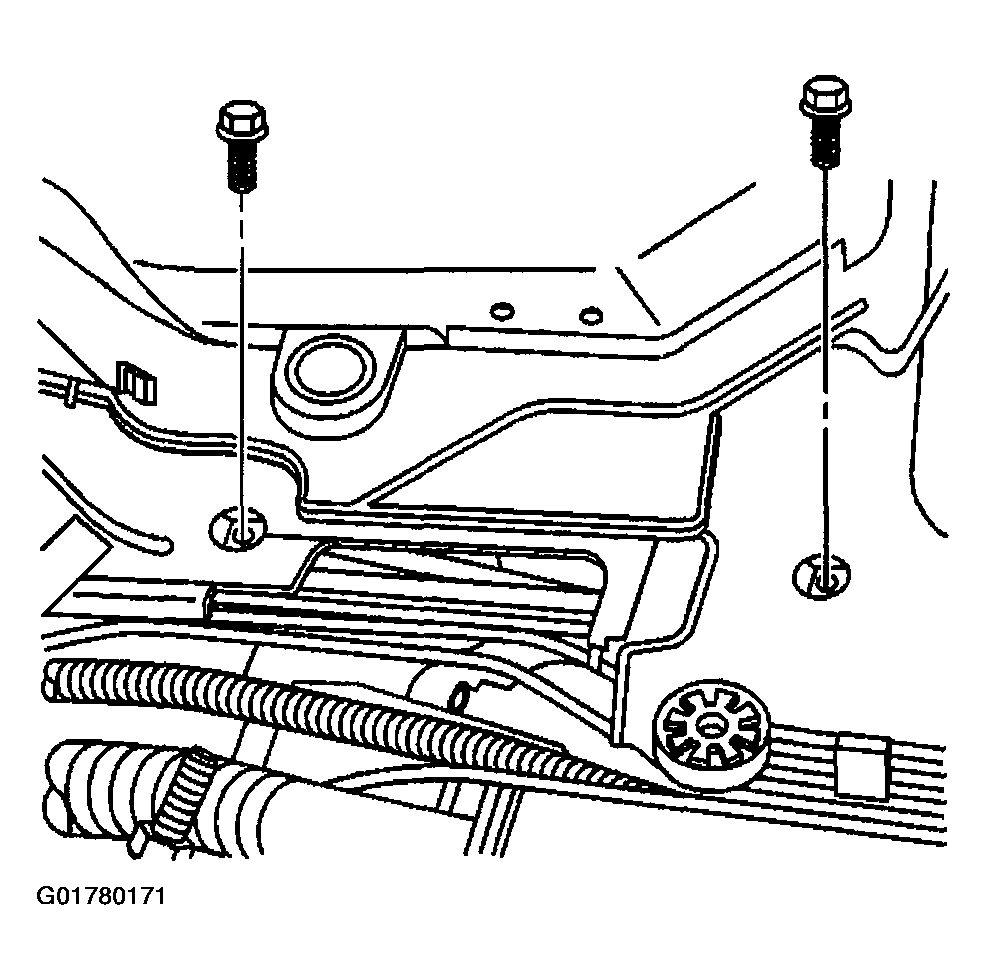

Fig 2: Installing Air Cleaner Mounting Bracket To Body Bolts
Courtesy of GENERAL MOTORS CORP.
Place the wiring harness into position and secure the wiring harness retainers.

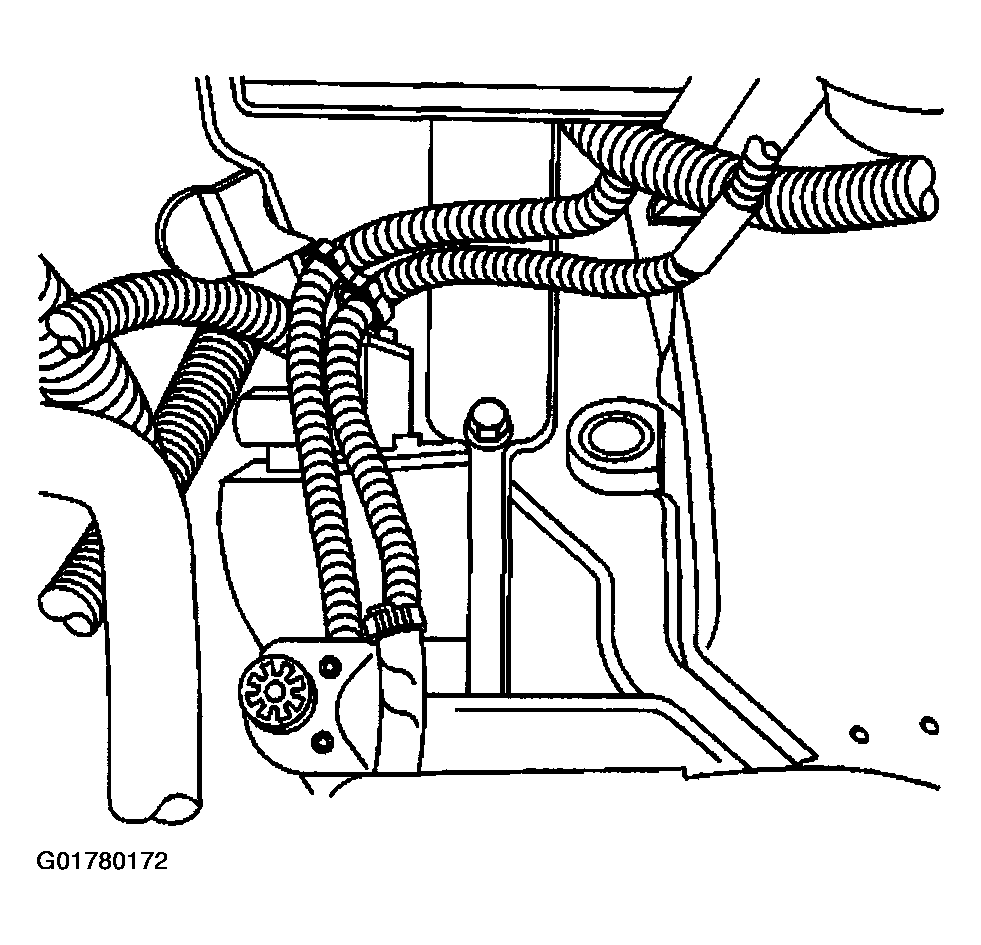

Fig 3: Locating Wiring Harness On Air Cleaner Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Position the electrical center to the air cleaner mounting bracket.
Slide the electrical center toward the rear of the vehicle to engage the retainer.

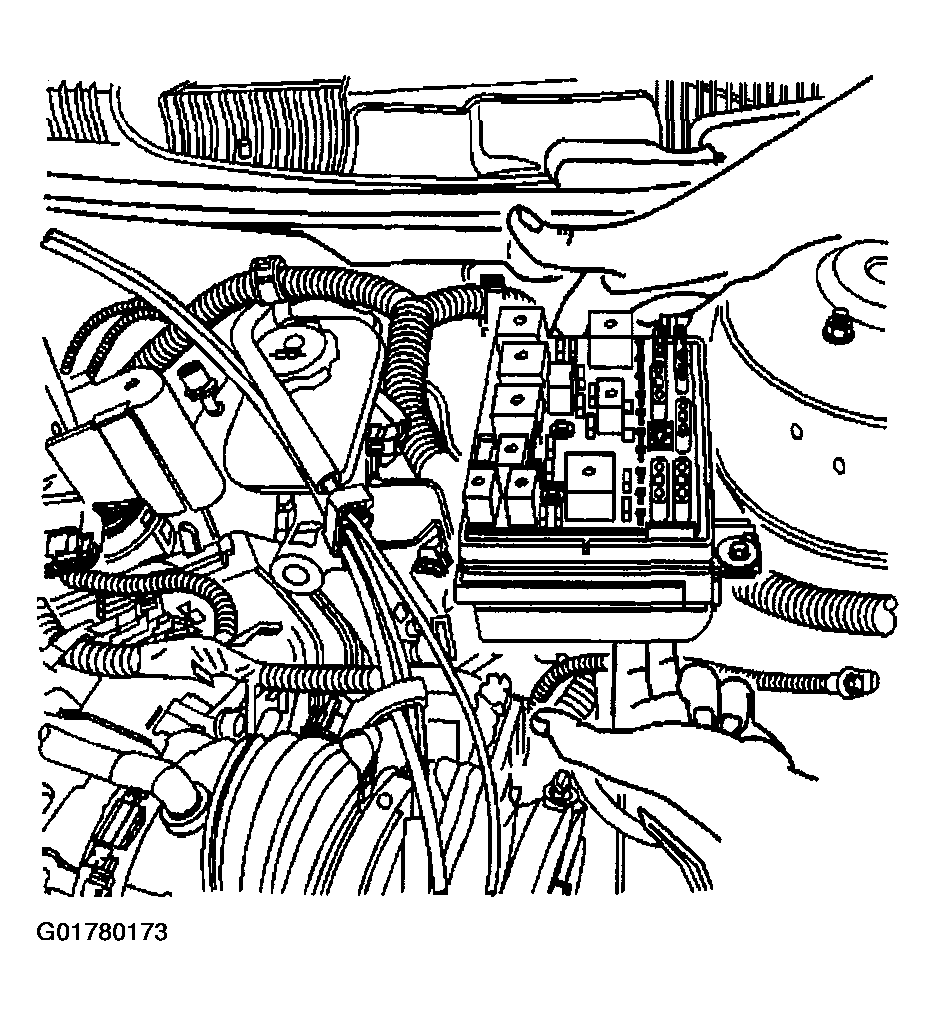

Fig 4: Installing Electrical Center

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner assembly.
