Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Mark the location of the hood latch striker on the hood.
  3. Remove the hood latch striker bolts (2) from the hood.
  4. Remove the hood latch striker (1) from the hood.

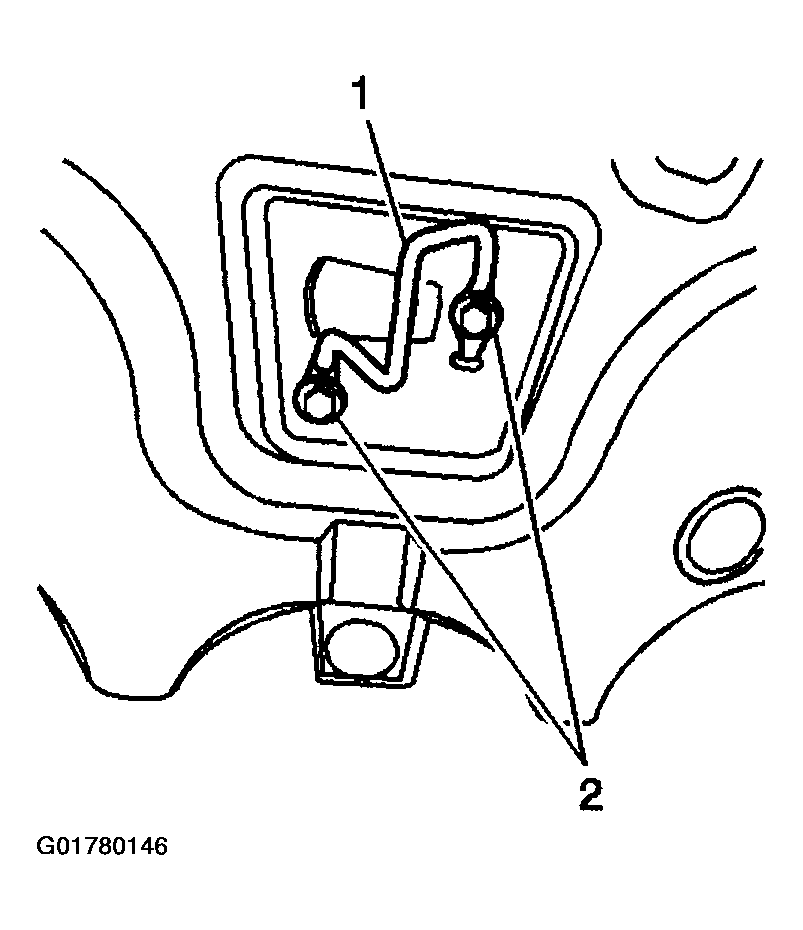

    Fig 1: Removing Hood Latch Striker
    G01780146Courtesy of GENERAL MOTORS CORP.
