Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood latch striker (1) to the hood to the marks on the hood.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the hood latch striker bolts (2) to the hood.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Adjust the hood latch striker if necessary.
  4. Close the hood.

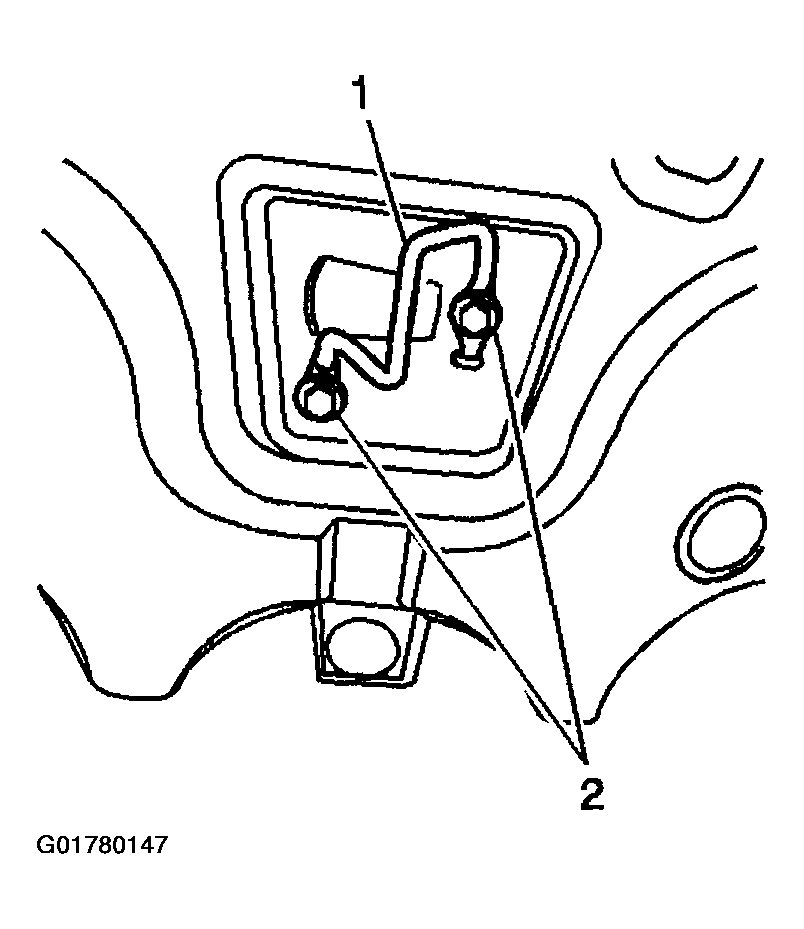

    Fig 1: Installing Hood Latch Striker
    G01780147Courtesy of GENERAL MOTORS CORP.
