Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Mark the location of the hood latch (2) to the support (1) using a grease pencil.
  3. Remove the hood latch bolts (3) from the support (1).
  4. Disconnect the hood latch cable from the hood latch (2).
  5. Remove the hood latch (2) from the vehicle.

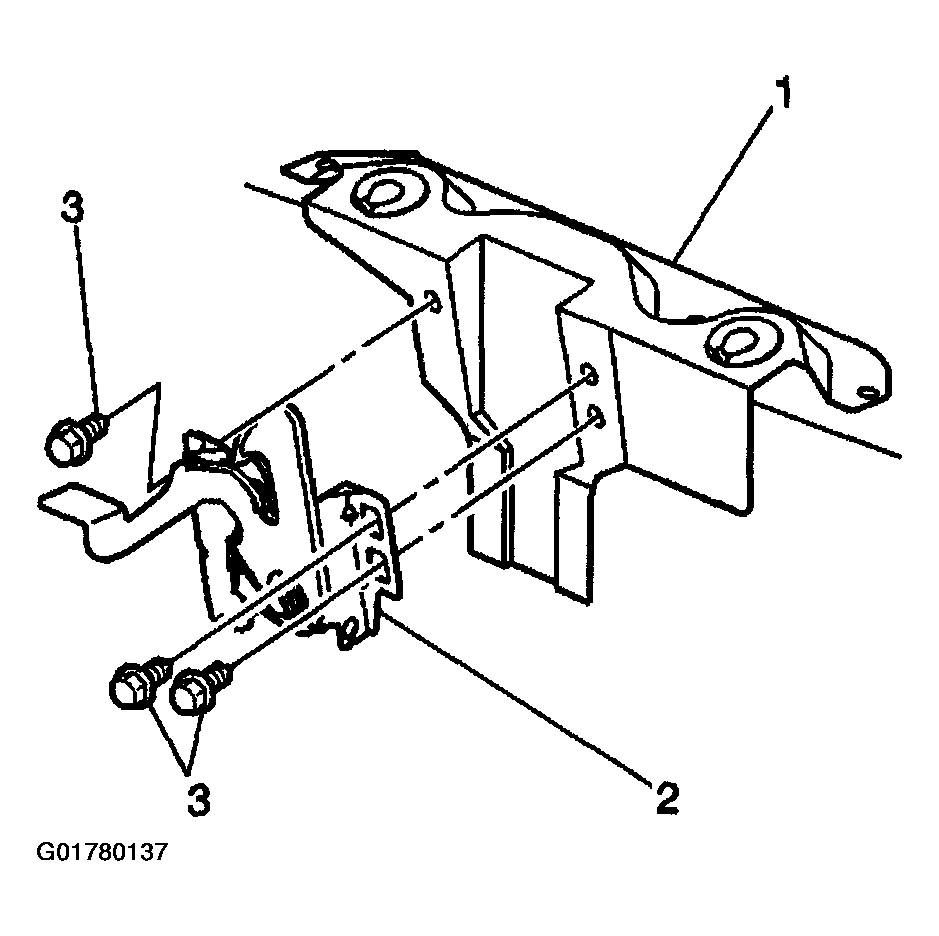

    Fig 1: Removing Hood Latch
    G01780137Courtesy of GENERAL MOTORS CORP.
