Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood insulator (2) to the hood.
  2. Install the hood insulator push-in retainers (3).
  3. Close the hood.

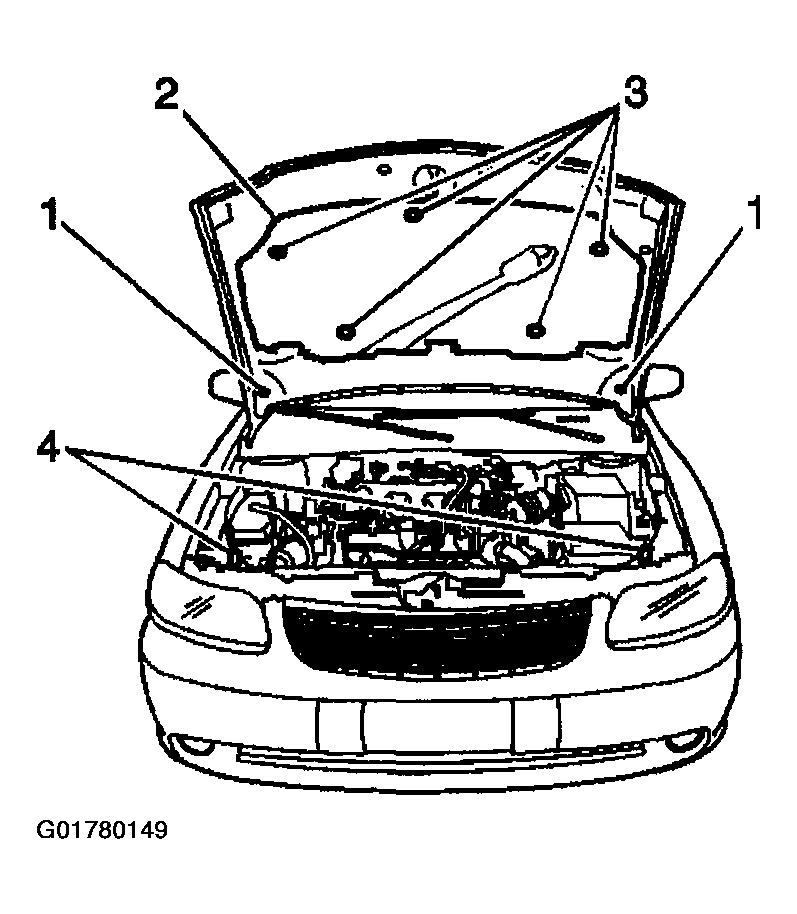

    Fig 1: Locating Hood Components
    G01780149Courtesy of GENERAL MOTORS CORP.
