Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the hood.
  2. Remove the hood hold-open rod from the retainer clip (1).
  3. Use a small, flat-bladed tool to remove the retainer clip (1) from the radiator support.
  4. Remove the hood hold-open rod (2) from the radiator support.
  5. Remove the hood hold-open rod bushing from the radiator support by pulling outward.

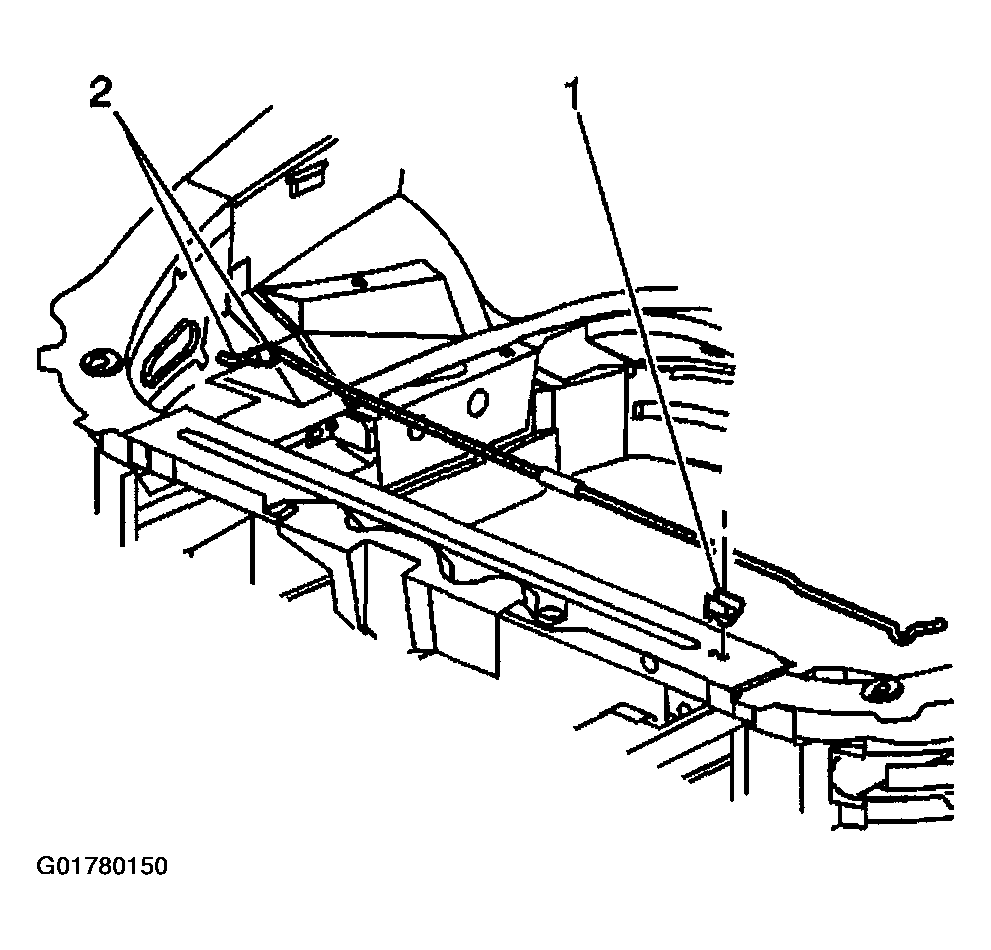

    Fig 1: Removing Hood Hold-Open Rod
    G01780150Courtesy of GENERAL MOTORS CORP.
