Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
  2. Mark the position of the hood hinge on the fender and hood using a grease pencil.
  3. Remove the hood. Refer to Hood Replacement .
  4. Remove the lower hood hinge bolts from the fender.
  5. Remove the hood hinge from the vehicle.

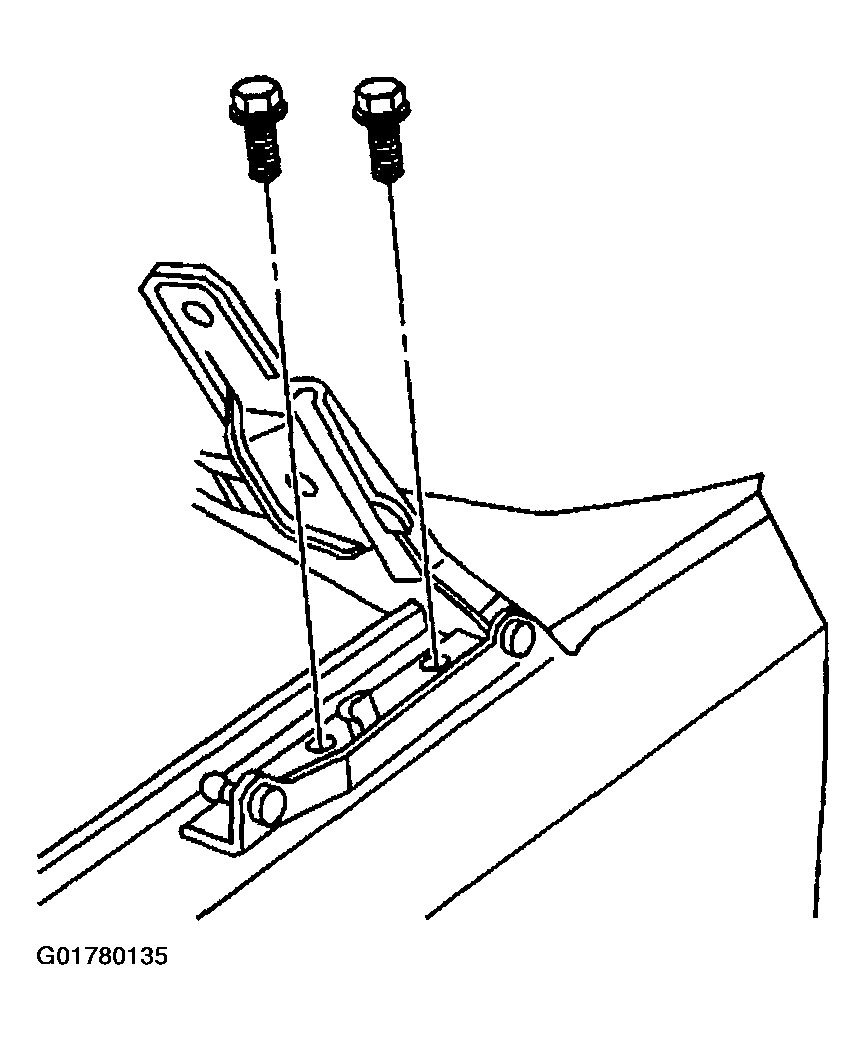

    Fig 1: Removing Hood Hinge
    G01780135Courtesy of GENERAL MOTORS CORP.
