Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the screws from the mud flap, if equipped.
  4. Remove the mud flap from the fender, if equipped.
  5. Remove the front fender liner to front bumper fascia bolts.

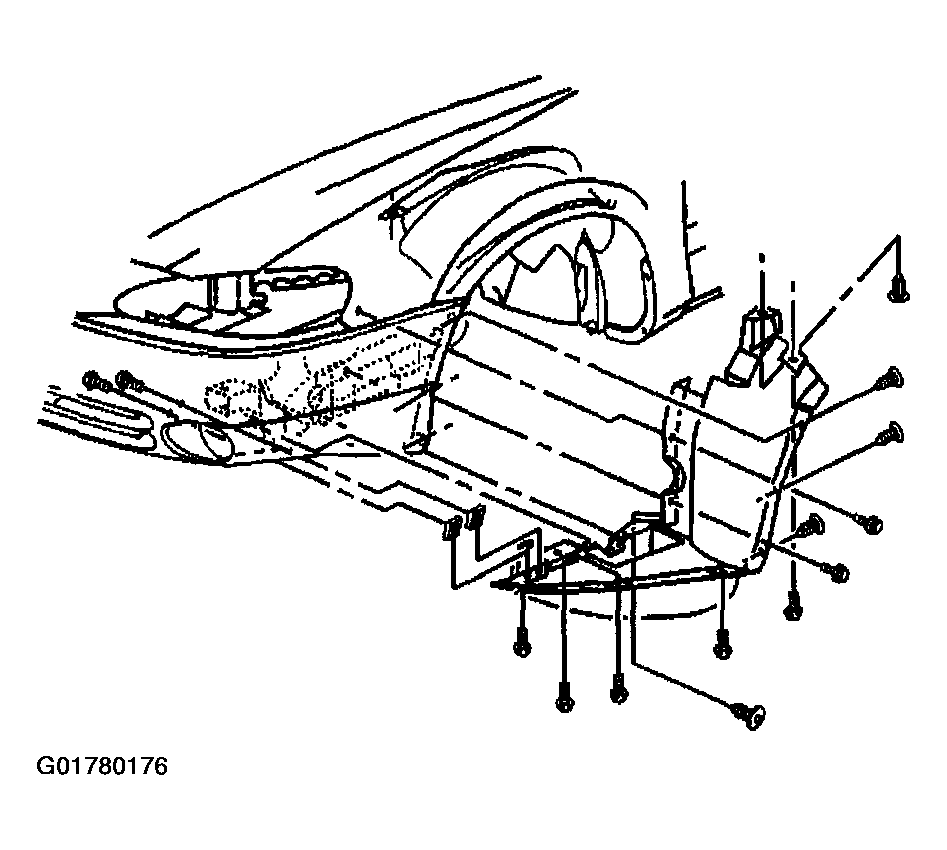

    6. Fig 1: Removing Front Fender Liner To Front Bumper Fascia Bolts
    G01780176Courtesy of GENERAL MOTORS CORP.
  6. Remove the push-in retainers from the front fender liner.
  7. Remove the front fender liner to front fender bolts (4).
  8. Remove the front fender liner from the front fender.

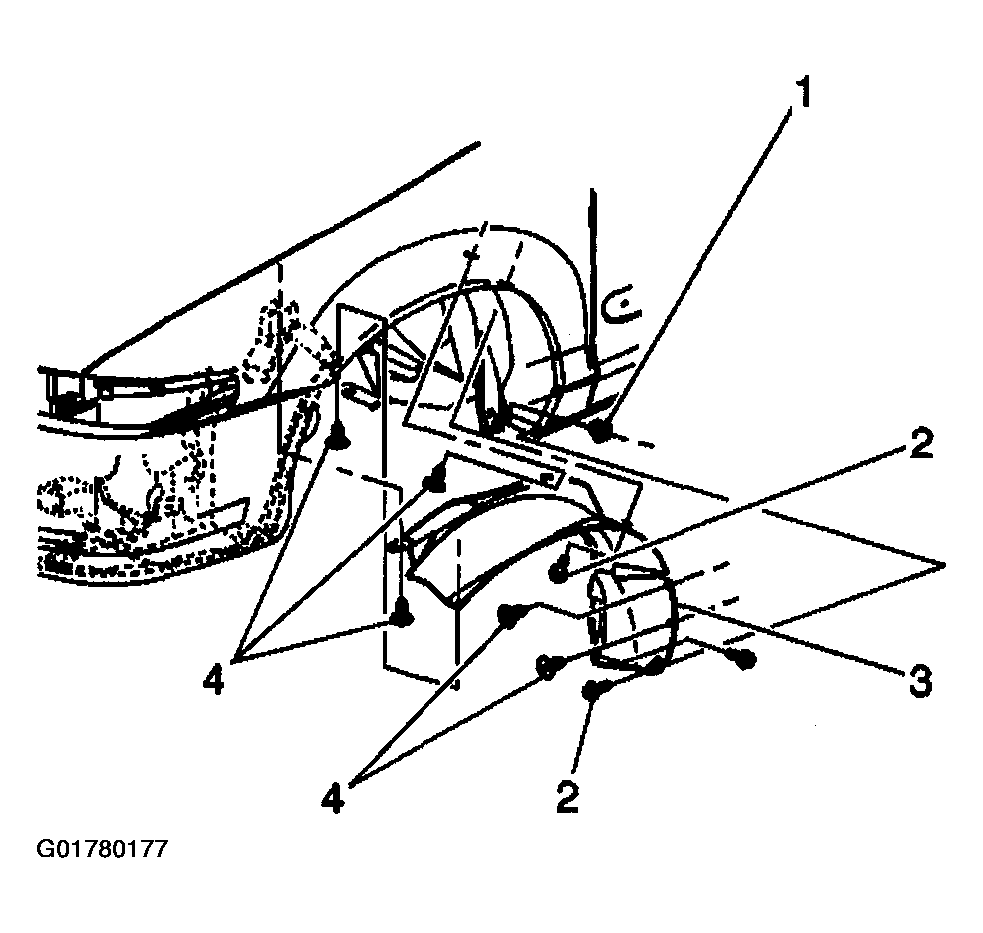

    Fig 2: Removing Front Fender Liner
    G01780177Courtesy of GENERAL MOTORS CORP.
