Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheelhouse panel liner. Refer to Front Fender Liner Replacement .
  2. Remove the front fender sound insulator retainers (1) and (2) from the fender.
  3. Remove the front fender sound insulator (3) from the vehicle.

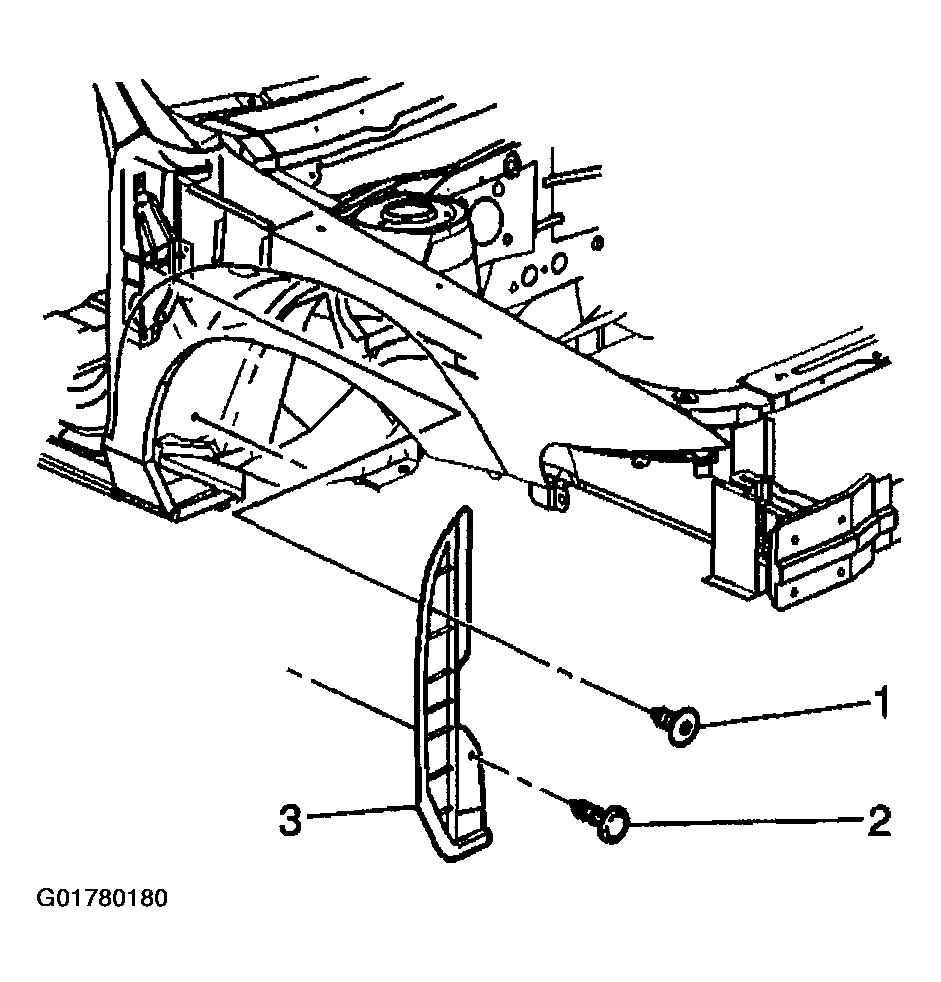

    Fig 1: Removing Front Fender Sound Insulator
    G01780180Courtesy of GENERAL MOTORS CORP.
