Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT .
  2. Remove the bolts attaching the tray.
  3. Remove the tray.

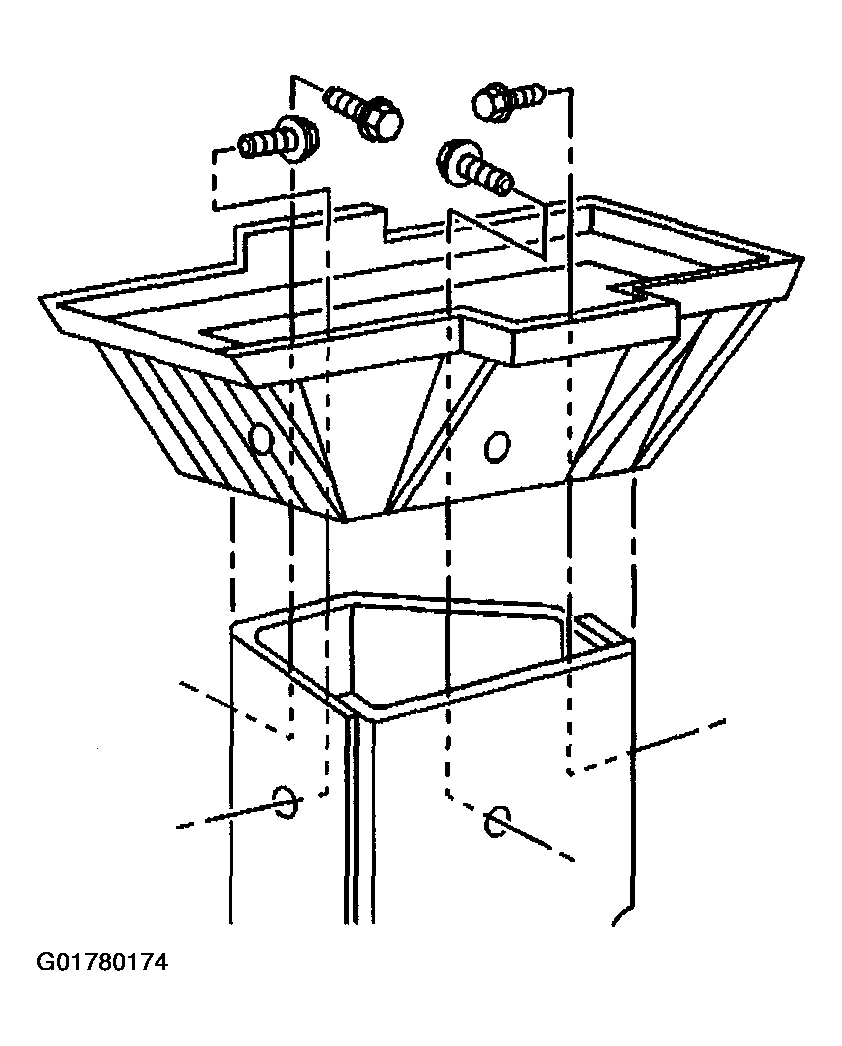

    Fig 1: Removing Battery Tray
    G01780174Courtesy of GENERAL MOTORS CORP.
