Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air inlet grille panel to the vehicle.
  2. Install the air inlet grille panel push-in retainers (1) to the panel.

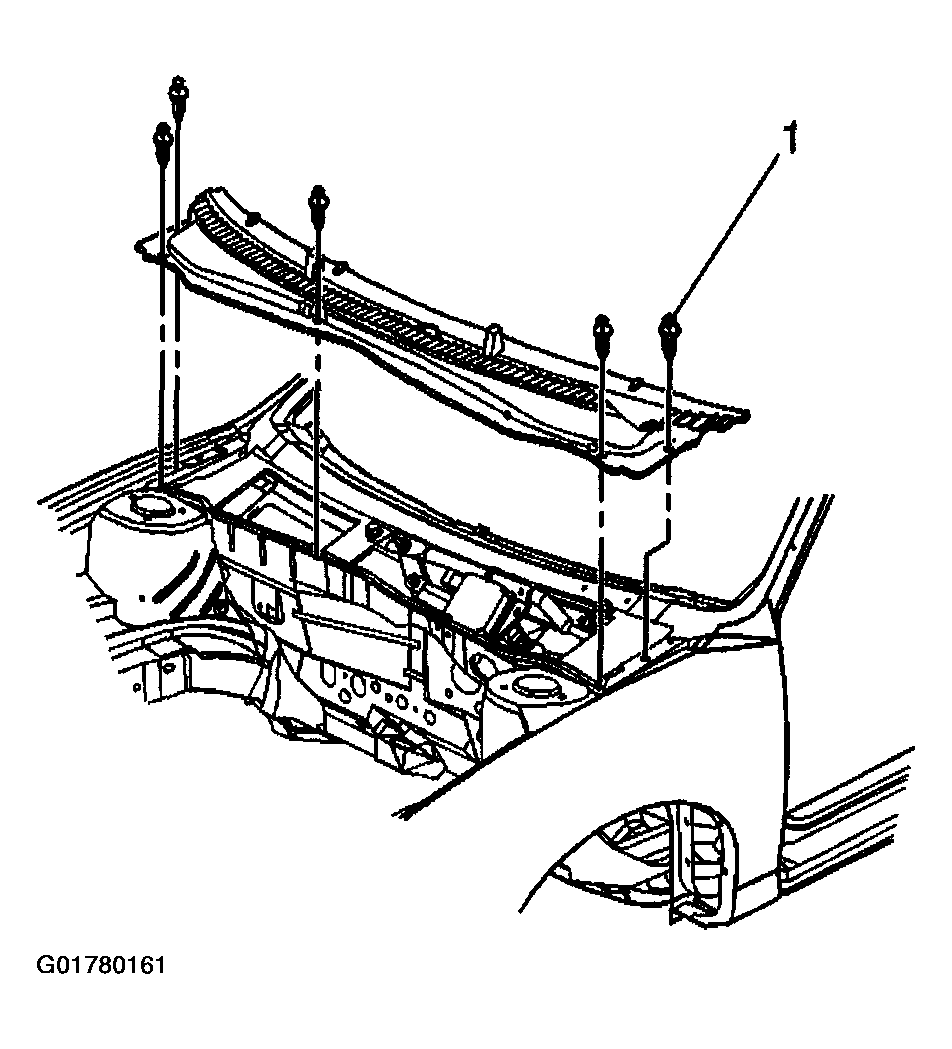

    3. Fig 1: Installing Air Inlet Grille Panel
    G01780161Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer tubing to the air inlet panel.
  4. Install the wiper arms and blade assemblies. Refer to WIPER ARM REPLACEMENT .
  5. Close the hood.
