Water Pump Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump pulley bolts.
  2. Remove the water pump pulley.

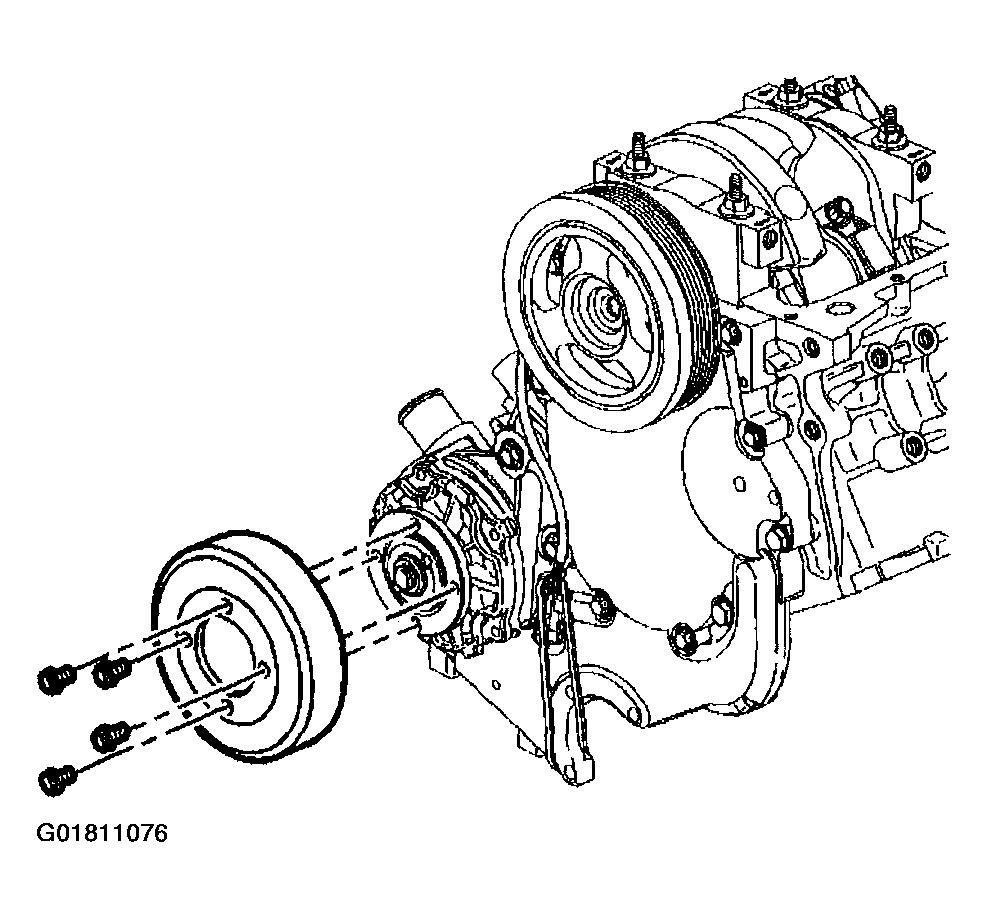

    Fig 1: Removing Water Pump Pulley
    G01811076Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump bolts.
  4. Remove the water pump.
  5. Remove the water pump gasket.

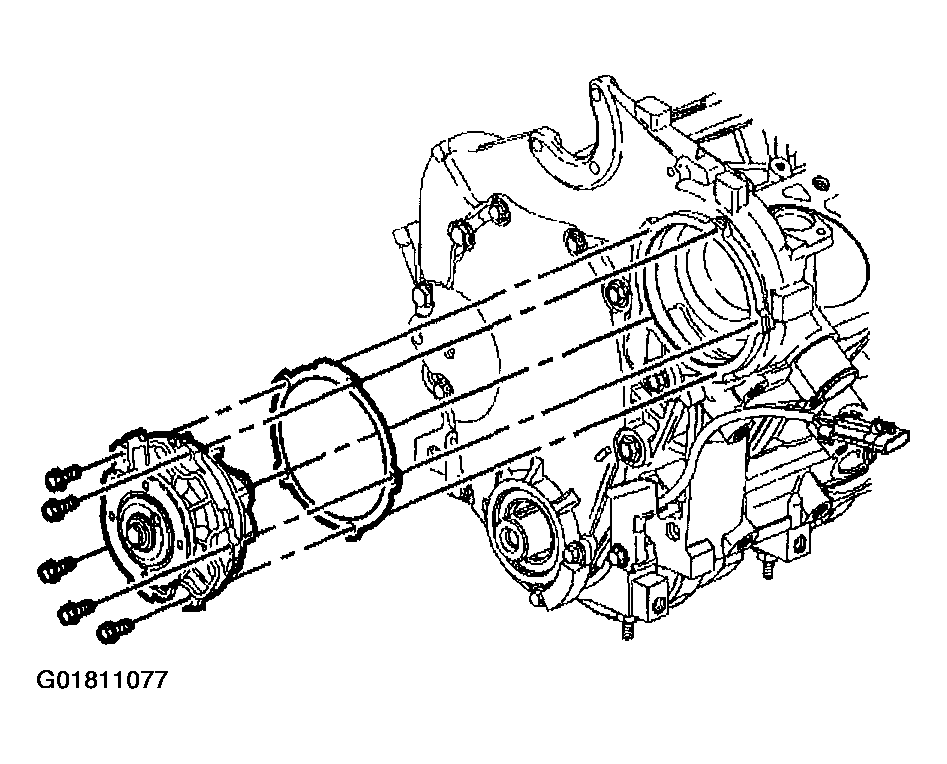

Fig 2: Removing Water Pump & Gasket
G01811077Courtesy of GENERAL MOTORS CORP.
