Water Pump Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket.
  2. Install the water pump.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water pump bolts.

    Tighten

    Tighten the water pump bolts to 10 N.m (89 lb in).

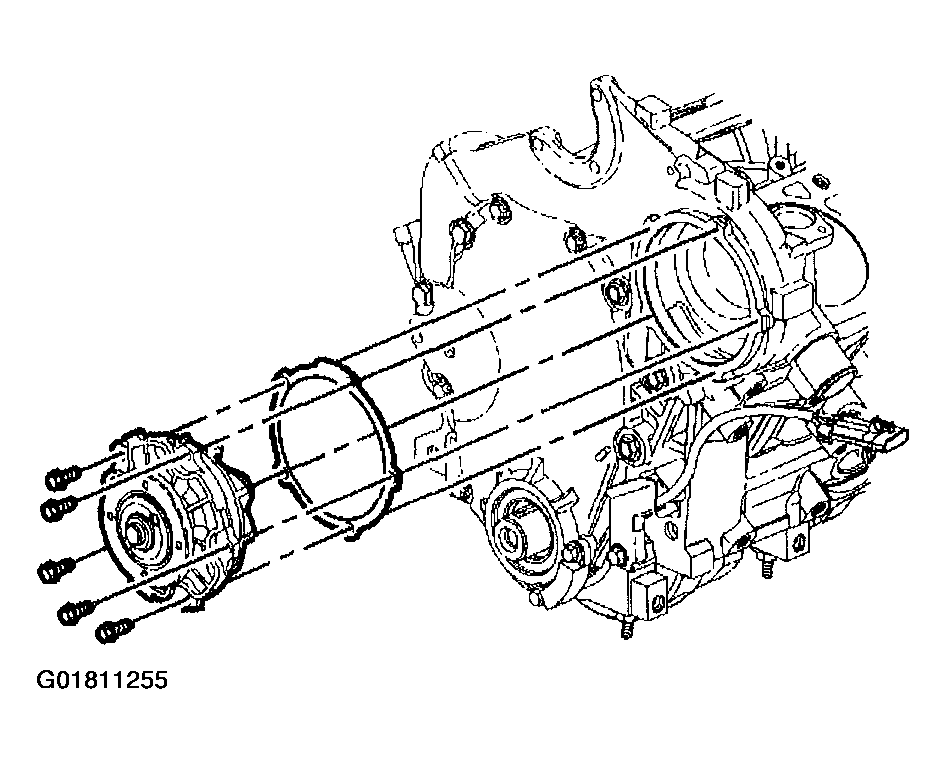

    4. Fig 1: Installing Water Pump & Bolts
    G01811255Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten

    Tighten the water pump pulley bolts to 25 N.m (18 lb ft).

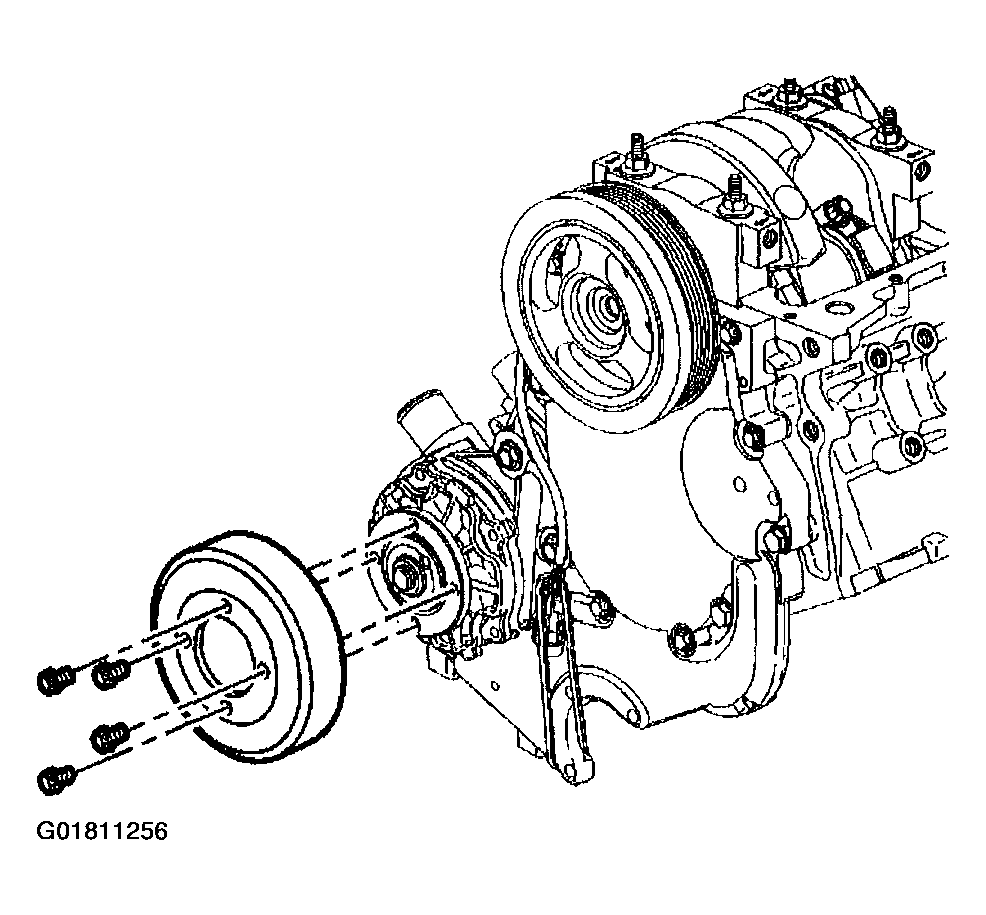

    Fig 2: Installing Water Pump Pulley & Bolts
    G01811256Courtesy of GENERAL MOTORS CORP.
