Water Outlet Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts.
  2. Remove the water outlet.

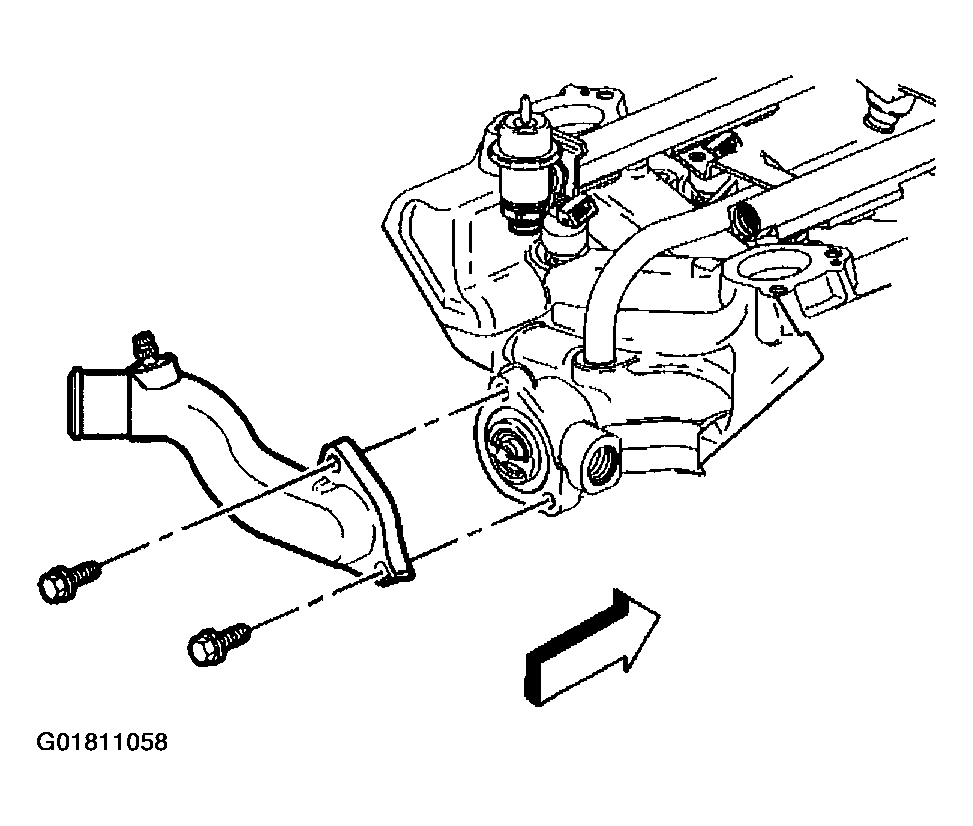

    Fig 1: Removing Water Outlet
    G01811058Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.

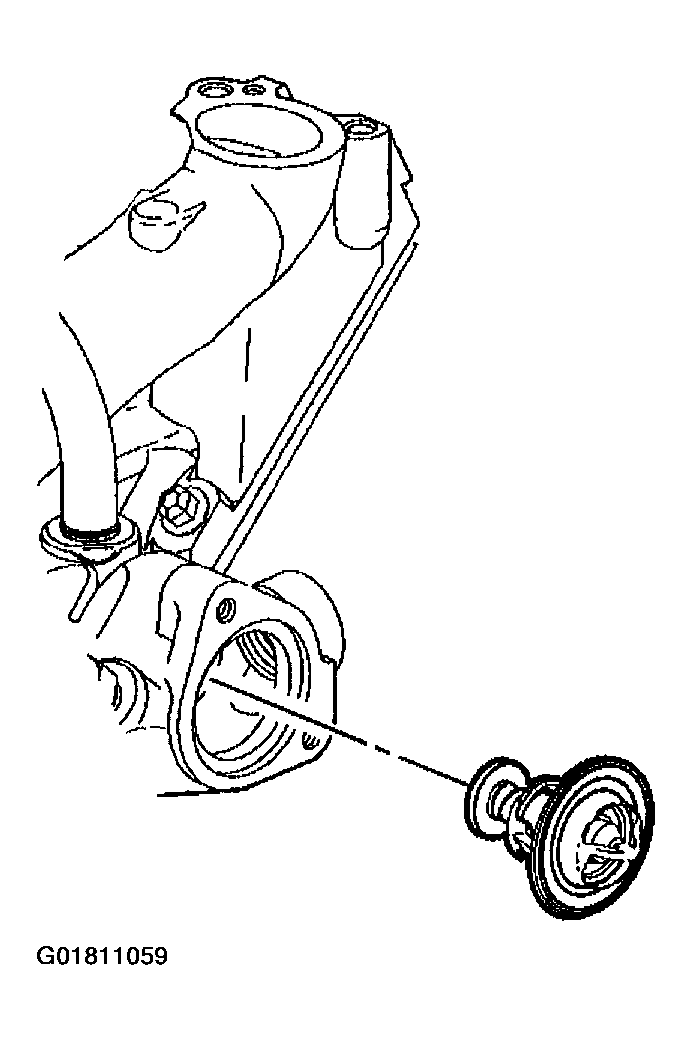

Fig 2: Removing Thermostat
G01811059Courtesy of GENERAL MOTORS CORP.
