Water Outlet Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat.

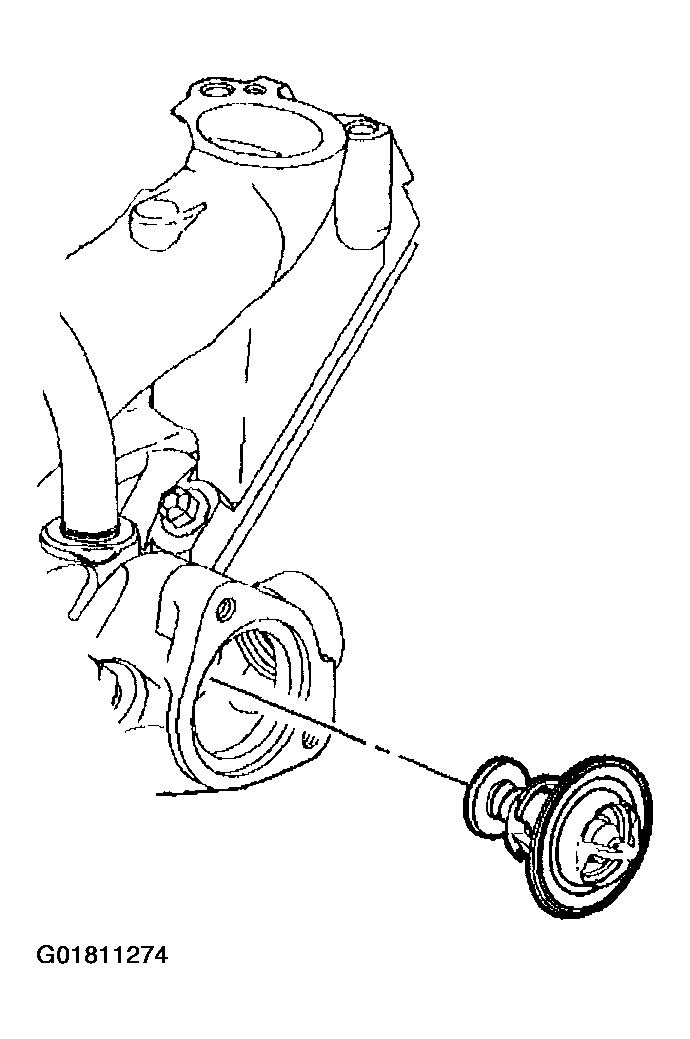

    2. Fig 1: Installing Thermostat
    G01811274Courtesy of GENERAL MOTORS CORP.
  2. Install the water outlet.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water outlet bolts.

    Tighten

    Tighten the water outlet bolts to 25 N.m (18 lb ft).

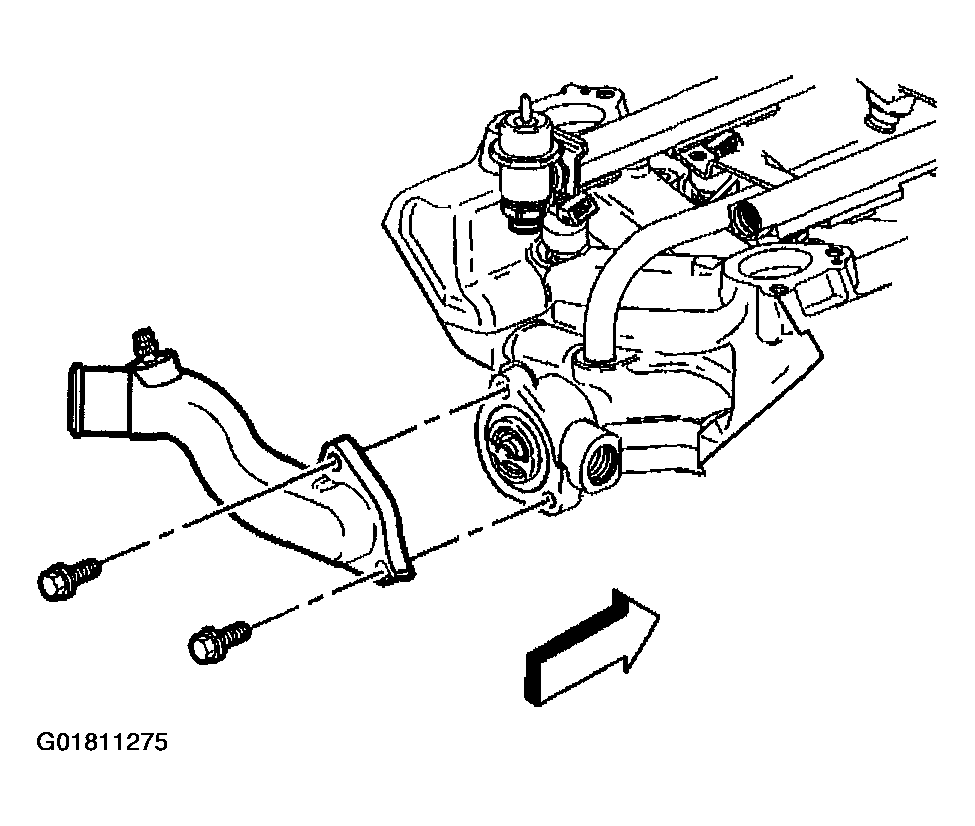

    4. Fig 2: Installing Water Outlet & Bolts
    G01811275Courtesy of GENERAL MOTORS CORP.
