Valve Rocker Arm Cover Removal - Left

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover and gasket.

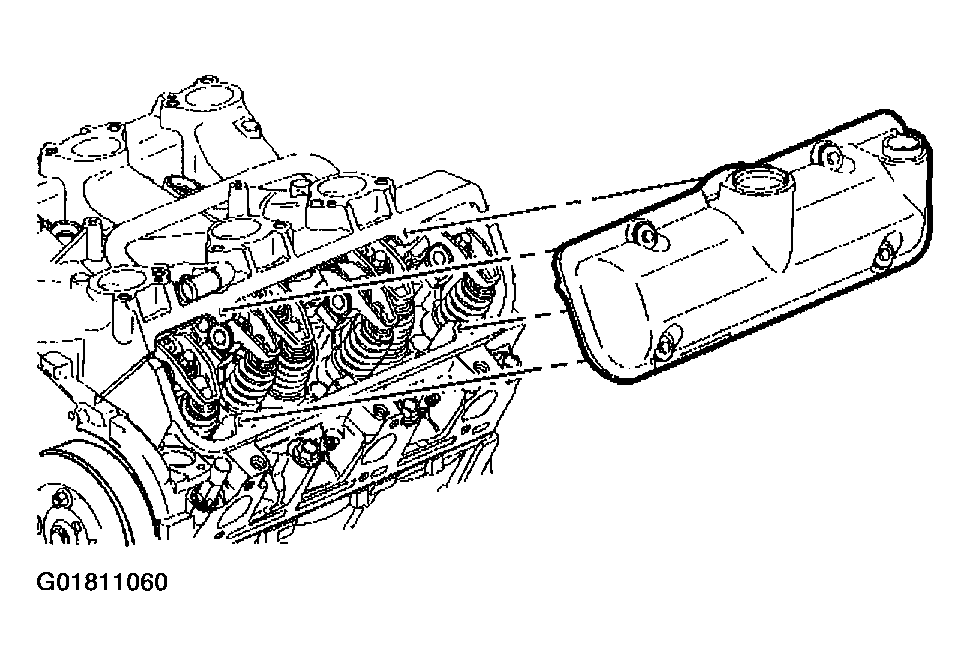

Fig 1: Removing Valve Rocker Arm Cover & Gasket
G01811060Courtesy of GENERAL MOTORS CORP.
