Timing Chain and Sprockets Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

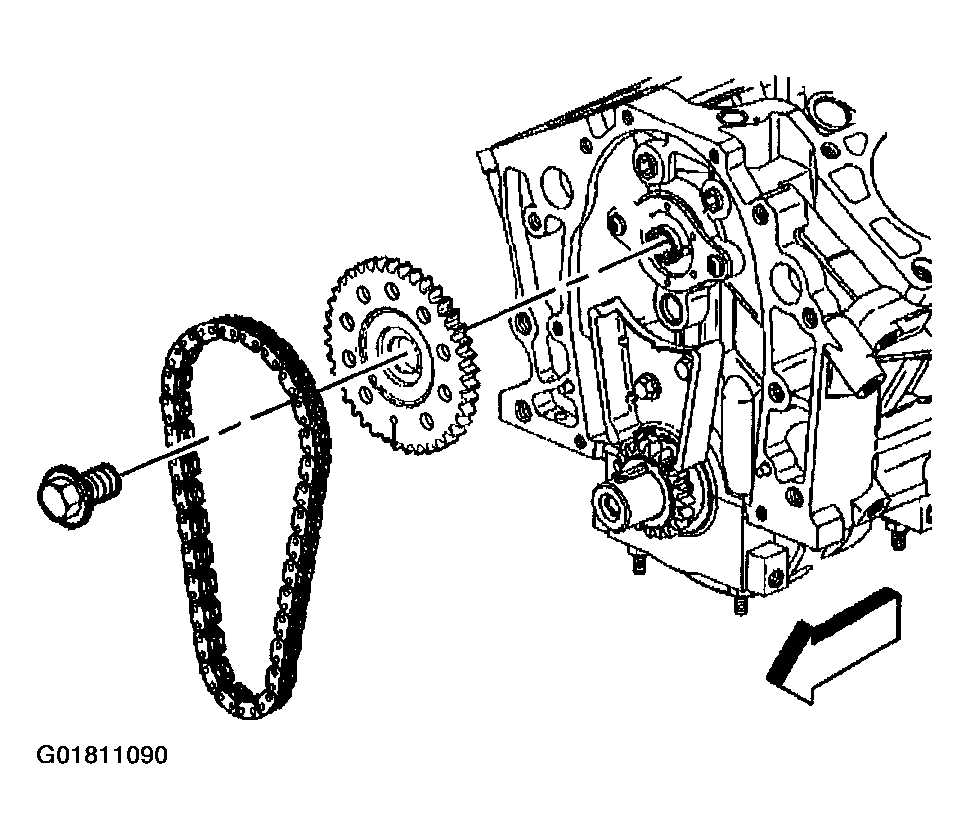

Remove the camshaft sprocket bolt.
Remove the camshaft sprocket and timing chain.

Fig 1: Removing Camshaft Sprocket & Timing Chain
Courtesy of GENERAL MOTORS CORP.

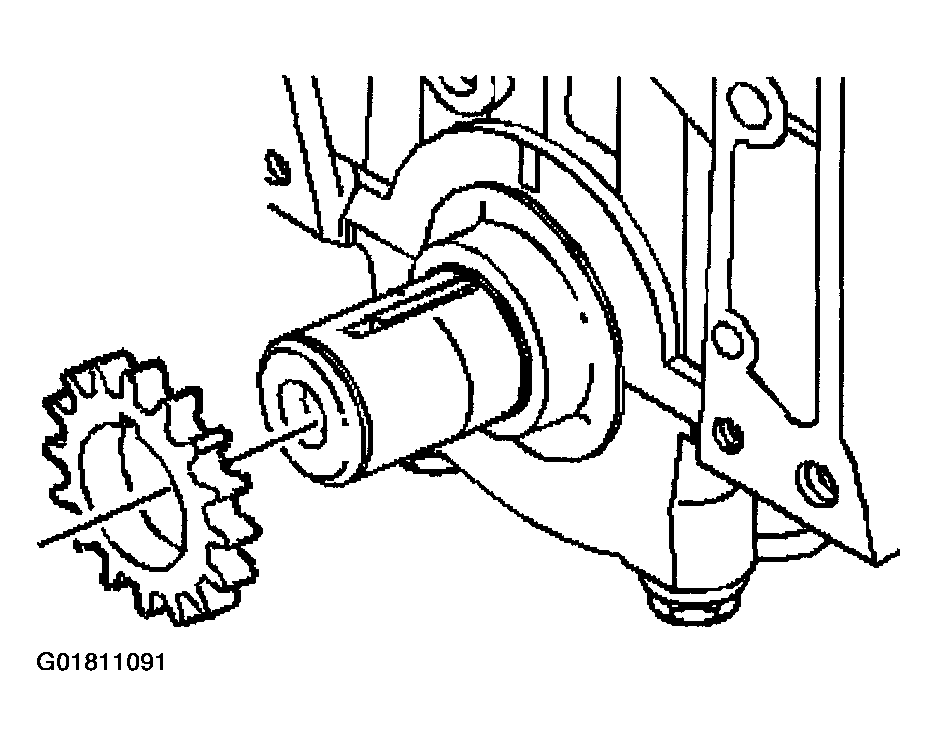

Remove the crankshaft sprocket.

Fig 2: Removing Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.

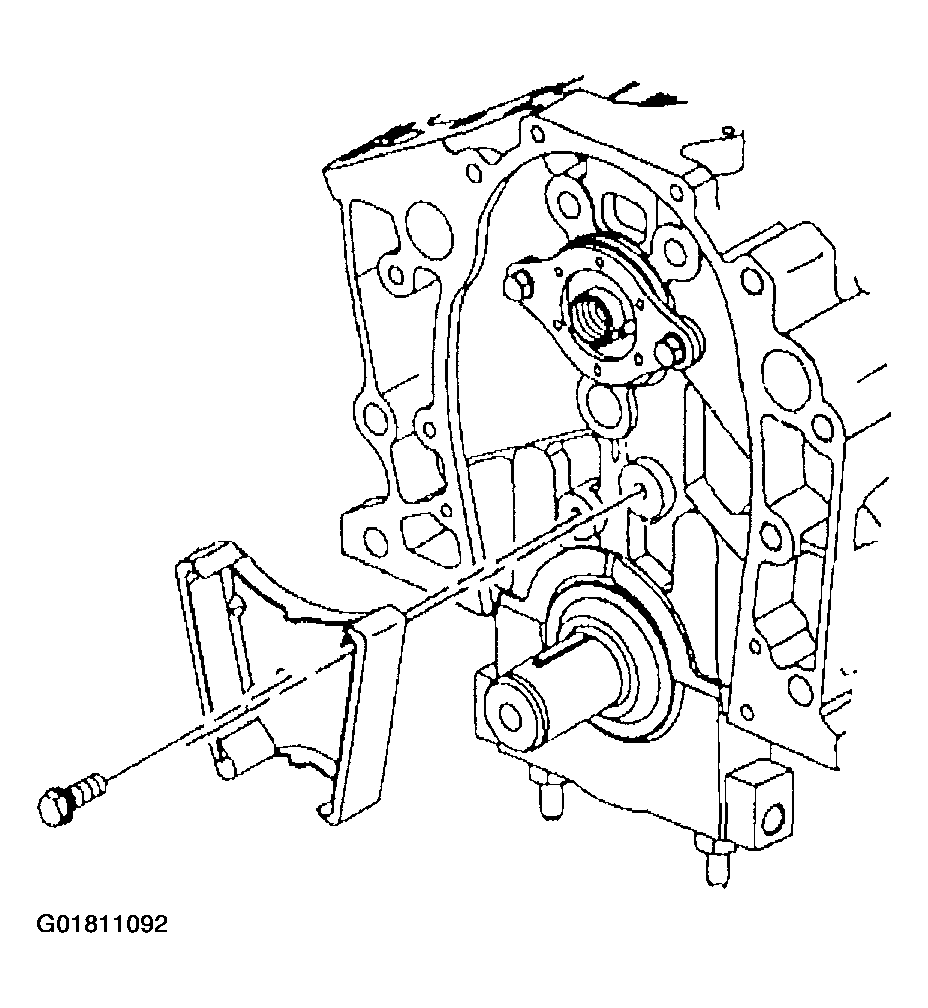

Remove the timing chain dampener bolts.
Remove the timing chain dampener.

Fig 3: Removing Timing Chain Dampener

Courtesy of GENERAL MOTORS CORP.
