Oil Pump Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the oil pump bolt.
Remove the oil pump and oil pump drive shaft.

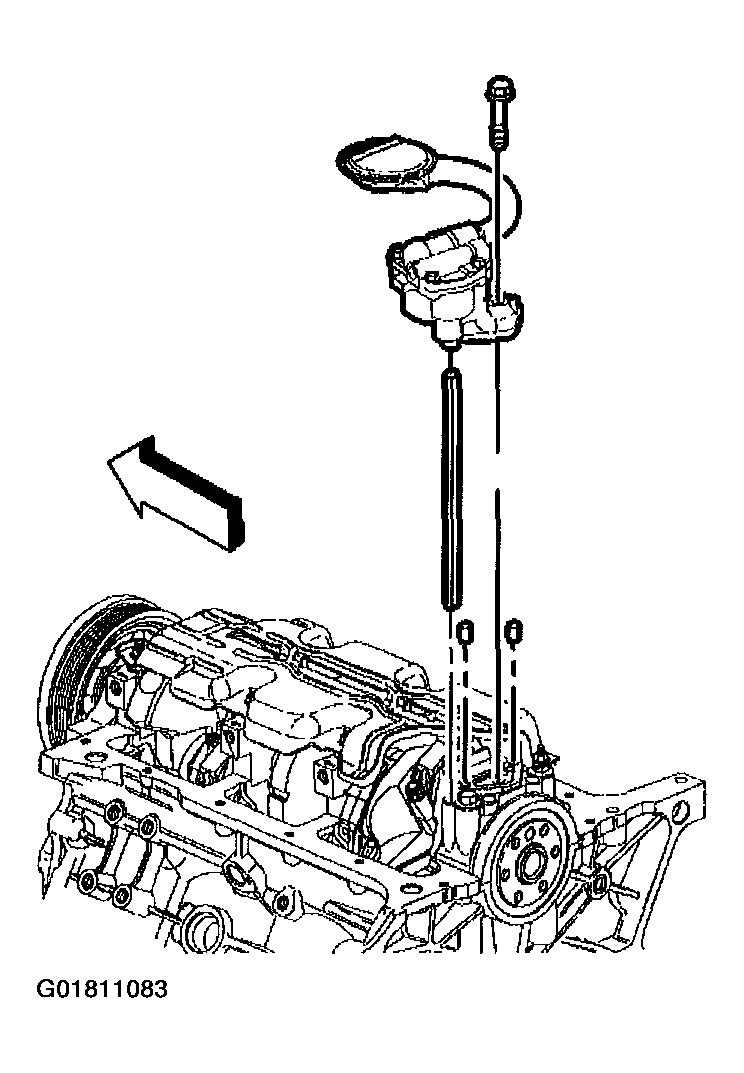

Fig 1: Removing Oil Pump
Courtesy of GENERAL MOTORS CORP.
Remove the crankshaft oil deflector nuts.
Remove the crankshaft oil deflector.

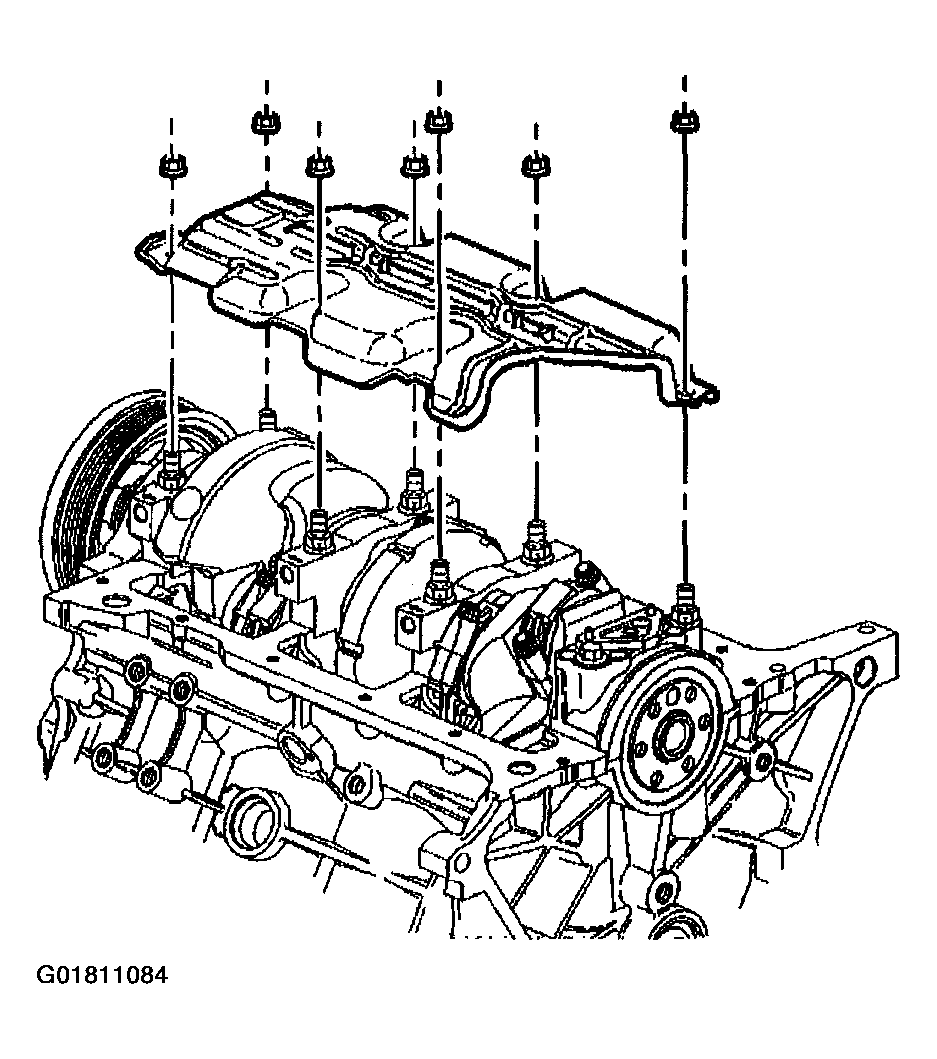

Fig 2: Removing Crankshaft Oil Deflector

Courtesy of GENERAL MOTORS CORP.
