Oil Pump Drive Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump drive clamp bolt.
  2. Remove the oil pump drive clamp.
  3. Remove the oil pump drive.

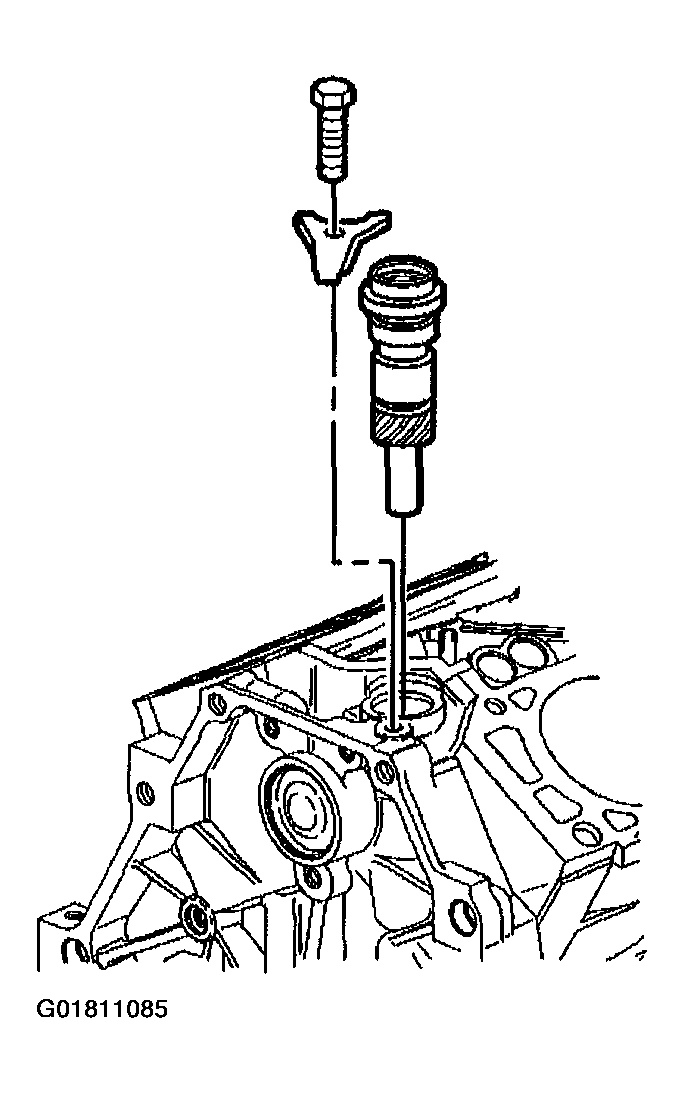

Fig 1: Removing Oil Pump Drive
G01811085Courtesy of GENERAL MOTORS CORP.
