Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level indicator and oil level indicator tube.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the oil level indicator tube bolt.

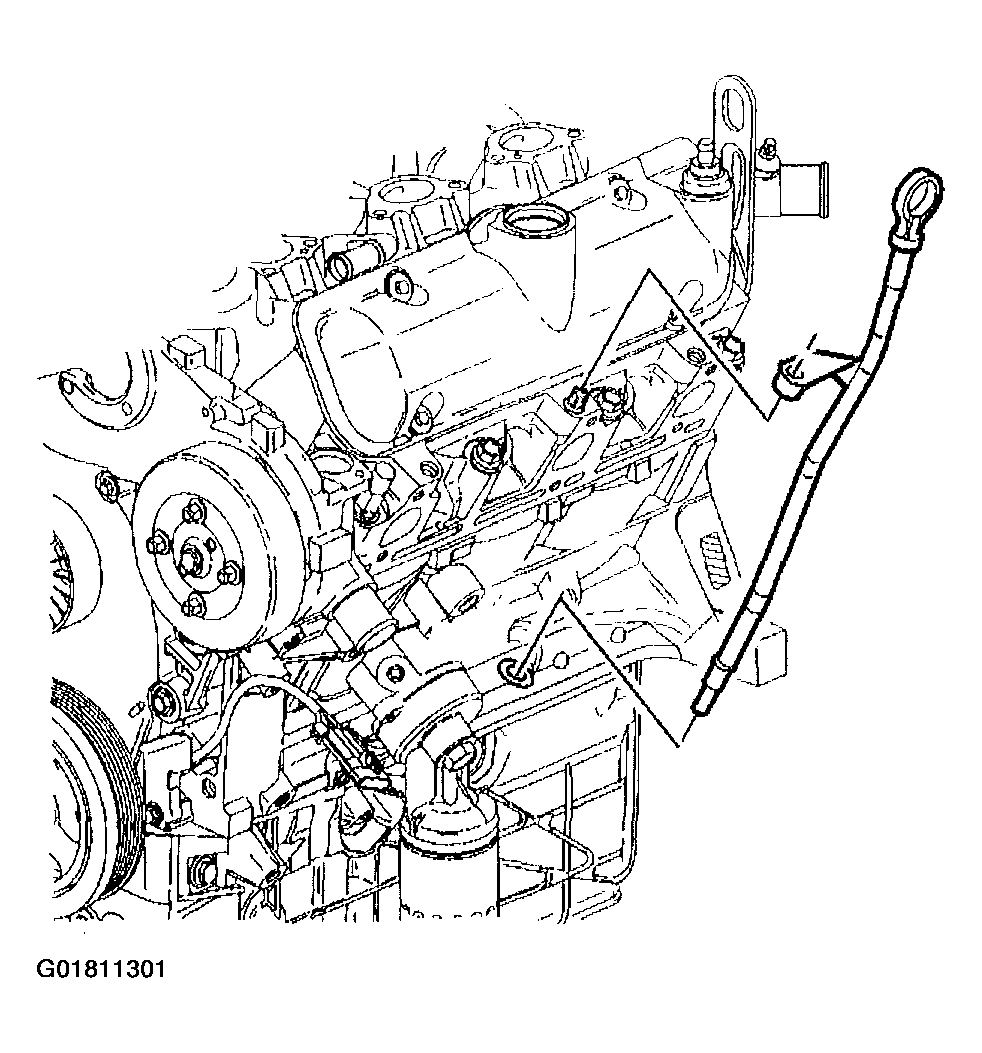

    Fig 1: Installing Oil Level Indicator & Oil Level Indicator Tube
    G01811301Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  3. Install the thermostat bypass pipe.
  4. Install the thermostat bypass pipe hose.

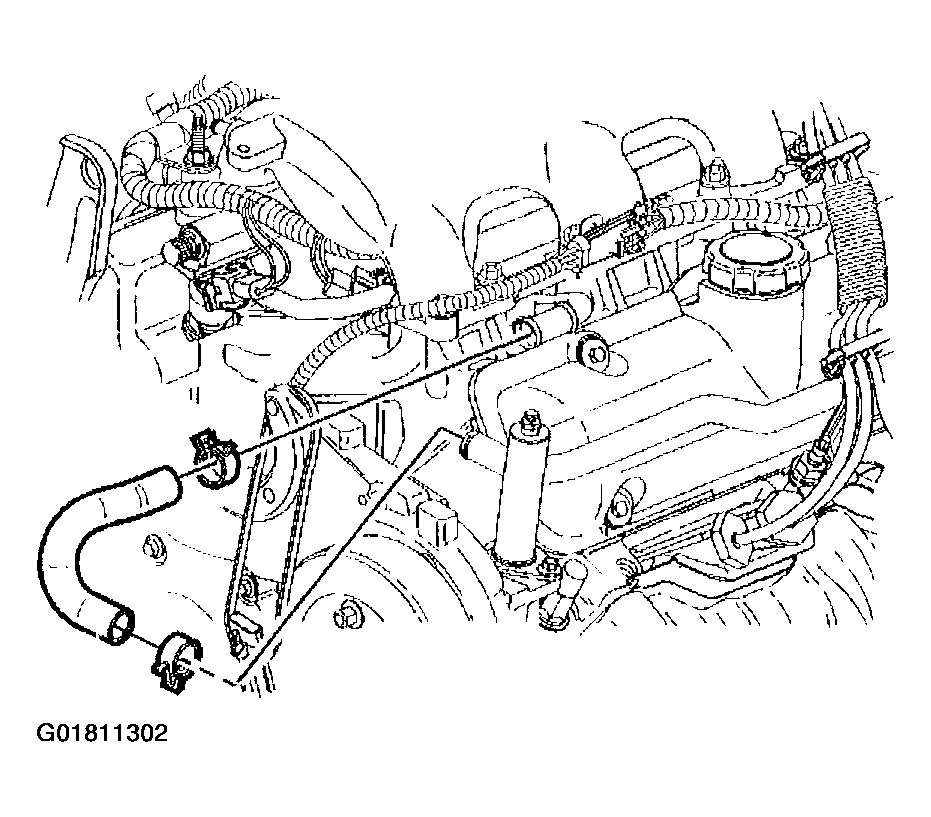

    Fig 2: Installing Thermostat Bypass Pipe & Hose
    G01811302Courtesy of GENERAL MOTORS CORP.
  5. Install the thermostat bypass pipe hose clamps (5).
  6. Install the thermostat bypass pipe to engine front cover bolt (4).

    Tighten

    Tighten the thermostat bypass pipe to engine front cover bolt to 11 N.m (98 lb in).

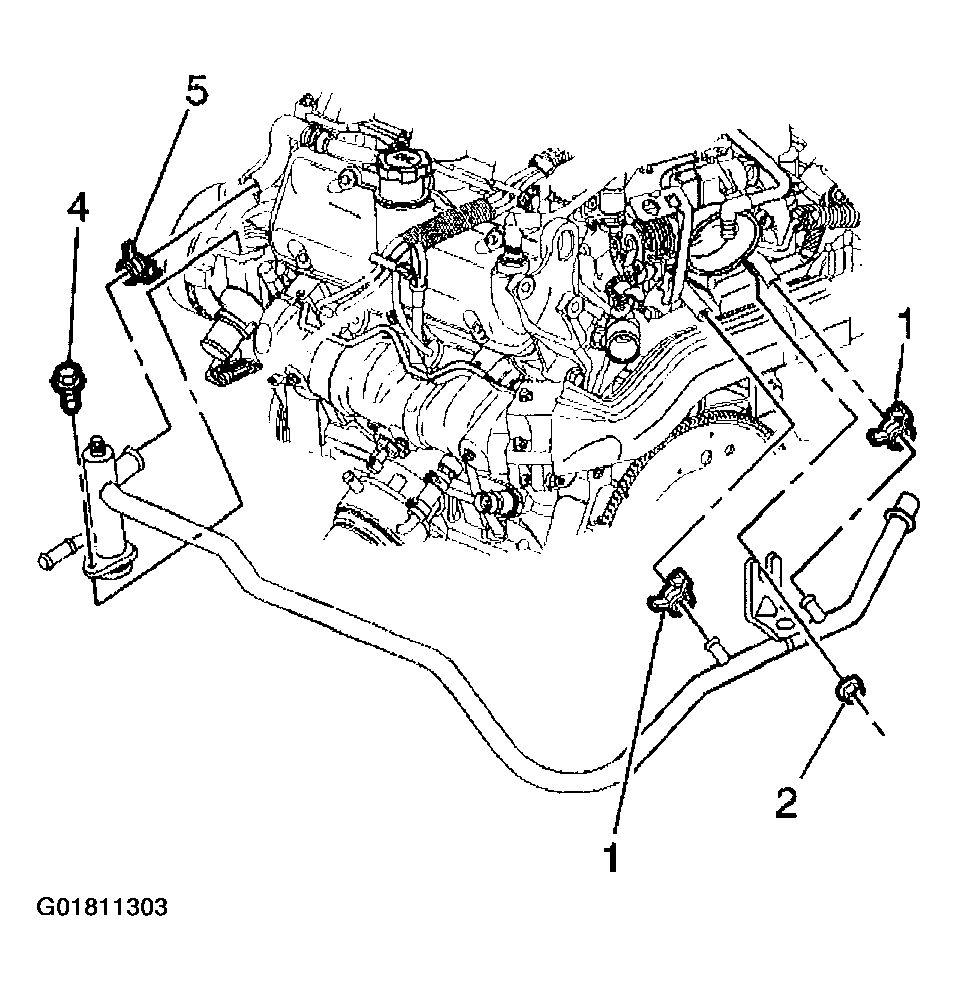

    Fig 3: Installing Thermostat Bypass Pipe
    G01811303Courtesy of GENERAL MOTORS CORP.
  7. Install the thermostat bypass pipe to throttle body hose clamps.
  8. Install the thermostat bypass pipe to throttle body nut.

    Tighten

    Tighten the thermostat bypass pipe to throttle body nut to 25 N.m (18 lb ft).

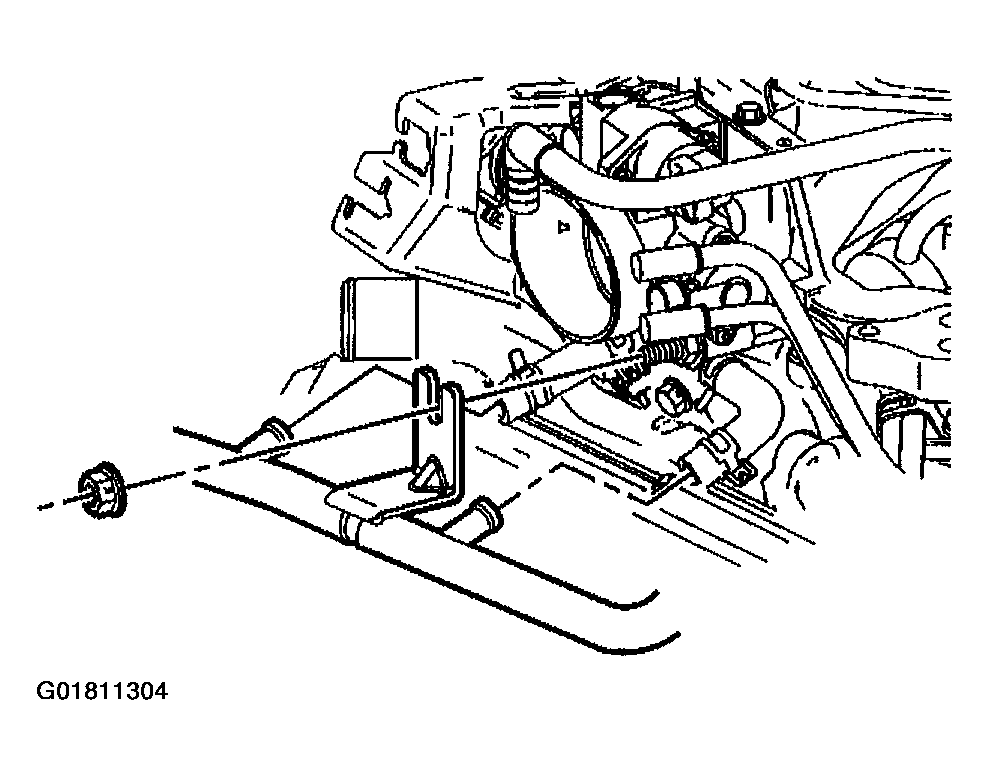

Fig 4: Installing Thermostat Bypass Pipe To Throttle Body Nut
G01811304Courtesy of GENERAL MOTORS CORP.
