Intake Manifold Removal - Lower

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel feed and return pipe retaining clip bolt.
  2. Remove the fuel feed and return pipe retaining clip.

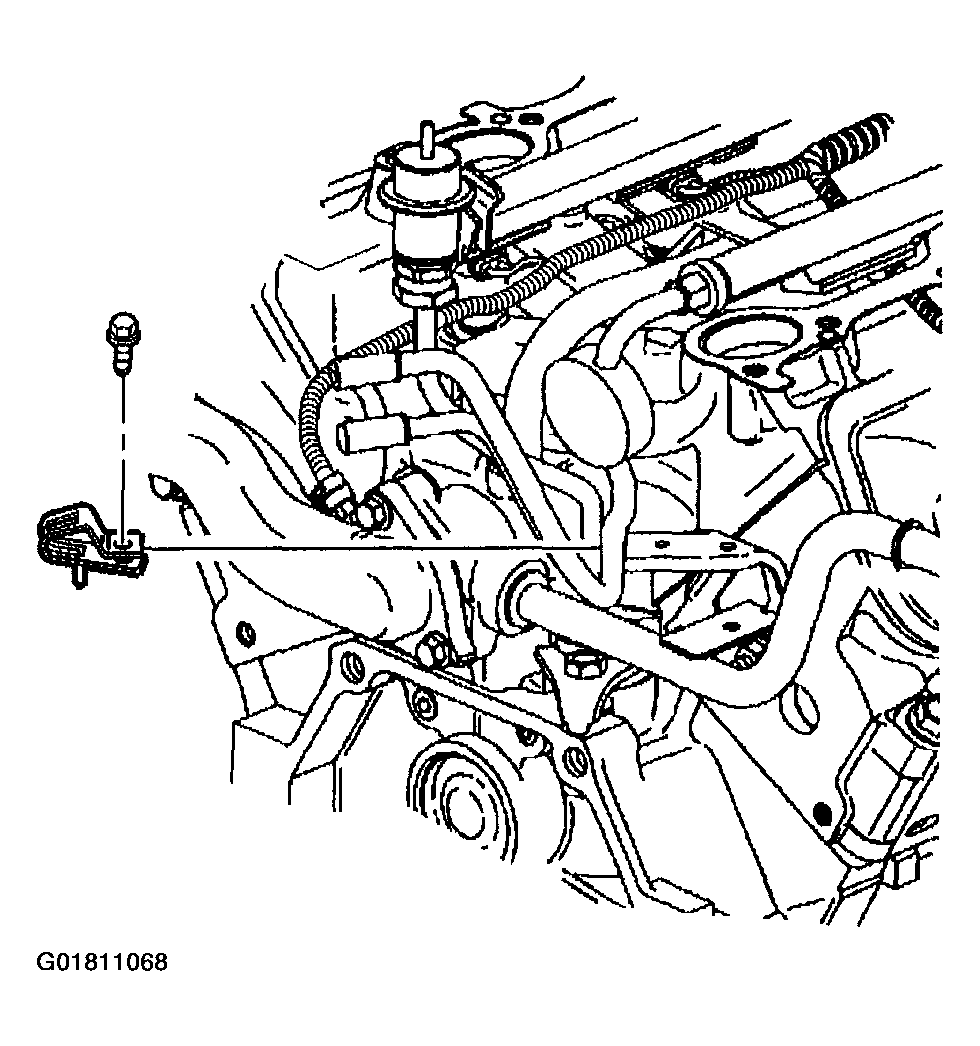

    Fig 1: Removing Fuel Feed & Return Pipe Retaining Clip
    G01811068Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector rail bolts.
  4. Remove the fuel injector rail assembly.

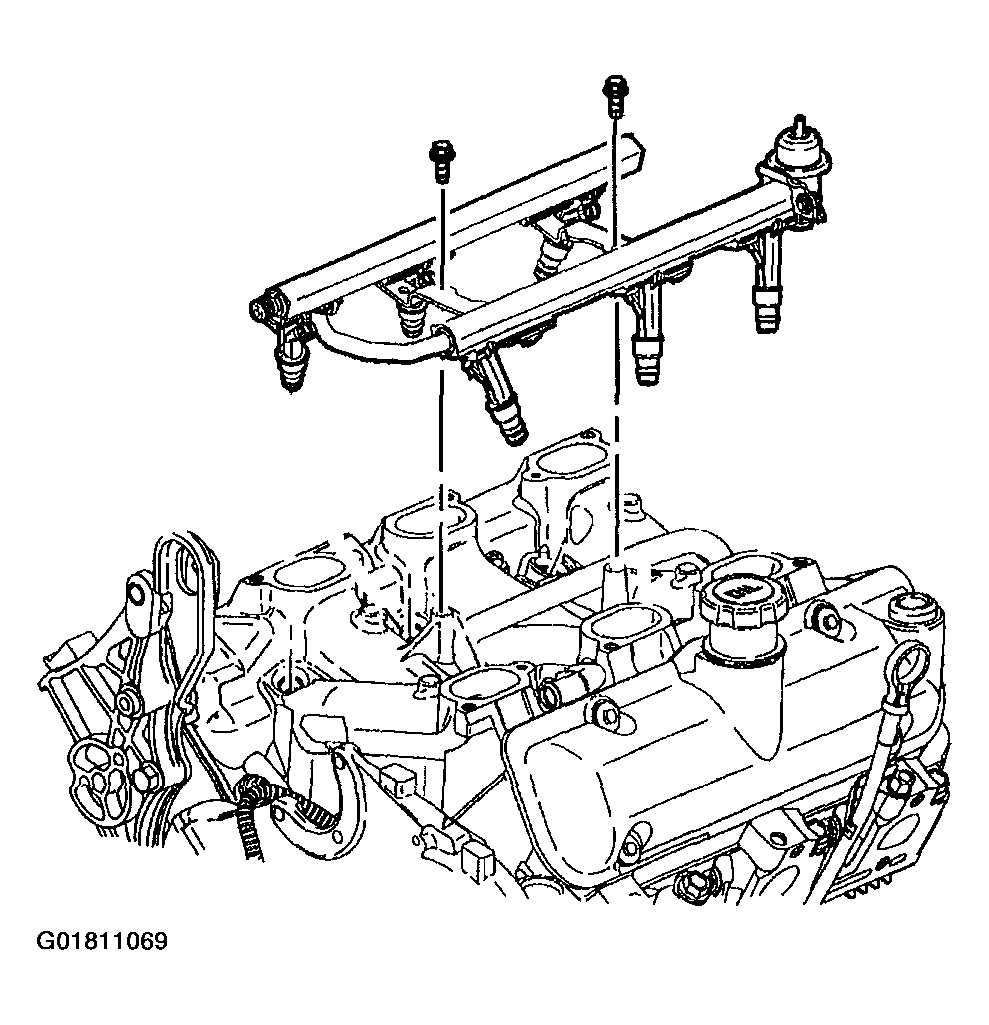

    Fig 2: Removing Fuel Injector Rail Assembly
    G01811069Courtesy of GENERAL MOTORS CORP.
  5. Remove the heater inlet pipe nut.
  6. Remove the heater inlet pipe.

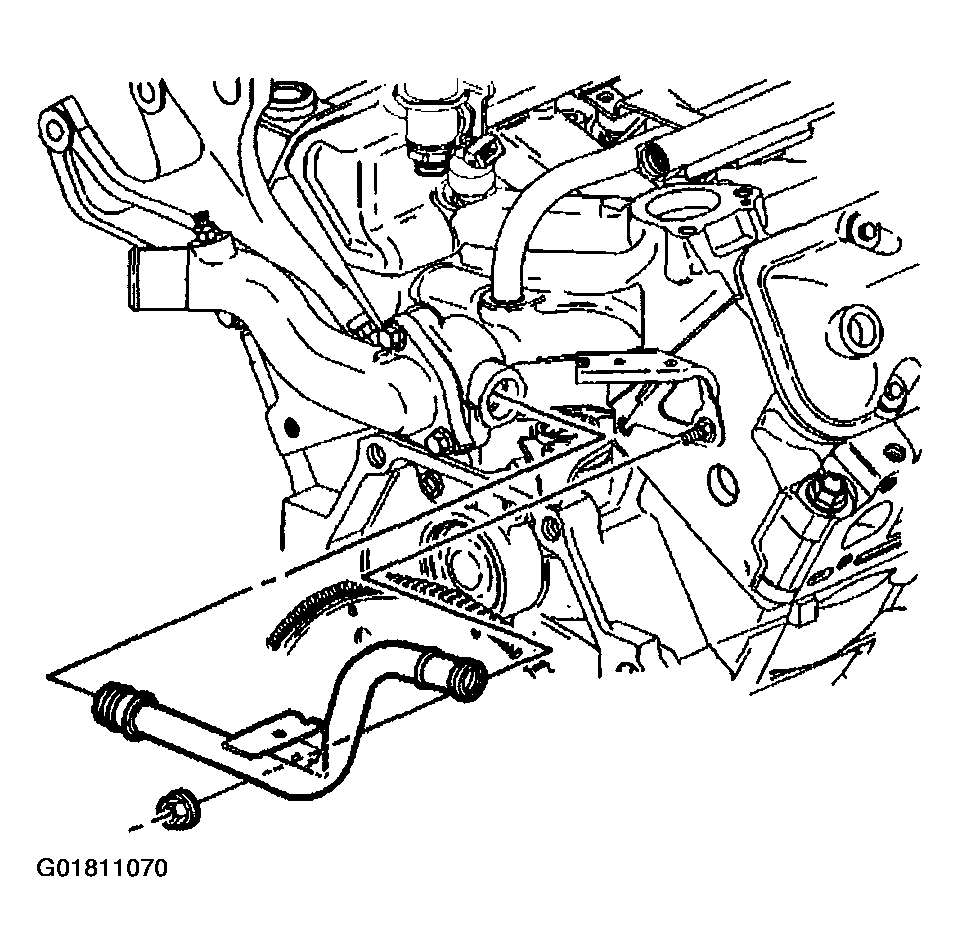

    Fig 3: Removing Heater Inlet Pipe
    G01811070Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower intake manifold bolts.
  8. Remove the lower intake manifold.

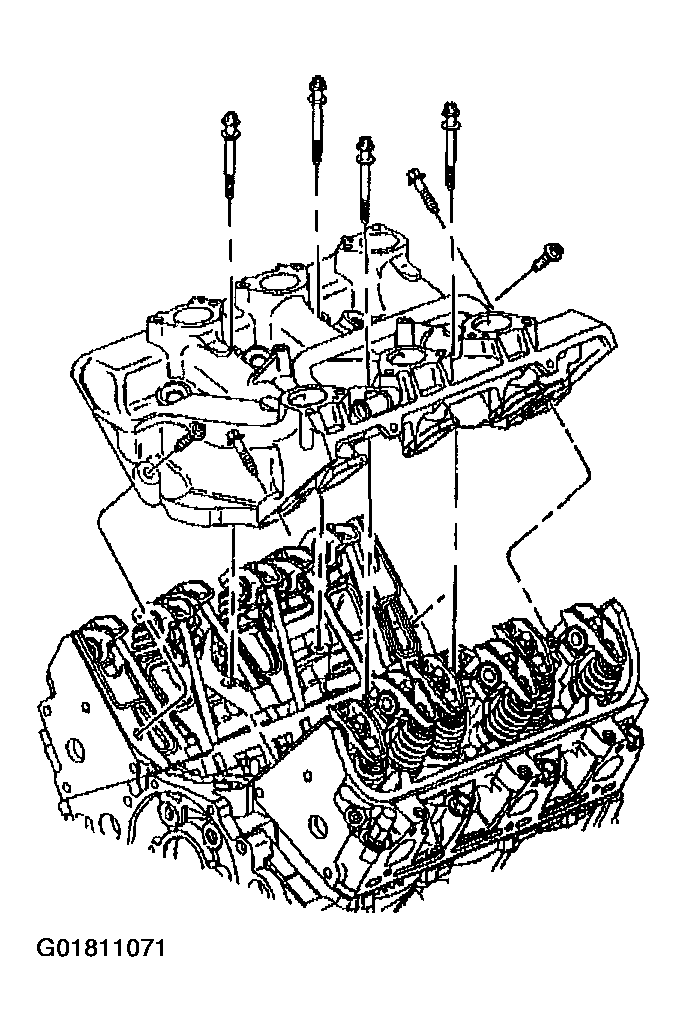

Fig 4: Removing Lower Intake Manifold
G01811071Courtesy of GENERAL MOTORS CORP.
