Intake Manifold Installation - Lower

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing lower intake manifold gasket, a revised intake manifold gasket has been introduced by manufacturer. This new design gasket helps resolve issues related to intake manifold oil/coolant leaks. The gasket requires a revised torque specification and procedure in addition to the use of NEW revised intake manifold bolts. Please review TSB ENGINE OIL OR COOLANT LEAK (INSTALL NEW INTAKE MANIFOLD GASKET) for complete information.
  1. Apply sealer GM P/N United States 12378479, GM P/N Canada 10953472 or the equivalent at the engine block-to-lower intake manifold mating surface.

    Ensure that the bead meets the following conditions:

    • 2.0-3.0 mm (0.08-0.12 in) wide
    • 3.0-5.0 mm (0.12-0.20 in) thick
  2. Install the lower intake manifold.

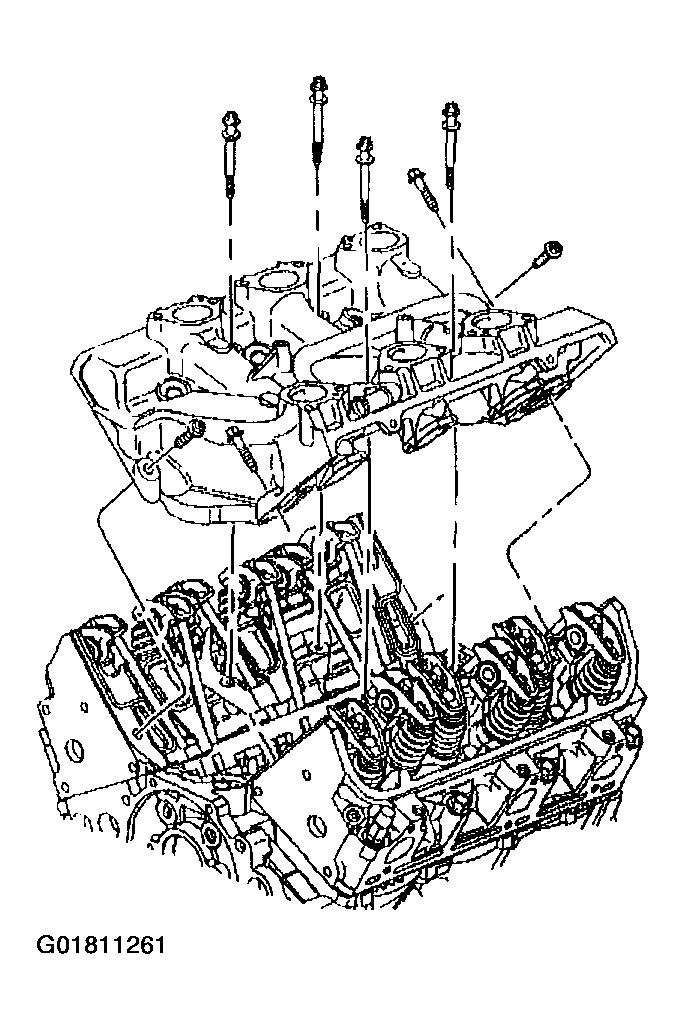

    Fig 1: Installing Lower Intake Manifold
    G01811261Courtesy of GENERAL MOTORS CORP.
    CAUTION: Failure to tighten vertical bolts before the diagonal bolts may cause an oil leak.
  3. Apply sealer GM P/N United States 12345382, GM P/N Canada 10953489 or the equivalent to the lower intake manifold bolt threads.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the lower intake manifold bolts.

    Tighten See TSB For Revised Lower Intake Torque

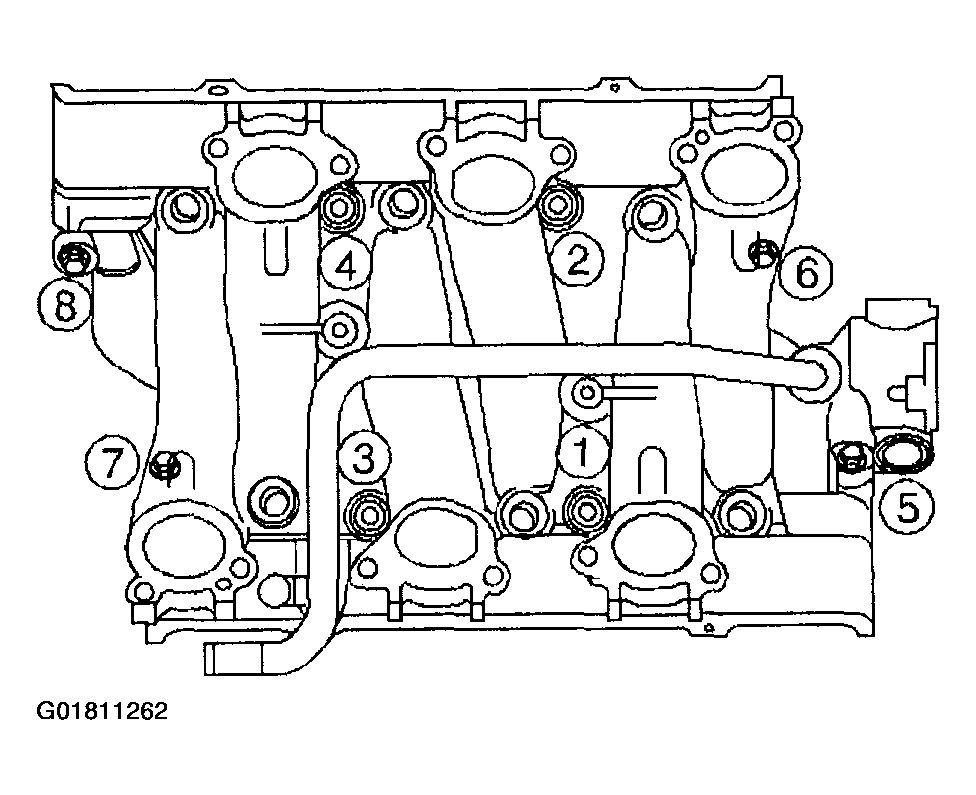

    Fig 2: Installing Lower Intake Manifold Bolts
    G01811262Courtesy of GENERAL MOTORS CORP.
  5. Install the heater inlet pipe.
  6. Install the heater inlet pipe nut.

    Tighten

    Tighten the heater inlet pipe nut to 25 N.m (18 lb ft).

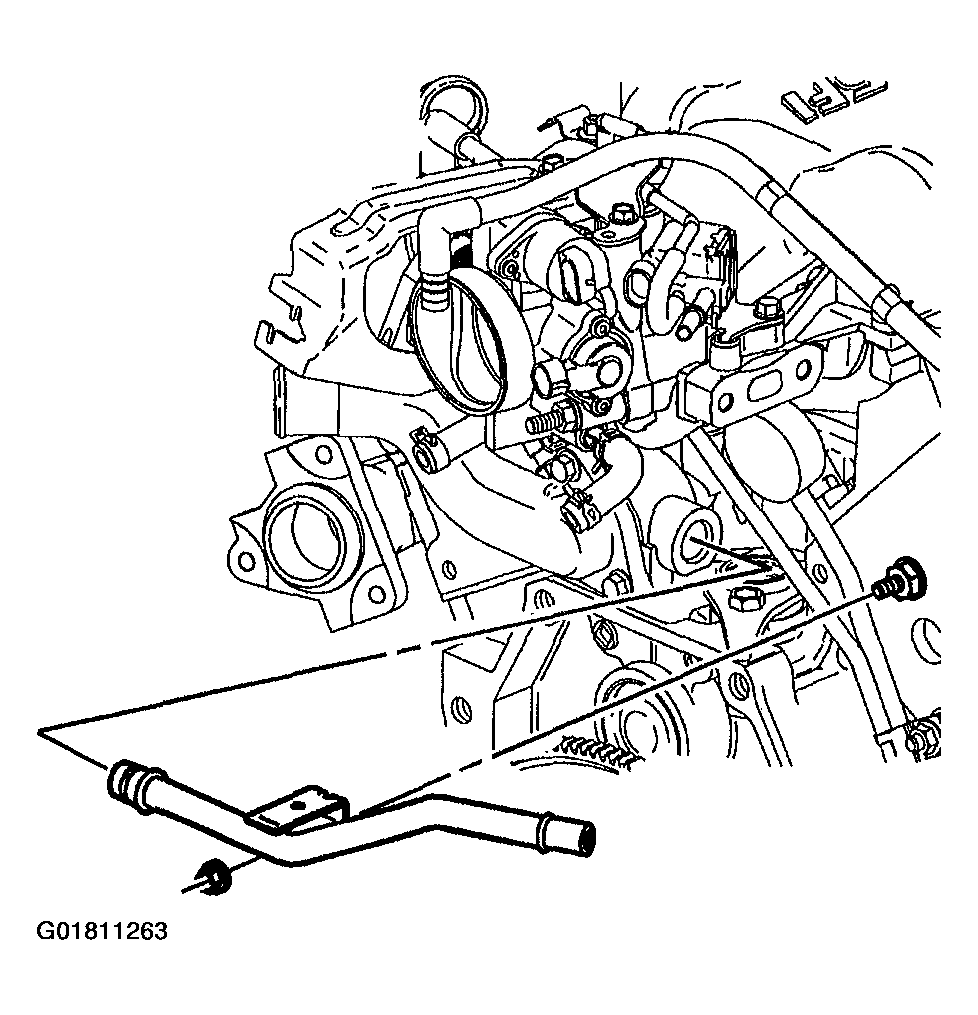

    Fig 3: Installing Heater Inlet Pipe
    G01811263Courtesy of GENERAL MOTORS CORP.

    Important  : Do not press on the fuel pressure regulator valve when installing the fuel injector rail assembly.

  7. Install the fuel injector rail assembly.
    1. 7.1. Install the fuel injector O-rings using GM P/N United States 12345616,

      GM P/N Canada 993182 or the equivalent.

    2. 7.2. Install the injector nozzles into the lower intake manifold injector bores.
    3. 7.3. Press on the injector rail using the palms of both hands until the injectors are fully seated.
  8. Install the fuel injector rail bolts.

    Tighten

    Tighten the fuel injector rail bolts to 10 N.m (89 lb in).

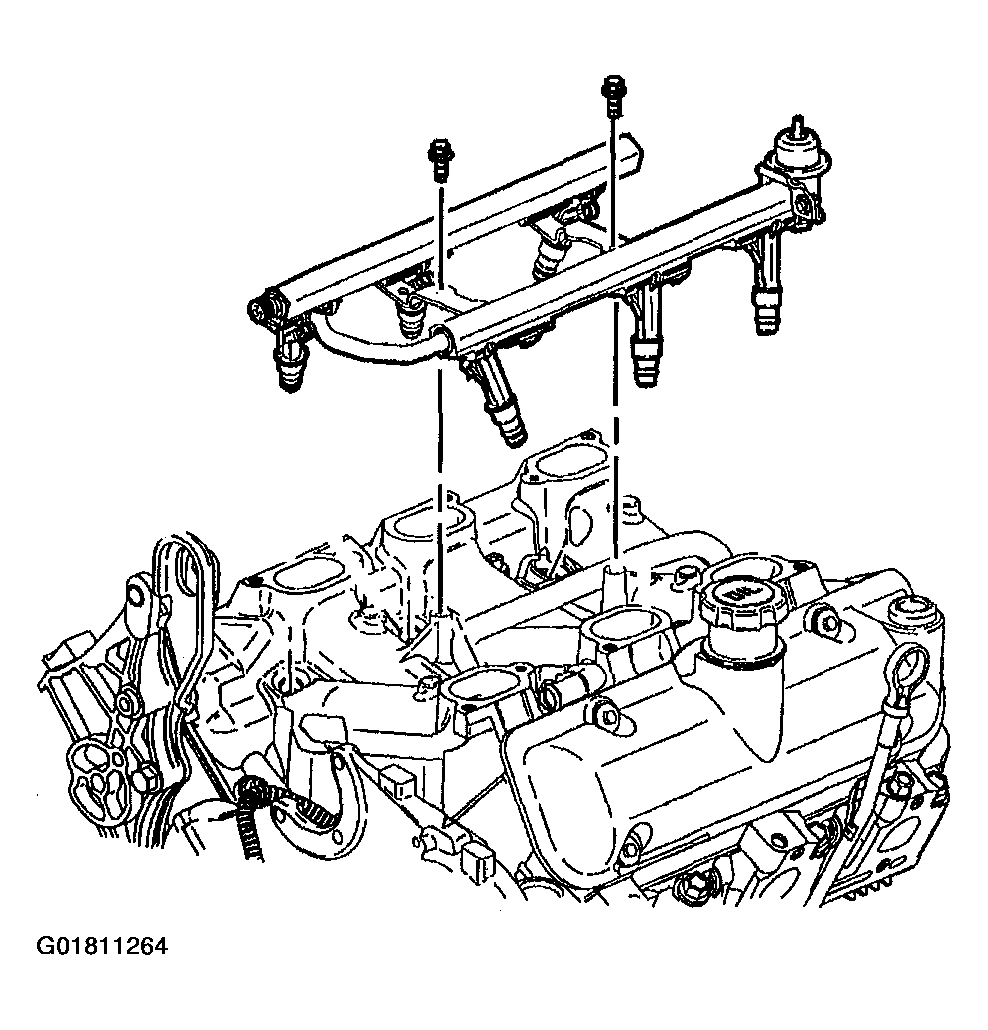

  9. Fig 4: Installing Fuel Injector Rail
    G01811264Courtesy of GENERAL MOTORS CORP.
  10. Install the fuel feed and return pipe retaining clip.
  11. Install the fuel feed and return pipe retaining clip bolt.

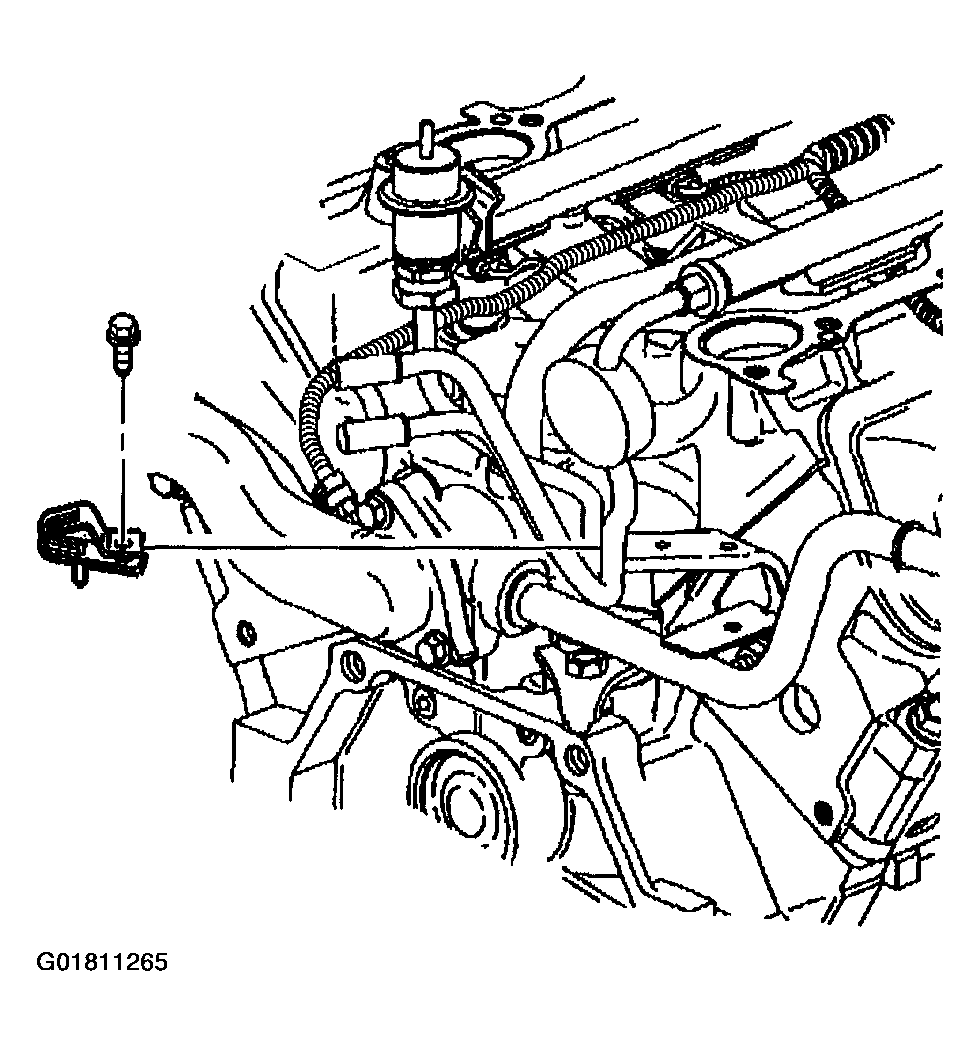

    Fig 5: Installing Fuel Feed & Return Pipe Retaining Clip
    G01811265Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the fuel feed and return pipe retaining clip bolt to 8 N.m (71 lb in).
