Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exhaust manifold heat shield bolts.
Remove the exhaust manifold heat shield.

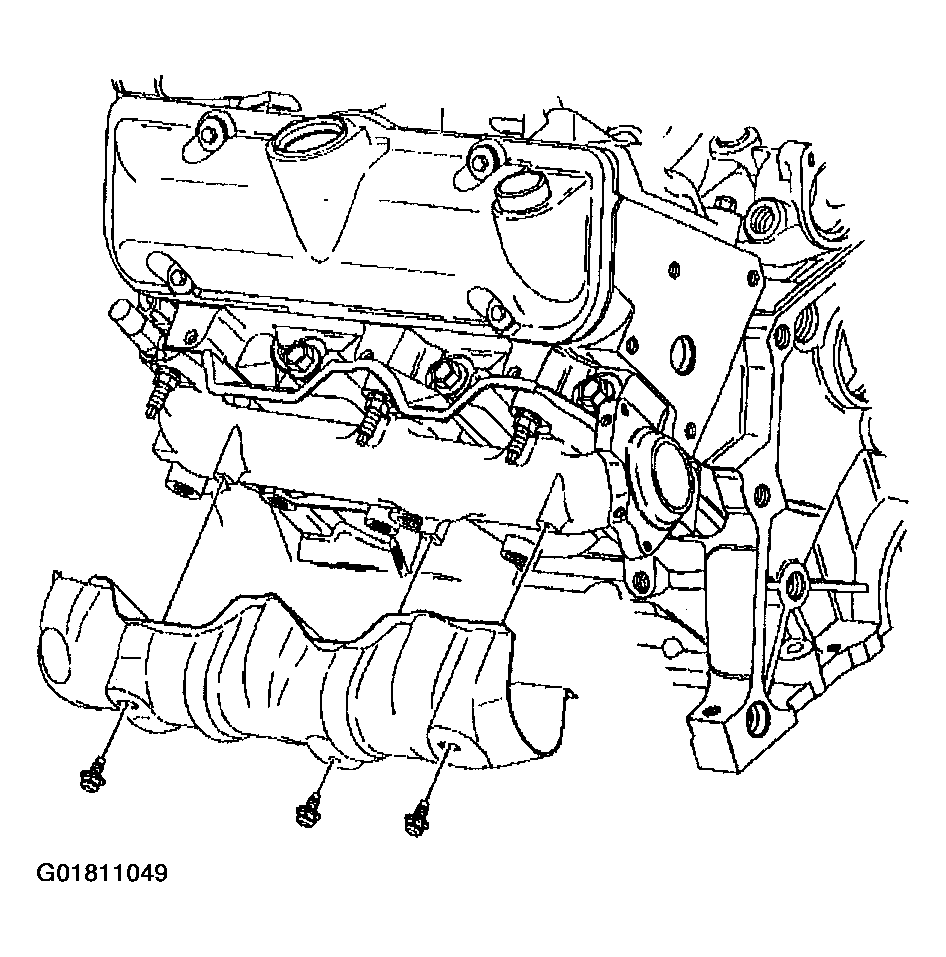

Fig 1: Removing Exhaust Manifold Heat Shield & Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the exhaust manifold nuts.
Remove the exhaust manifold.
Remove the exhaust manifold gasket.
Remove the exhaust studs, if required.

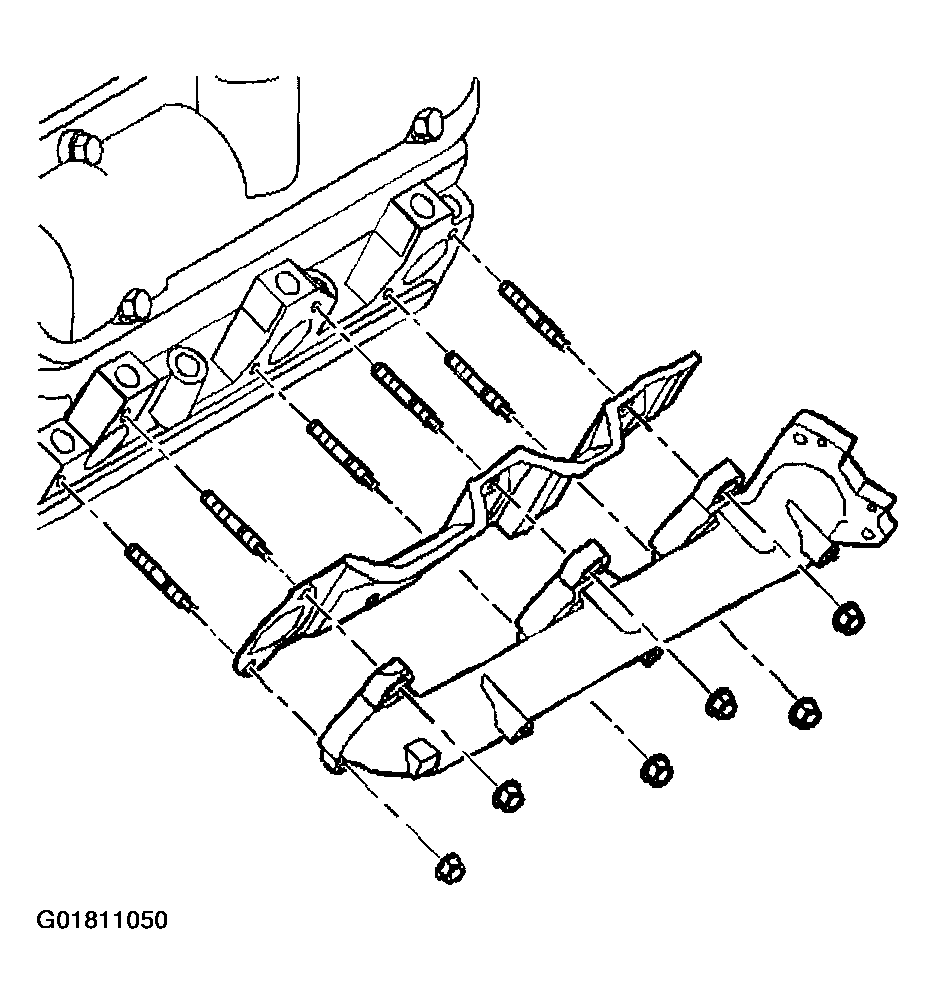

Fig 2: Removing Exhaust Manifold & Gasket

Courtesy of GENERAL MOTORS CORP.
