Engine Mount Support and Strut Bracket Removal

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount support and strut bracket bolts (1-3).
  2. Remove the engine mount support and strut bracket.

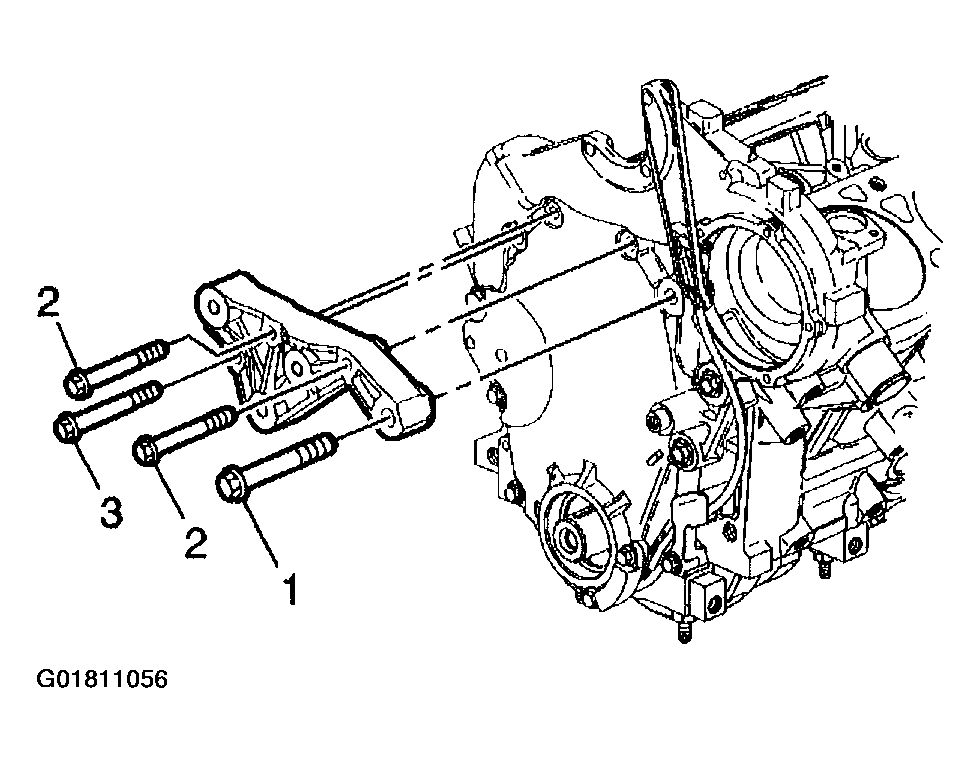

Fig 1: Removing Engine Mount Support
G01811056Courtesy of GENERAL MOTORS CORP.
