Engine Mount Support and Strut Bracket Installation

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount support.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount support bolts.

    Tighten

    1. 2.1. Tighten the engine mount support bolt (1) to 55 N.m (41 lb ft).
    2. 2.2. Tighten the engine mount support bolts (2) to 27 N.m (20 lb ft).
    3. 2.3. Tighten the engine mount support bolt (3) to 55 N.m (41 lb ft).

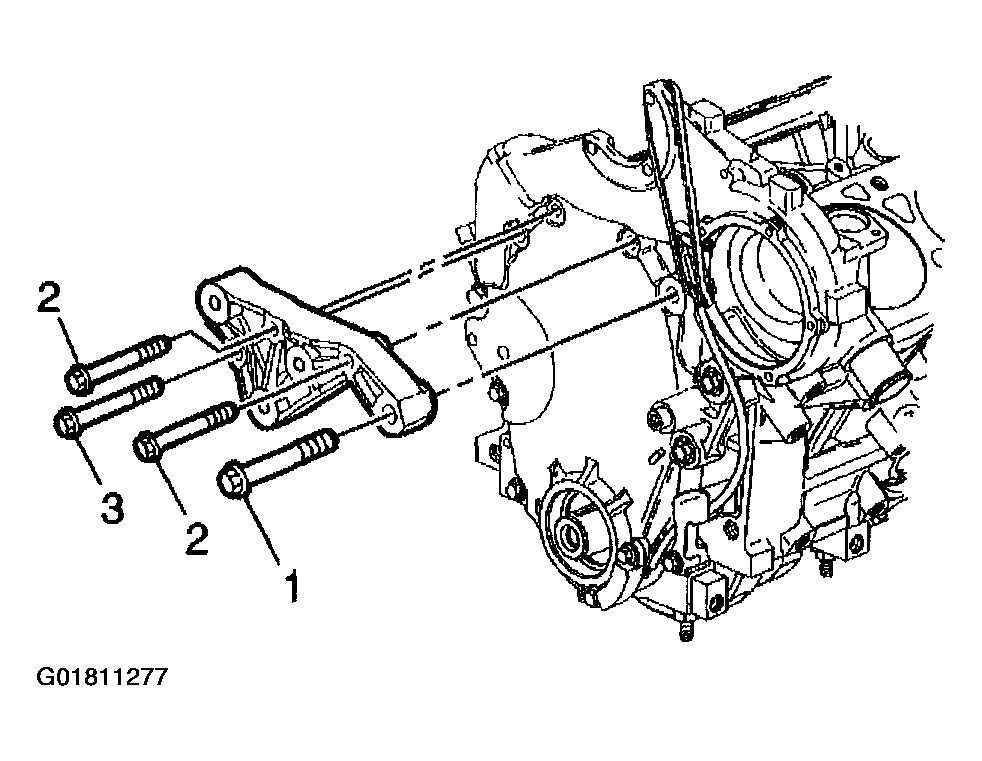

Fig 1: Installing Engine Mount Support
G01811277Courtesy of GENERAL MOTORS CORP.
